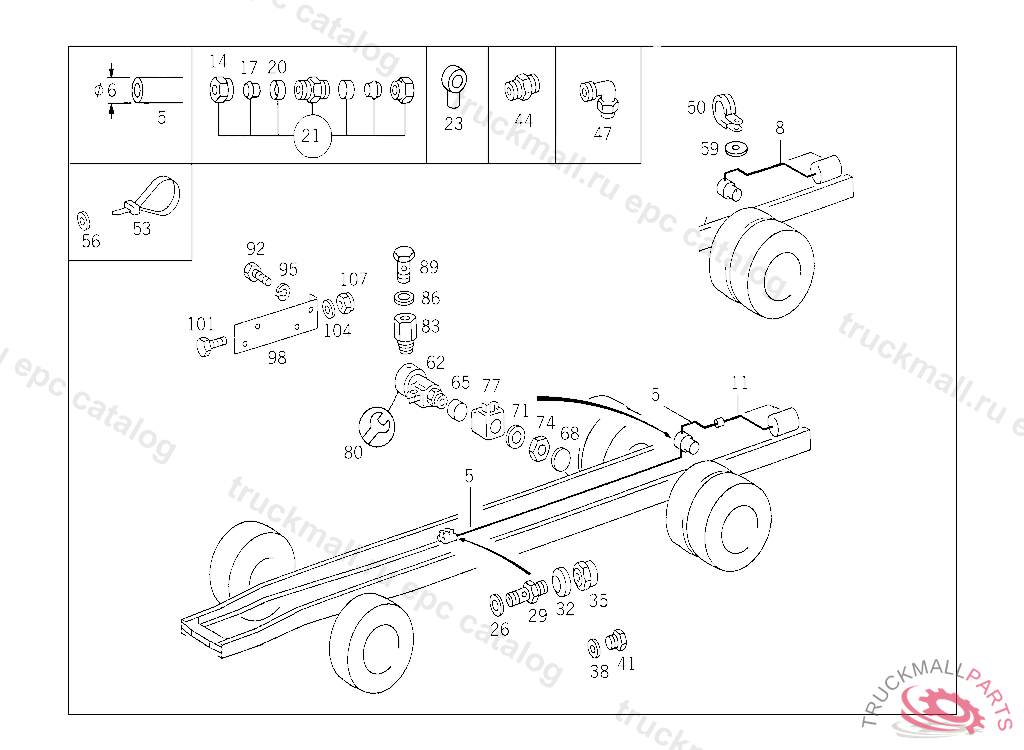

Поз.
Артикул
Описание
5
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
14
UNION NUT
17
GLAND , Replaced By: A0019901667
20
SLEEVE LEAK LINE
21
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
23
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
23
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
26
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
29
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
32
LOCKING CONE
35
NUT
47
FITTING , Replaced By: A0019909871
53
LOOM TIE LINE MOUNTING
53
LOOM TIE , Replaced By: A0019978490
53
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
56
WASHER BRACKET TO LEFT SIDE MEMBER
62
VALVE , Replaced By: A3869977336, +001A3454297736, +001A3509977472
62
VALVE , Replaced By: A3649977136, +001A3454297736, +001A3509977472
62
VALVE (THREE-WAY SOLENOID VALVE)
65
VALVE PART
68
PROTECTIVE CAP
71
SEAL RING
74
NUT
77
SOLENOIDTO 386 997 73 36
77
MAGNET24 V, TO 364 997 71 36
80
REPAIR KITTO 388 997 88 36
83
FITTING SOLENOID VALVE,CONNECTION: "2"
86
SEAL RING LINE CONNECTION
89
HOLLOW SCREW LEFT DISTRIBUTOR,CONNECTION: "70"
89
HOLLOW SCREW LINE CONNECTION
89
HOLLOW SCREW HEATING CONNECTION
92
SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
95
LOCK WASHER T-FITTING TO BRACKET
98
BRACKET DISTRIBUTOR
101
SCREW MOUNTING CLAMP TO BRACKET AND TO FRAME
104
WASHER TRAILER PLUG SOCKET TO BRACKET
107
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
REPAIR KITTO 388 997 81 36
