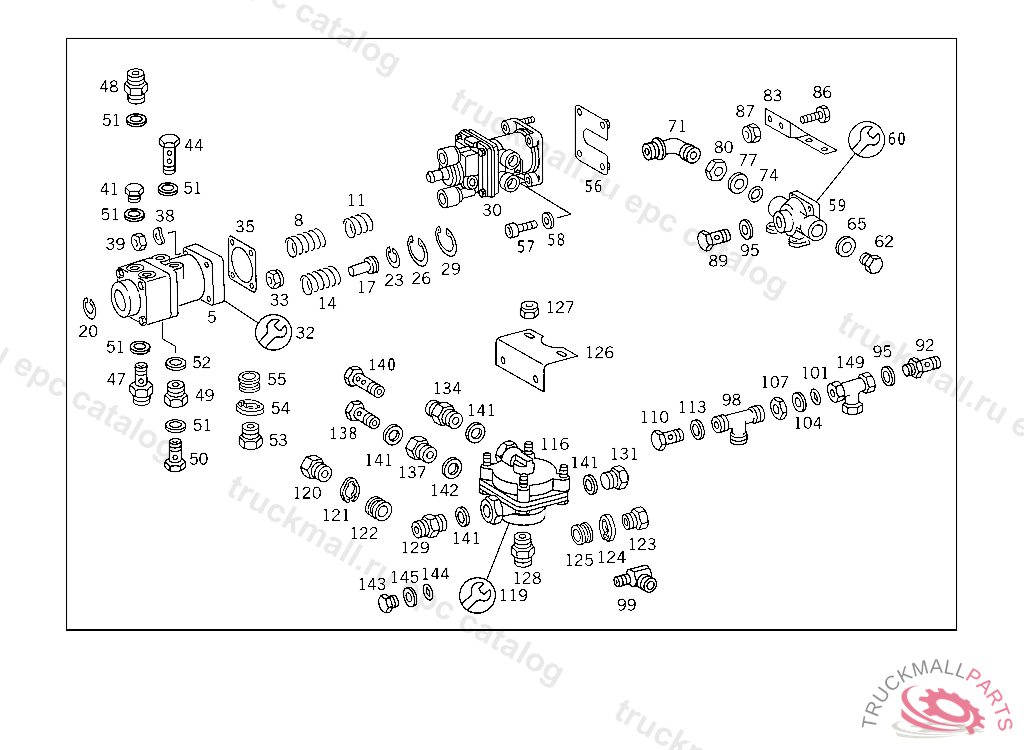

Поз.
Артикул
Описание
5
BRAKE VALVE (SERVICE BRAKE VALVE) WABCO
5
BRAKE VALVE (SERVICE BRAKE VALVE) BOSCH
5
BRAKE VALVE (SERVICE BRAKE VALVE) KNORR
30
BRAKE VALVE SERVICE BRAKE KNORR,D 227053
30
BRAKE VALVE SERVICE BRAKE WABCO,D 227053
32
BRAKE VALVE TWO-CIRCUIT BRAKE VALVE TO 002 431 80 05,WABCO
32
GASKET KIT TWO-CIRCUIT BRAKE VALVE TO 002 431 87 05
32
REPAIR KIT TWO-CIRCUIT BRAKE VALVE TO 002 431 87 05
32
REPAIR KIT SMALL SCOPE TO 695 431 74 04
32
REPAIR KIT LARGE SCOPE TO 695 431 71 04
32
REPAIR KIT SERVICE BRAKE VALVE BOSCH
33
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
44
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
47
HOLLOW SCREW FITTING SERVICE BRAKE VALVE,CONNECTION: "12"
48
FITTING QUICK BREATHER VALVE,REAR, CONNECTION: "23"
49
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
50
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
51
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
52
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
53
SCREW. UNION SCREW LINE CONNECTION
54
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
55
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
56
FLANGE SERVICE BRAKE VALVE,D 227053
57
SCREW STEERING COLUMN BRACKET TO STEERING COLUMN M 8X35
58
WASHER , Replaced By: N000125008443
59
VALVE (QUICK BREATHER VALVE) WABCO
59
VALVE (QUICK BREATHER VALVE) VARGA
59
VALVE QUICK-RELEASE VALVE KNORR
60
REPAIR KITTO A 364 429 70 44
60
REPAIR KITTOA 382 429 70 44, A 693 429 71 44
62
SCREW PLUG AT TANK
62
SCREW PLUG
65
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
74
O-RING CHECK VALVE TO AIR RESERVOIR
74
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
77
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
77
THRUST RING CHECK VALVE TO AIR RESERVOIR
77
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
80
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
86
SCREW LINES TO BRACKET
86
SCREW STEERING SHAFT BEARING TO CAB M 8X20
87
NUT BRACKET TO SIDE MEMBER
87
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
89
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
92
HOLLOW SCREW FITTING SERVICE BRAKE VALVE,CONNECTION: "12"
95
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
99
T-FITTING FROM CHECK VALVE TO RELAY VALVE
101
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
104
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
104
THRUST RING LOCKING VALVE
104
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
107
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
110
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
116
VALVE (RELAY VALVE)
116
VALVE (RELAY VALVE) WABCO
116
VALVE (RELAY VALVE),REAR AXLE
116
VALVE (RELAY VALVE) KNORR
116
VALVE (RELAY VALVE) KNORR
119
REPAIR KITKNORR
119
REPAIR KIT SMALL SCOPE TO 001 429 68 44
119
REPAIR KIT. VALVE REPAIR KIT TO 695 429 71 44
119
REPAIR KITWABCO
119
REPAIR KITTO 003 429 30 44,KNORR
119
REPAIR KITTO 386 429 70 44
120
SCREW. UNION SCREW , Replaced By: A0009973734
121
LOCK , Replaced By: A0009945448
122
SEAL RING , Replaced By: A0009940747
123
SCREW. UNION SCREW LINE CONNECTION
124
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
125
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
126
BRACKET RELAY VALVE
127
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
129
SCREW-IN FITTING OIL LINE CONNECTION
129
CONNECTION FITTING , Replaced By: A0049971772
131
SCREW PLUG
134
FITTING TEST VALVE TO RELAY VALVE,CONNECTION: "40"
137
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
138
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
140
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
141
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
142
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
143
SCREW PLUG AT TANK
144
O-RING CHECK VALVE TO AIR RESERVOIR
145
THRUST RING CHECK VALVE TO AIR RESERVOIR
149
VALVE (TRAILER CONTROL VALVE) "KNORR"
149
VALVE TWO-WAY
149
VALVE (TRAILER CONTROL VALVE) "KNORR"
