Поз.
Артикул
Описание

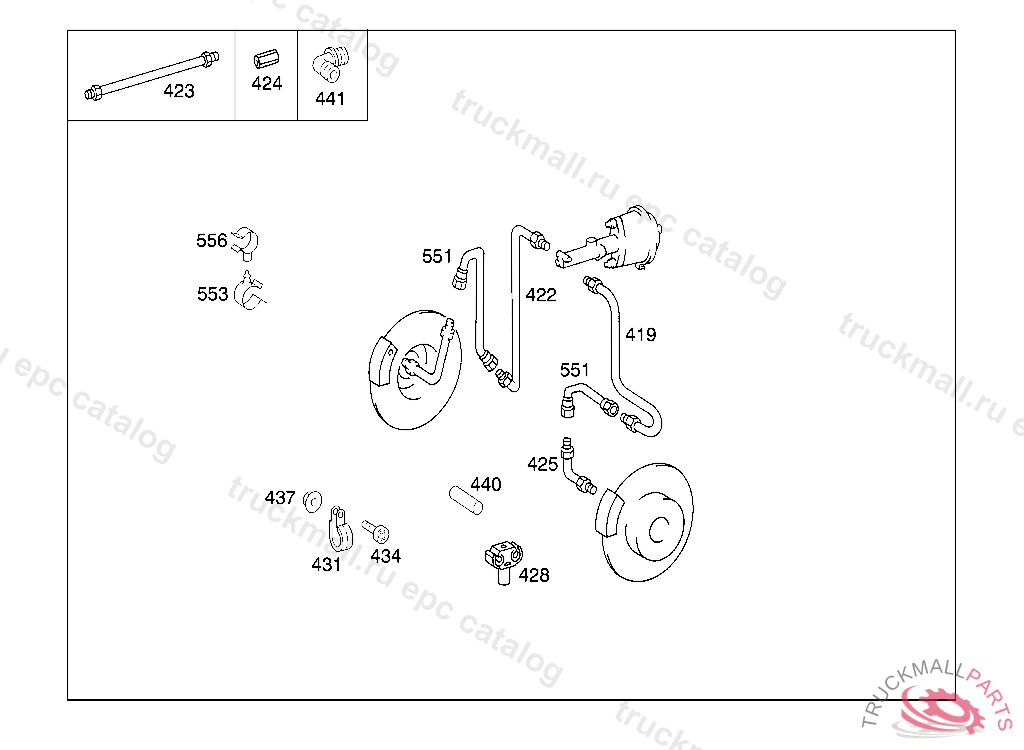

419
LINE FROM BRAKE MASTER CYLINDER TO FRONT AXLE BRAKE HOSE,LEFT
419
LINE FROM BRAKE MASTER CYLINDER TO FRONT AXLE BRAKE HOSE,LEFT
419
LINE FROM CHECK VALVE TO CONNECTOR,LEFT
422
LINE SERVICE BRAKE VALVE
422
LINE FROM BRAKE MASTER CYLINDER TO FRONT AXLE BRAKE HOSE,RIGHT
422
LINE FROM BRAKE MASTER CYLINDER TO FRONT AXLE BRAKE HOSE,RIGHT
423
LINE FROM CHECK VALVE TO CONNECTOR,RIGHT
424
ADAPTER FITTING BETWEEN THE LINES
425
LINE FROM BRAKE HOSE TO LEFT FRONT CALIPER
425
LINE FROM BRAKE MASTER CYLINDER TO FRONT AXLE BRAKE HOSE,RIGHT
428
BRACKET BRAKE LINE TO FIRE WALL
428
BRACKET BRAKE LINE TO FIRE WALL
431
CLAMP FUEL LINES TO BRACKET
431
CLAMP BRAKE LINE TO CAB SIDE MEMBER
434
SCREW MOUNTING OF INSTRUMENT PANEL
434
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
437
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
437
NUT BRACKET TO FIRE WALL
440
HOSE BRAKE LINE TO CAB SIDE MEMBER,D 065341
441
FITTING , Replaced By: A0019909871
551
BRAKE HOSE FRONT AXLE
551
BRAKE HOSE FRONT AXLE
551
BRAKE HOSE FRONT AXLE
551
BRAKE HOSE FRONT AXLE
553
CLAMP BRAKE HOSE
556
CLAMP BRAKE HOSE
999
HOHLSCHRAUBE FUR. HOLLOW SCREW MASTER CYLINDER,CONNECTION "2.1",4 338292
999
RETAINING SCREW. NUT
999
DISTRIBUTOR BRAKE LINE TO BRAKE MASTER CYLINDER
999
ADAPTER FITTING AUXILIARY BRAKE AND SUPPLY,5 116582
999
TEST CONNECTION
999
VALVE (CHECK VALVE)
999
VALVE , Replaced By: A1214290134
999
VALVE
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
GROMMET PLUG SOCKET
999
SWITCH HAND BRAKE CONTROL
999
FITTING VACUUM LINE TO VACUUM PUMP
999
BRAKE BOOSTER ASSEMBLY
999
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
999
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
999
WASHER CONSOLE TO CAB
999
T-FITTING
999
CLAMP BRAKE LINE MOUNTING
999
GROMMET LINE THRU LEFT SIDE MEMBER
999
BRACKET AT CROSS MEMBER
999
CONNECTOR THREE-WAY VALVE
999
LOOM TIE , Replaced By: A3459977390
999
BRACKET BATTERY CABLE
999
CONNECTOR SOLENOID VALVE,CONNECTION: "2"
999
BRACKET , Replaced By: A3464296040
999
MUFFLER 3/2-WAY VALVE,CONNECTION: "3"
999
WASHER , Replaced By: A3609902340
999
SHELL
999
BRAKE HOSE FROM FITTING TO LEFT COMBINATION CYLINDER,CONNECTION: "11"
999
BRAKE HOSE FROM RELAY VALVE TO COMBINATION CYLINDER
999
BRAKE HOSE FROM FITTING TO LEFT COMBINATION CYLINDER,CONNECTION: "11"
999
LOOM TIE LINE MOUNTING
999
BRACKET RELAY VALVE
999
BRACKET BRAKE HOSE TO SIDE MEMBER
999
GUIDE PLATE REAR BRAKE CABLE TO BRACKET
999
NUT BRAKE CABLE TO BRAKE LEVER
999
PIN BRAKE CABLE TO BRAKE LEVER
999
COVERING , NO.8650I.......I.......I I II .......INO.9985I.......I I II
999
COVERING AT CONSOLE, NO.8650I.......I.......I I II .......INO.9985I.......I I II
999
SPRING BRAKE CABLE
999
GROMMET
999
BRACKET
999
CONNECTOR (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER
999
BRAKE LEVER
999
LINE FROM AIR COMPRESSOR TO DOUBLE FITTING, NOT USED
999
LINE FROM DOUBLE FITTING TO PRESSURE REGULATOR, NOT USED
999
VALVE (SOLENOID VALVE)
999
LINE
999
BRAKE CABLE FRONT LEFT
999
LINE FROM DISTRIBUTOR TO LEFT WHEEL BRAKE CYLINDER
999
LINE FROM BRAKE MASTER CYLINDER TO FRONT AXLE BRAKE HOSE,LEFT,D 070925
999
BRAKE CABLE FRONT RIGHT
999
LINE FROM BRAKE MASTER CYLINDER TO FRONT AXLE BRAKE HOSE,RIGHT,D 070925
999
BRAKE CABLE FRONT LEFT
999
LINE FROM MASTER CYLINDER TO PRESSURE RETAINING VALVE
999
BRAKE CABLE FRONT RIGHT
999
LINE FROM VALVE TO BRAKE HOSE,D 070925
999
LINE
999
COVERING AT CONSOLE, NO.8650I.......I.......I I II .......INO.9985I.......I I II
999
DISTRIBUTOR REAR AXLE
999
BRACKET BRAKE LINE TO REAR AXLE
999
BRACKET LINE TO SIDE MEMBER
999
CONNECTOR AIR RESERVOIR,CONNECTION: "3"
999
SPRING RETAINER
999
BRAKE HOSE REAR AXLE
999
WEB BRAKE BOOSTER ASSEMBLY TO FIRE WALL
999
HOSE EXHAUST BRAKE CYLINDER
999
LEDGE
999
LEDGE
999
CLAMP BATTERY POS. CABLE TO BRACKET
999
HOSE HAND BRAKE VALVE
999
BRACKET AT RIGHT SIDE MEMBER
999
BRAKE VALVE (PARKING BRAKE VALVE) WABCO
999
GLAND , Replaced By: A0019901967
999
SCREW , Replaced By: N910143008002
999
UNION NUT LINE CONNECTION, Replaced By: N000000006239
999
SLEEVE LINE CONNECTION
