Поз.
Артикул
Описание

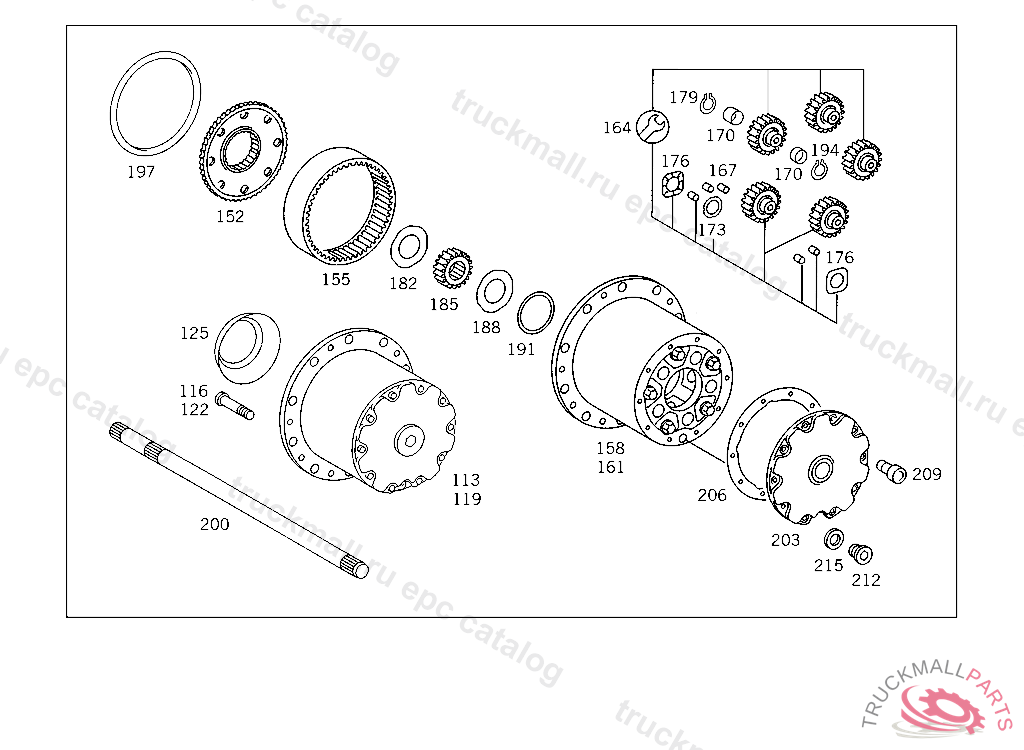

113
FRONT WHEEL HUB FRONT AXLE
116
WHEEL MOUNTING BOLT STEEL DISC WHEEL M 22X1,5X89
119
WHEEL HUB REAR AXLE CASING II
122
WHEEL MOUNTING BOLT REAR AXLE CASING II M 22X1,5X130MM
125
OIL COLLECTOR
152
SUPPORT
155
OUTSIDE GEAR
158
PLANETARY GEARING
161
BELL HUB
164
PLANET GEAR PARTS KIT
167
NEEDLE PLANETARY GEAR TRAIN
170
OUTER RACE NEEDLE BEARING
170
OUTER RACE NEEDLE BEARING
173
THRUST WASHER PLANETARY GEAR TRAIN
173
THRUST WASHER PLANETARY GEAR TRAIN
176
THRUST WASHER PLANETARY GEAR TRAIN
179
LOCK RING PLANETARY GEAR TRAIN
182
THRUST WASHER
185
SUN GEAR NUMBER OF TEETH: 30
188
THRUST WASHER
191
SPACER WASHER AS REQUIRED 1.00 MM
191
SPACER WASHER AS REQUIRED 0.20 MM
191
SPACER WASHER AS REQUIRED 0.50 MM
191
SPACER WASHER AS REQUIRED 0.10 MM
191
SPACER WASHER AS REQUIRED 1.50 MM
194
LOCK RING
197
SEAL RING , Replaced By: A0169974048
197
SEAL RING PLANETARY GEAR TRAIN TO REAR WHEEL HUB
200
REAR AXLE SHAFT LESS INTERLOCK SERRATIONS
203
HUB CAP BELL HUB
206
GASKET COVER TO HUB
209
SCREW COVER TO BELL HUB
212
SCREW PLUG OIL DRAIN
215
SEALING RING. SEAL RING OIL DRAIN
999
TAPERED ROLLER BEARING
999
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER) WABCO
999
WHEEL BRAKE CYLINDER
999
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER) WABCO
999
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER),FRONT AXLE WABCO
999
RING GEAR AND PINION44:12
999
SPACER WASHER
999
SPACER WASHER
999
BRAKE DRUM
999
WASHER RING GEAR CHECK
999
ADJUSTER
999
ADJUSTER
999
PLANET GEARTO A 388 350 01 54
999
PROTECTIVE PLATE
999
PROTECTIVE PLATE
999
PROTECTIVE PLATE WITH BEAD
999
PROTECTIVE PLATE
999
BRAKE SHOE
999
RING GEAR AND PINION RATIO: 43:7 , GLEASON
999
SPACER RING DRIVE PINION
999
FRONT AXLE
999
FRONT AXLE
999
FRONT AXLE
999
SHIM
999
BRAKE DRUM
999
THRUST WASHER
999
ADJUSTER LEFT
999
ADJUSTER RIGHT
999
ADJUSTER LEFT
999
ADJUSTER RIGHT
999
STEERING ARM LEFT AND RIGHT
999
BRAKE SHOE , Replaced By: A6594200119
999
BRAKE SHOE
999
RING GEAR AND PINION40 : 12
999
REAR AXLE LESS BRAKES
999
FRONT AXLE
