Поз.
Артикул
Описание

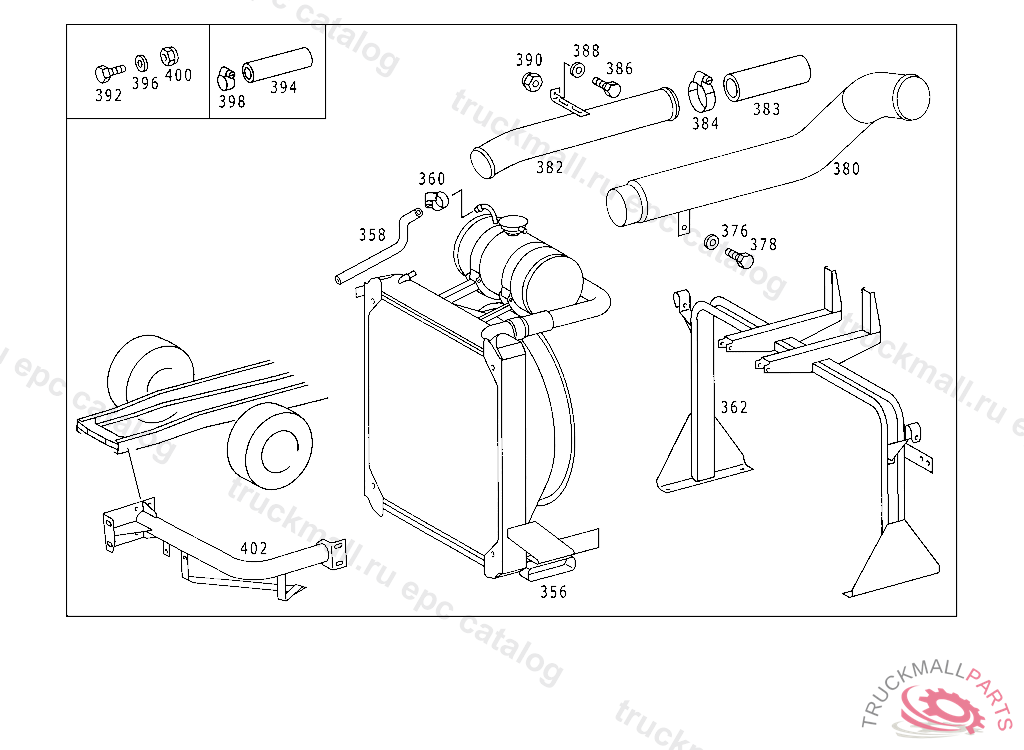

356
RADIATOR WATER
358
HOSE COOLING WATER LINE
360
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
360
CLAMP HOSE TO FITTING AND TO OIL TANK
360
CLAMP , Replaced By: N000000000667
360
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
362
SUPPORT EXPANSION TANK
376
WASHER , Replaced By: A3609902340
378
SCREW AIR DUCT TO CAB
380
AIR INTAKE PIPE
382
AIR INTAKE PIPE
383
HOSE100X112X70
384
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
384
CLAMP AIR INTAKE PIPE
386
SCREW BRACKET TO BUMPER,LEFT M 10X25
388
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
390
NUT BRACKET TO SIDE MEMBER,XB209706
392
SCREW ANGLE TO CROSS MEMBER M 10X30
394
HOSE FROM AIR INTAKE PIPE TO BREATHER VALVE
396
WASHER GROUND CABLE
398
CLAMP , Replaced By: N000000000670
398
CLAMP
400
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
402
ANGLE ,D 330151
402
ANGLE ,D 330150
402
ANGLE ,D 330151
402
ANGLE ,D 330150
999
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
999
TEST CONNECTION
999
BANJO UNION AIR RESERVOIR, NOT USED
999
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
FITTING DELIVERY LINE TO PUMP
999
MUFFLER (INTAKE MUFFLER)
999
SCREW AIR RESERVOIR
999
CLAMP , Replaced By: A3129952420
999
BRACKET AT CROSS MEMBER,D 030553
999
CLAMP , Replaced By: A1109950401
999
BRACKET AT CROSS MEMBER
999
LINE FROM OIL PUMP TO HIGH PRESSURE HOSE
999
LINE FROM HOSE TO OIL PUMP
999
CLAMP HOSE TO FILLER NECK
999
CONNECTOR AIR RESERVOIR
999
BRACKET COMPRESSED AIR LINE, BRAKE
999
LINE FROM HOSE TO POWER STEERING PUMP
999
STRAP FUEL TANK TO SUPPORT
999
SHIM BRAKE ANCHOR
999
LOOM TIE LINE TO BRACKET 508 MM
999
FITTING SOLENOID VALVE,CONNECTION: "2"
999
REINFORCEMENT BRACKET TO CROSS MEMBER,024208
999
FITTING POWER STEERING PUMP M16X1,5/M22X1,5,D 084765
999
CLAMP , Replaced By: A6739950001
999
LOCKING CAP AIR COMPRESSOR
999
THROTTLE HOUSING EXHAUST BRAKE
999
FRAME
999
CROSS MEMBER
999
CROSS MEMBER
999
CROSS MEMBERNR.8, NOT USED
999
ROD
999
ROD
999
LINE FROM FITTING TO CONNECTION FITTING
999
LINE FROM FITTING TO PRESSURE REGULATOR
999
VALVE
999
SCREW
999
SCREW
999
RET ELECTRONICS
999
LINE
999
LINE
999
SUPPORT
999
FLEXIBLE SHAFT RETARDER
999
COUPLER RETARDER
999
SCREW
999
SPACER RING
999
SNAP RING
999
SPRING LEAF CAB SUSPENSION
999
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 15 MM,1B 936133
999
CONSOLE FUEL TANK,FRONT AND REAR
999
BRACKET BREATHER LINE TO REAR AXLE
999
LOCKING SPRING COUPLING PIN
999
LINE ,B 936133
999
LINE FROM PUMP TO HIGH PRESSURE HOSE
999
PAD FUEL TANK TO CONSOLE
999
BRACKET LINE TO REAR AXLE, NOT USED
999
FUEL TANK , Replaced By: A3884706901, +001A0004700605
999
SWITCH
999
LINE SUCTION LINE TO OIL PUMP
999
SHIFTING ROD AIR SPRING VALVE TO BRACKET
999
HOSE
999
HOLLOW SHAFT
999
LINE
999
SCREW
999
LINE
999
SENDER UNIT
999
WASHER
999
SCREW , NOT USED
999
LOCK
999
BUFFER REFRIGERANT LINE TO CAB
999
PROTECTIVE PLATE COMPRESSED AIR LINES
999
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 15 MM,B 936133
999
LINE , Replaced By: A6824208836
999
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 15 MM
999
BRACKET
999
LINE FROM PUMP TO HIGH PRESSURE HOSE
999
LINE FROM OIL TANK TO SUCTION LINE
999
EXHAUST PIPE FRONT EXHAUST PIPE TO MUFFLER,B 884219
999
PANELLING RADIATOR,FRONT,B 884220
999
BRACKET DISTRIBUTOR
999
FILLER CAP , Replaced By: A3888937003
999
CAP STEERING WHEEL TO A 695 464 70 01, .......INO.9985I I I II I
999
SENDER UNIT FUEL GAUGE
999
WASHER SUPPORT TO FRAME,D 127794
999
NUT FUEL TANK TO SUPPORT
999
SCREW BATTERY CASE
999
SEAL RING FUEL LINE TO FEED PUMP
999
NUT , Replaced By: N910113014000
999
BANJO UNION
999
HOLLOW SCREW , Replaced By: N915036010108
