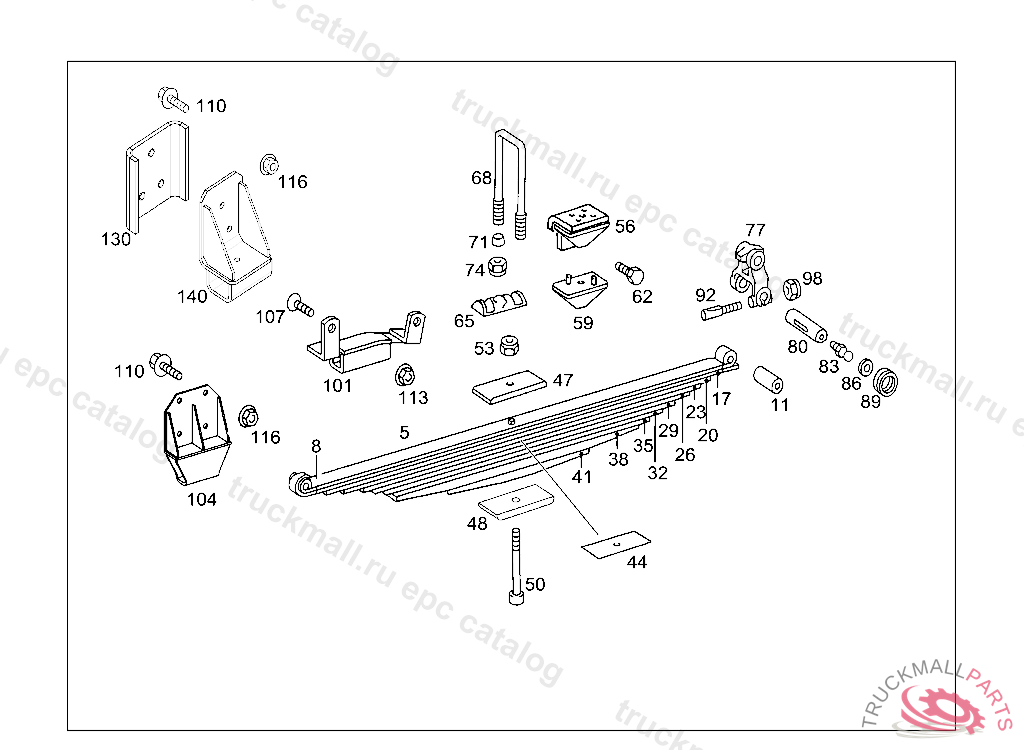

Поз.
Артикул
Описание
5
REAR SPRING 10-LEAF
5
REAR SPRING
5
REAR SPRING , Replaced By: A3823200006
8
SPRING LEAF NO.1
11
BUSHING
11
BUSHING
17
SPRING LEAF LEAF NO.2
20
SPRING LEAF LEAF NO. 3
23
SPRING LEAF LEAF NO.4
26
SPRING LEAF LEAF NO.5
29
SPRING LEAF LEAF NO.6
32
SPRING LEAF LEAF NO.7
35
SPRING LEAF LEAF NO.8
38
SPRING LEAF LEAF NO.9
41
SPRING LEAF LEAF NO.10
44
SPACER
47
SPACER
48
SPACER
50
SPRING BOLTM 12X195,B 969046
50
SPRING BOLT FRONT SPRINGS TO FRONT AXLE
53
NUT CLAMP TO DRAG LINK
56
HELPER SPRING REAR SPRING TO REAR AXLE
56
HELPER SPRING REAR SPRING TO REAR AXLE
59
STAY REAR SPRING TO REAR AXLE
62
HEXAGON HEAD BOLT. SCREW LOCK SPRING TO CROSS MEMBER M14X1.5X30
65
PLATE REAR SPRING TO REAR AXLE
68
U-BOLT , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE ONLY REPLACEABLE BY PAIRS5 999999K 000001 - K 028584, Replaced By: A6793510625, +001A6793250031
68
U-BOLT REAR SPRING TO REAR AXLE
71
WASHER FRONT SPRINGS TO FRONT AXLE
74
NUT STABILIZER TO FRONT AXLE
77
SHACKLE REAR-SPRING REAR BRACKET
80
SHACKLE PIN
80
SHACKLE PIN REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS
83
GREASE NIPPLE PROTECTIVE TUBE
86
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
86
WASHER AS REQUIRED 4.0 MM
86
WASHER AS REQUIRED 4.2 MM
86
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
89
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
92
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
98
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
101
STOP RIGHT,D 393952
101
STOP LEFT,D 393952
101
STOP LEFT,D 393953
101
STOP RIGHT,D 393953
107
SCREW STOP BUFFER TO FRAME M 10X30
113
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
