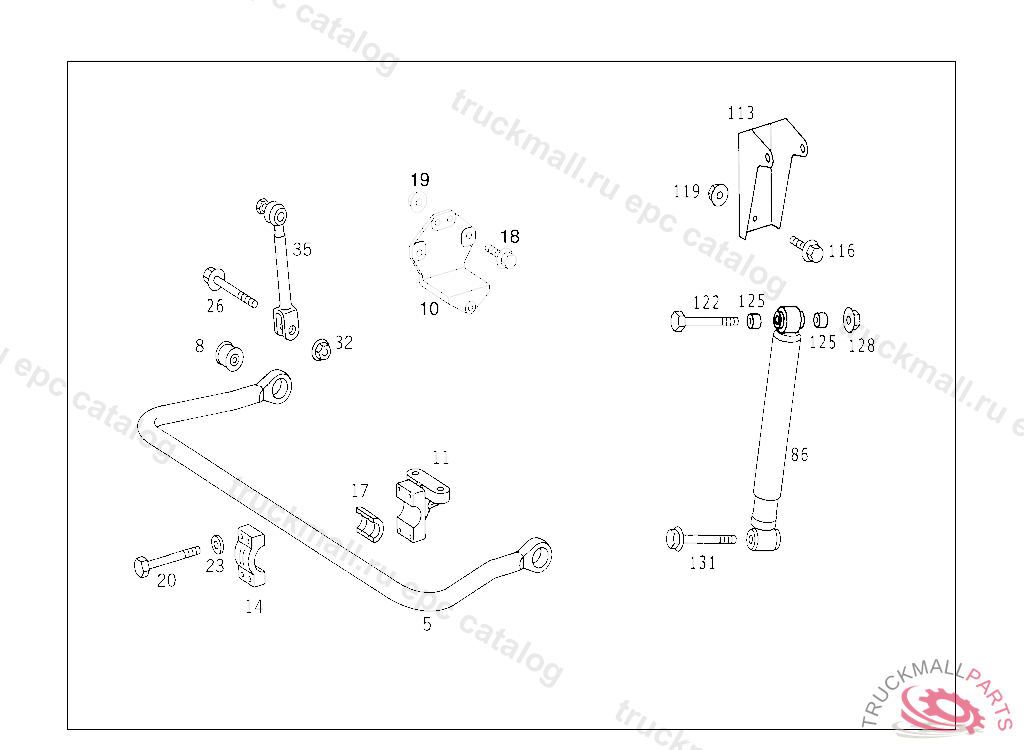

Поз.
Артикул
Описание
5
TORSION BAR STABILIZER,D 012296
5
TORSION BAR STABILIZER
8
BUSHING
10
BEARING BRACKET RIGHT 88 MM
10
BEARING BRACKET LEFT
11
BEARING BRACKET HOLE SPACING: 88 MM
14
BEARING SHELL TORSION BAR BEARING
17
GROMMET STABILIZER
17
GROMMET STABILIZER
18
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X50
19
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
20
SCREW (ARTICULATED ROD)
23
WASHER STRUT TO CONSOLE
26
SCREW CROSS MEMBER TO FRONT SPRING REAR BRACKET M 14X1.5X70
26
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
32
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
35
ROD (ARTICULATED ROD)
35
ROD (ARTICULATED ROD)
86
SHOCK ABSORBER FRONT
113
BEARING BRACKET
116
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
119
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
122
HEXAGON HEAD BOLT SHOCK ABSORBER TO BRACKET M20X1.5X150
125
SPACER TUBE SHOCK ABSORBER TO UPPER BEARING BRACKET
128
NUT TRAILER COUPLING TO REAR CROSS MEMBER
131
HEXAGON HEAD BOLT SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT M20X1.5X110
