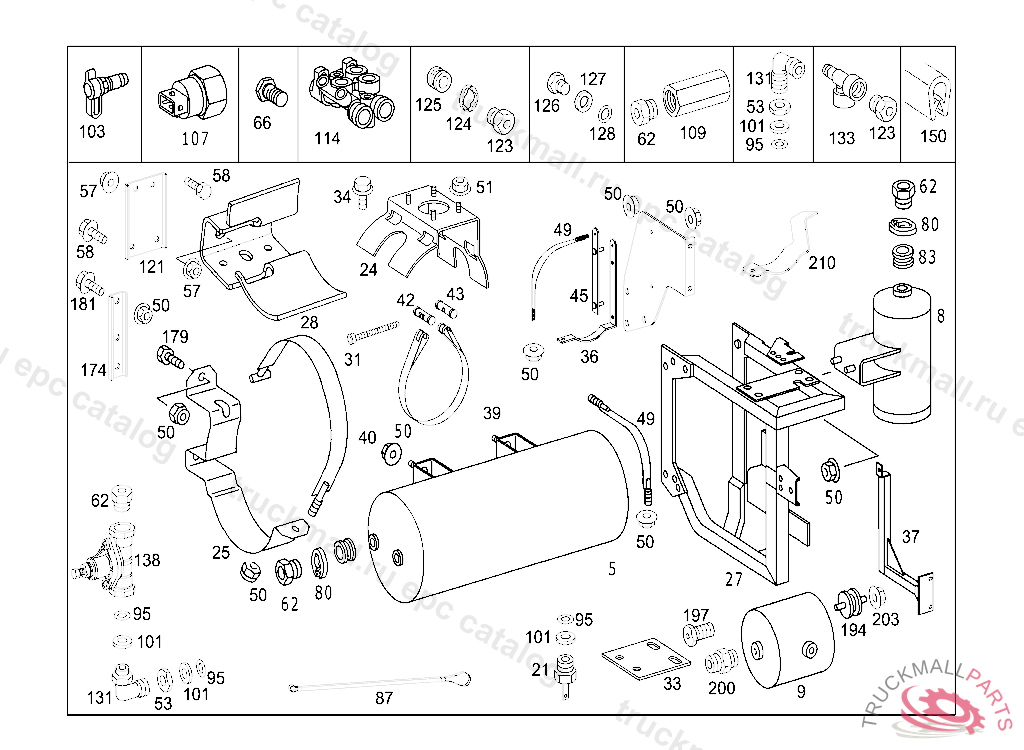

Поз.
Артикул
Описание
8
RESERVOIR AIR RESERVOIR III 5L
8
RESERVOIR AIR RESERVOIR
9
RESERVOIR AIR RESERVOIR V,D 196083
21
VALVE
21
VALVE DRAIN, Replaced By: A0004322407
21
VALVE. DRAIN VALVE DRAIN
21
VALVE DRAIN, Replaced By: A0004322107
21
VALVE
24
BRACKET AIR RESERVOIR
25
BRACKET AIR RESERVOIR
28
BRACKET AIR RESERVOIR
31
SCREW AIR RESERVOIR TO BRACKET
33
BRACKET DRAIN VALVE,WB187437
34
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M12 X 1.5 X 40
36
BRACKETTO A3684203186
39
STRAP AIR RESERVOIR TO BRACKET 778 MM / O 246 MM
39
RETAINING STRAP AIR RESERVOIR TO BRACKET 1022MM
39
STRAP AIR RESERVOIR TO BRACKET 651 MM / O 206 MM
39
STRAP AIR RESERVOIR TO BRACKET 468 MM / O 144 MM
40
STRAP AIR RESERVOIR
42
SCREW AIR RESERVOIR TO BRACKET
43
SCREW AIR RESERVOIR TO BRACKET
45
BRACKET
49
STRAP AIR RESERVOIR III
50
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
50
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
51
NUT BRACKET TO CROSS MEMBER
51
NUT BRACKET TO SIDE MEMBER
53
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
57
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
58
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
58
HEXAGON HEAD BOLT. SCREW LOCK SPRING TO CROSS MEMBER M14X1.5X30
58
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
62
SCREW. UNION SCREW LINE CONNECTION
62
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
66
SCREW AIR RESERVOIR
80
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
83
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
87
87
87
STRUT AIR RESERVOIR1145 MM
95
O-RING CHECK VALVE TO AIR RESERVOIR
101
THRUST RING CHECK VALVE TO AIR RESERVOIR
101
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
103
TEST CONNECTION SECONDARY CONSUMING UNITS
107
SWITCH PARKING BRAKE VALVE,CONNECTION: "11"
109
VALVE (CHECK VALVE)
109
VALVE (CHECK VALVE)
109
VALVE (CHECK VALVE)
121
BRACKET VALVE BRACKET
123
SCREW. UNION SCREW LINE CONNECTION
124
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
125
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
126
SCREW PLUG AIR RESERVOIR
131
ELBOW FITTING , Replaced By: A0004294638
133
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
150
EDGE GUARD SECTION AT LEFT SIDE MEMBER 85 MM
179
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X40
179
SCREW BRACKET TO CAB REAR PANEL M 8X20
179
SCREW SHIFT LEVER TO BRACKET M8X30
179
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
181
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
181
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
194
RUBBER BUFFER AIR INTAKE PIPE TO CAB
197
SCREW AIR RESERVOIR
200
SCREW-IN FITTING RELAY VALVE,CONNECTIONS: "32,34"
203
NUT HORN TO BRACKET M8
