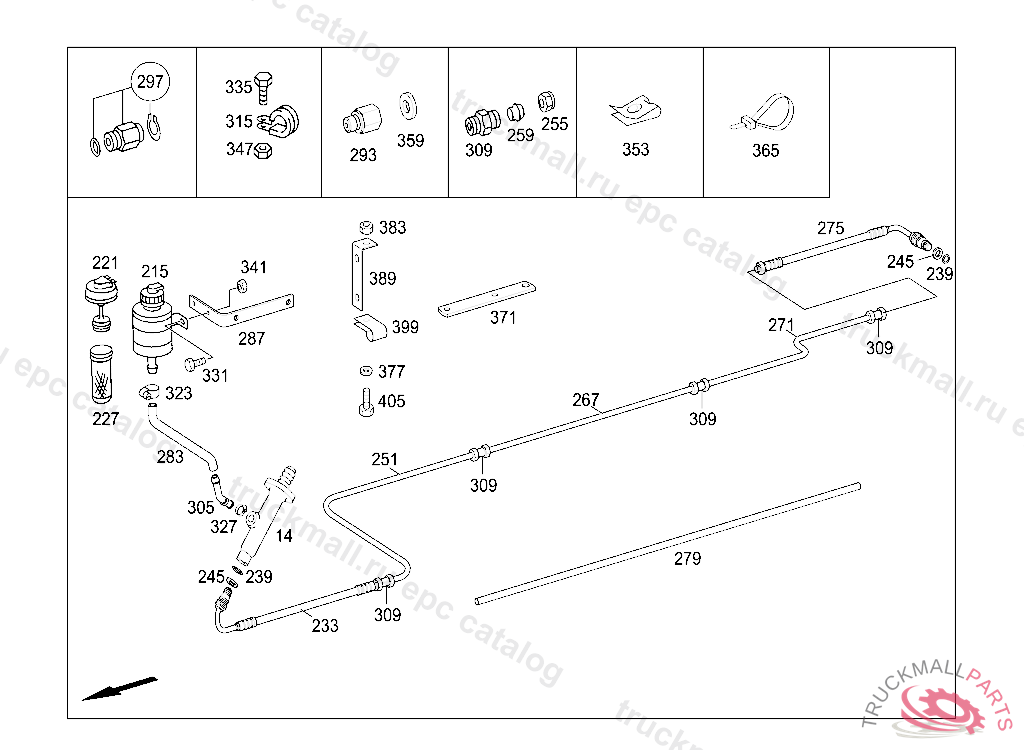

Поз.
Артикул
Описание
14
MASTER CYLINDER CLUTCH M14X1MM
14
MASTER CYLINDER CLUTCH M14X1,D 561822
215
RESERVOIR WITH WARNING DEVICE,4 314610
215
EXPANSION TANK. RESERVOIR RESERVOIR
221
FILLER CAPTO 001 431 38 02,000 431 58 02
227
STRAINERTO 001 431 38 02
233
HYDRAULIC HOSE2150MM
239
SEAL RING LINE CONNECTION 6.07X1.78MM
245
SEAL RING , Replaced By: A0269970745
251
255
UNION NUT
259
GLAND
267
271
271
275
HOSEL450MM
279
HYDRAULIC LINE6000MM
283
HOSE , Replaced By: A3929977682
287
BRACKET
293
FITTING MASTER CYLINDER CONNECTION
297
FITTING PARTS KIT
305
INTERMEDIATE PIECE , Replaced By: A0002950036
309
FITTINGL 10
315
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
315
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
323
CLAMP10-16X9MM
327
CLAMP
331
SCREW BRACKET TO CAB REAR PANEL M 8X20
335
SCREW BRACKET AND CLAMP M6X20
341
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
347
NUT , Replaced By: N913023006001
353
LOCK. NUT , Replaced By: A0039941745
359
SEAL RINGTO 000 553 03 05,000 553 18 05,
365
STRAP LINE MOUNTING 215MM
371
BRACKET
377
WASHER
383
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
389
BRACKET
399
CLAMP , Replaced By: N916016010211
405
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
