Поз.
Артикул
Описание

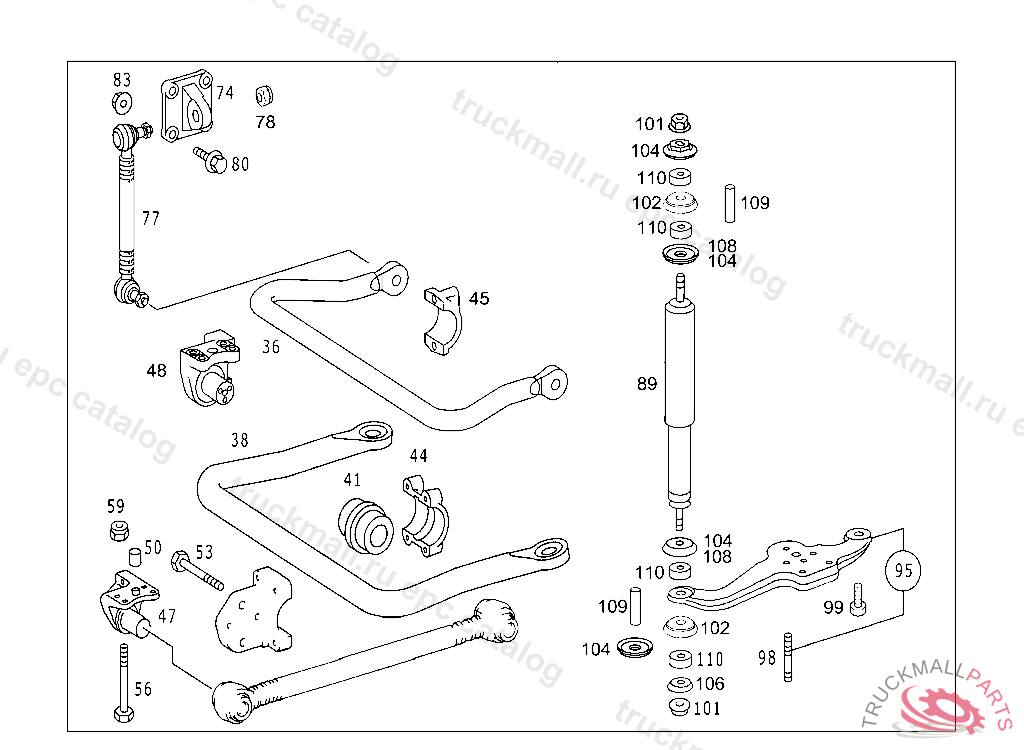

36
41
RUBBER MOUNTING ,D 005411
41
RUBBER MOUNTING TORSION BAR BEARING
45
COVER HOLE SPACING: 124 MM
48
BEARING BRACKET TOP LEFT
48
BEARING BRACKET LONGITUDINAL CONTROL ARM TO SUBSTRUCTURE "RE",073160
50
PIN
53
HEXAGON HEAD BOLT TOWING EYE TO FRAME M16X1.5X80
56
HEXAGON HEAD BOLT. SCREW BEARING BRACKET TO FRONT AXLE
59
HEXAGON NUT BEARING BRACKET TO FRONT AXLE M18X1.5
74
BEARING BRACKET
77
LINK RIGHT
77
LINK RIGHT
77
LINK LEFT
77
LINK LEFT
78
NUT STEERING WHEEL TO STEERING COLUMN
80
HEXAGON HEAD BOLT. SCREW PLATE TO SIDE MEMBER M 16X1.5X140
80
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X60, IN CONJUNCTION WITH CODE: 8224
83
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
89
89
SHOCK ABSORBER FRONT
89
SHOCK ABSORBER CENTRAL AXLE,D 684312
95
SUPPORT FRONT AXLE SUSPENSION
95
REAR SUBFRAME AIR SPRING BELLOWS,SHOCK ABSORBER
95
98
STUD BOLT
99
SCREW REAR SPRING BRACKET TO SIDE MEMBERM 14X1,5X60
101
NUT STEERING SUPPORT TO FRAME
101
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
101
NUT TOP AND BOTTOM TO A 634 326 00 00
104
SPRING RETAINER SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE
104
THRUST WASHER TOP AND BOTTOM TO 634 326 00 00
106
SPRING RETAINER LOWER,D 335607
108
RETAINER SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE
109
BUSHING TOP AND BOTTOM TO A 634 326 00 00
110
RUBBER BUFFER TOP AND BOTTOM TO A 634 326 00 00
110
RUBBER BUFFER
