Поз.
Артикул
Описание

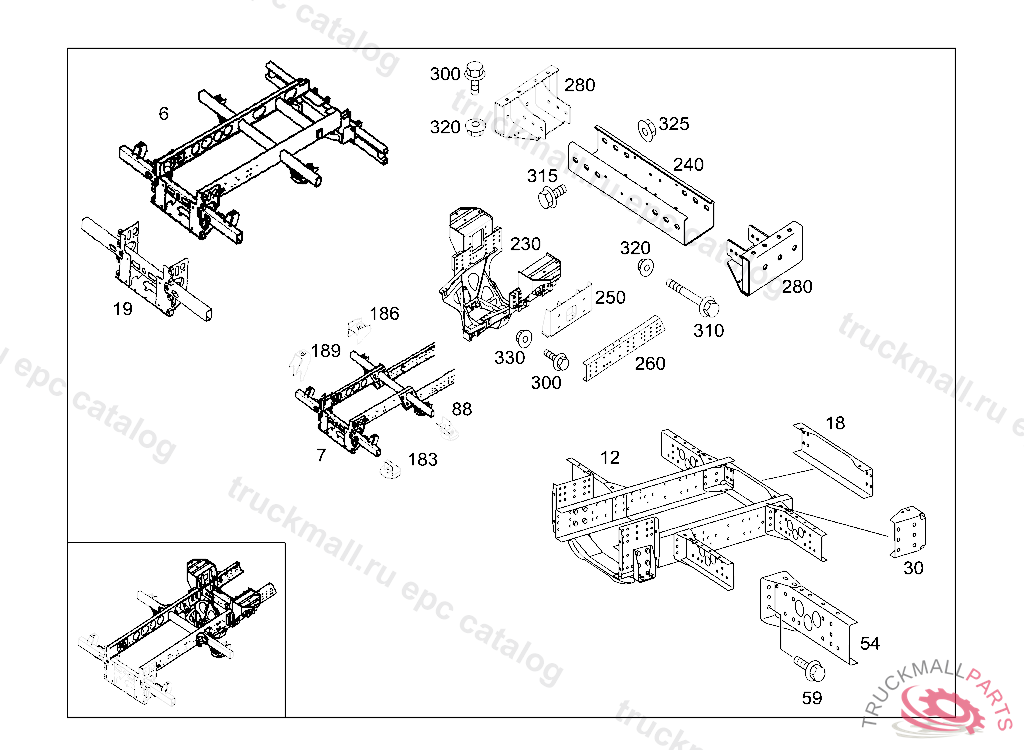

7
FRAME3415 MM
19
FRAME CROSS MEMBER
88
CONSOLE AIR SPRING BELLOWS,REAR
183
CONSOLE AIR SPRING BELLOWS,FRONT
186
BRACKET SHOCK ABSORBER BRACKET
189
BRACKET SHOCK ABSORBER BRACKET
230
MAJOR ASSEMBLY CARRIER
240
CROSS MEMBER
250
CONSOLE
260
REINFORCEMENT SHEET LEFT
260
REINFORCEMENT SHEET RIGHT
280
FRAME REINFORCEMENT HORIZONTAL
300
SCREW GUSSET PLATE TO CROSS MEMBER M16 X 1.5 X 40
300
HEXAGON HEAD BOLT SUPPORTING ARM TO ENGINE REAR MOUNTING M18X1.5X50
300
HEXAGON HEAD BOLT TOWING EYE TO FRAME M16X1.5X80
310
HEXAGON HEAD BOLT ANGLE TO SPRING BRACKET
315
HEXAGON HEAD BOLT REAR AXLE SHAFT TO HUB M18X1.5X40
320
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
320
NUT RETARDER HOUSING TO TRANSMISSION CASE
325
NUT RETARDER HOUSING TO TRANSMISSION CASE
330
NUT RETARDER HOUSING TO TRANSMISSION CASE
