Поз.
Артикул
Описание

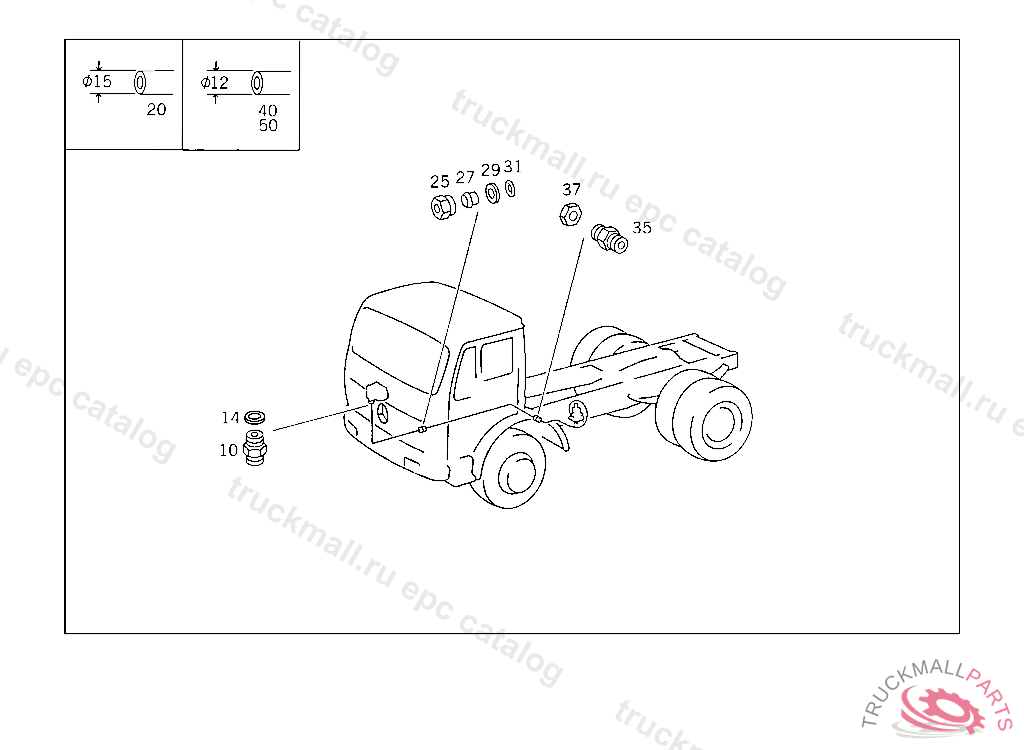

10
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
14
SEAL RING LINE CONNECTION
20
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
25
UNION NUT BUTT SCREW CONNECTION
25
UNION NUT AIR COMPRESSOR LINE CONNECTION
27
GLAND LINE CONNECTION
29
THRUST RING BUTT SCREW CONNECTION
31
SEAL RING , Replaced By: N007603012121
31
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
35
ELBOW FITTING , Replaced By: A0029901271
35
FITTING AT LEFT SIDE MEMBER,4 347260
35
ELBOW FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "1", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
37
NUT CHECK VALVE TO AIR RESERVOIR
40
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
50
HOSE , Replaced By: A0009872827
50
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
PROTECTIVE CAP , Replaced By: A0004210887
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
VERTEILERSTUCK. DISTRIBUTOR REAR AXLE,4 478330
999
SEAL RING , Replaced By: N915045012100
999
ELBOW FITTING
999
SPACER RING ,4 428462
999
SLIDETO 000 431 50 14,000 431 24 14
999
FILTER BOTTOMTO 000 431 24 14
999
GUIDE BUSHINGTO 000 431 43 12,000 431 44 12
999
GUIDE BUSHING
999
LEVER TOOTHED
999
LEVER
999
GUIDE BUSHINGTO 000 431 43 12,000 431 44 12
999
STRAINERTO 000 431 86 14
999
SPRINGTO 000 431 43 12,000 431 75 12
999
PISTONTO 000 431 43 12,000 431 44 12
999
CUP , Replaced By: A0004319186
999
CUP , Replaced By: A0015864342
999
SEAL RINGTO 000 431 43 12,000 431 44 12
999
SEAL RING
999
FELT STRIPTO 000 431 43 12,000 431 44 12
999
LOOP DRAIN VALVE TO 000 432 08 07
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
CAPTO 001 431 71 14
999
T-FITTING RELAY VALVE,CONNECTION: "12"
999
NUT RETAINER , Replaced By: A3229900091
999
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
999
F-FITTING BRAKE PRESSURE REGULATOR CONNECTION, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
PLUG
999
SEAL RINGTO 000 431 86 14
999
CUP
999
CUPTO 000 431 24 14
999
PRESSURE REGULATOR ,5 148812, Replaced By: A0024314306
999
ELBOW FITTING DELIVERY LINE TO PUMP
999
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
999
SEAL RING BRAKE VALVE,BOTTOM CONNECTIONS: "21,22", FROM IDENT NO. 352291 EXCEPT FOR 352332,352759,353163,353868,354161. ALSO INSTALLED ON 350368,350793,350843,350954,351074,351169,351434,351824,351903,352001,352271,352272.
999
FITTING ,4 261891
999
REPAIR KIT , Replaced By: A0025865543
999
SPRING
999
SEAL RINGTO 000 439 95 14,4 847617
999
SEAL RINGTO 000 431 43 12,000 431 44 12, NO LONGER AVAILABLE
999
SEAL RING
999
SEAL RINGTO 000 431 46 13,4 478330
999
SPHERICAL PIECE , Replaced By: A3025860242
999
NUT RETAINER BRACKET MOUNTING
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
PIN , NOT USED
999
BRACKET SENSOR CABLE TO FRONT AXLE
999
BRACKET , NOT USED
999
BRACKET FOUR-CIRCUIT PROTECTIVE VALVE,4 338291
999
WASHER , Replaced By: A3859900540
999
BRACKET PRESSURE GAUGE LINE TO BRACKET
999
BRACKET BUMPER,RIGHT, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
ADHESIVE FOIL GUIDE SIGN
999
COTTER PIN VIBRATION ABSORBER TO BRACKET,5 117575
999
LOCK RING22X1.2,TO 001 431 71 14
999
SCREW PRESSURE REGULATOR TO BATTERY SUPPORT,4 338292
999
SCREW , Replaced By: N000933008168
999
SCREW , Replaced By: N304017008034
999
SCREW FITTING TO TRANSMISSION M8X32
999
NUT BALL PIVOT TO LEVER
999
SCREW PEDAL TO CAB FLOOR
999
GROOVED NAIL3X4,TO 000 431 94 14,000 431 96 14
999
FITTING , Replaced By: A0019909871
999
FITTING , Replaced By: A0019902771
999
SNAP RING GEAR INDICATOR TO INSTRUMENT PANEL
999
FITTING , Replaced By: A0009907771
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
CLIP , NOT USED
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
