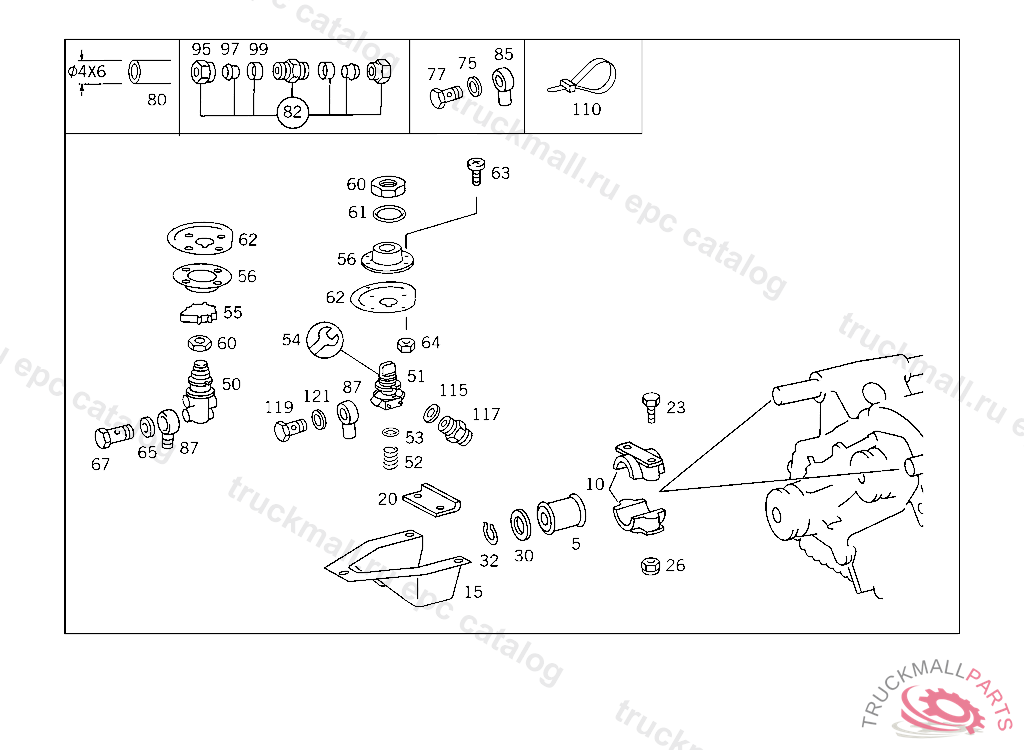

Поз.
Артикул
Описание
5
RUBBER MOUNTING TRANSFER CASE TO FRAME
10
BEARING TRANSFER CASE TO FRAME
15
BRACKET SUSPENSION
20
SHIM BRACKET TO CROSS MEMBER
23
SCREW VIBRATION ABSORBER TO BRACKET
26
NUT SUPPORT TO SIDE MEMBER
30
WASHER , Replaced By: A3129902840
30
WASHER TRANSFER CASE TO FRAME
32
LOCK TRANSFER CASE TO FRAME
50
VALVE 4/3-WAY, TRANSFER CASE ACTUATION WABCO
50
VALVE 4/3-WAY, TRANSFER CASE ACTUATION BOSCH
50
VALVE PNEUMATIC CONTROL USED FOR TRANSFER CASE BOSCH
50
VALVE PNEUMATIC CONTROL USED FOR TRANSFER CASE WABCO
51
VALVE 3/2-WAY WABCO
51
VALVE 3/2-WAY BOSCH
51
VALVE 3/2-WAY KNORR
51
VALVE 3/2-WAY VOSS
52
SPRING INSIDE WABCO
53
SEAL RING TOP WABCO
53
SEAL RING INSIDE WABCO
54
REPAIR KIT 4/3-WAY VALVE WABCO
55
HANDLE VALVE
56
BRACKET VALVE TO FLOOR, 4 276784
60
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
61
WASHER AT TWO-WAY VALVE
62
UNIT IDENTIFICATION PLATE LONGITUDINAL DIFFERENTIAL LOCK
62
UNIT IDENTIFICATION PLATE ON-ROAD/OFF-ROAD SPEED
63
SCREW OIL TANK TO BRACKET
64
NUT BALL PIVOT TO LEVER
65
SEAL RING PNEUMATIC VALVE
65
SEAL RING , Replaced By: N007603010110
67
HOLLOW SCREW LINE CONNECTION
75
SEAL RING LINE CONNECTION
77
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
77
HOLLOW SCREW LINE CONNECTION
80
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
80
PLASTIC PIPE RISING PIPE 4X6 MM
82
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
85
BANJO UNION , Replaced By: N915052004006
85
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
85
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
87
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
87
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
95
UNION NUT
97
GLAND , Replaced By: A0019901667
97
SEAL CONE
99
BUSHING , Replaced By: N915062004000
99
SLEEVE LEAK LINE
110
LOOM TIE LINE MOUNTING 280 MM
110
LOOM TIE LINE MOUNTING
115
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
117
FITTING , Replaced By: A0039979072
117
FITTING , Replaced By: A0029906071
117
TS DOUBLE FITTING SOLENOID VALVE
119
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
119
HOLLOW SCREW HEATING CONNECTION
119
HOLLOW SCREW , Replaced By: N915047008100
119
HOLLOW SCREW LINE CONNECTION
121
SEAL RING LINE CONNECTION
999
WASHER BRACKET TO LEFT SIDE MEMBER
