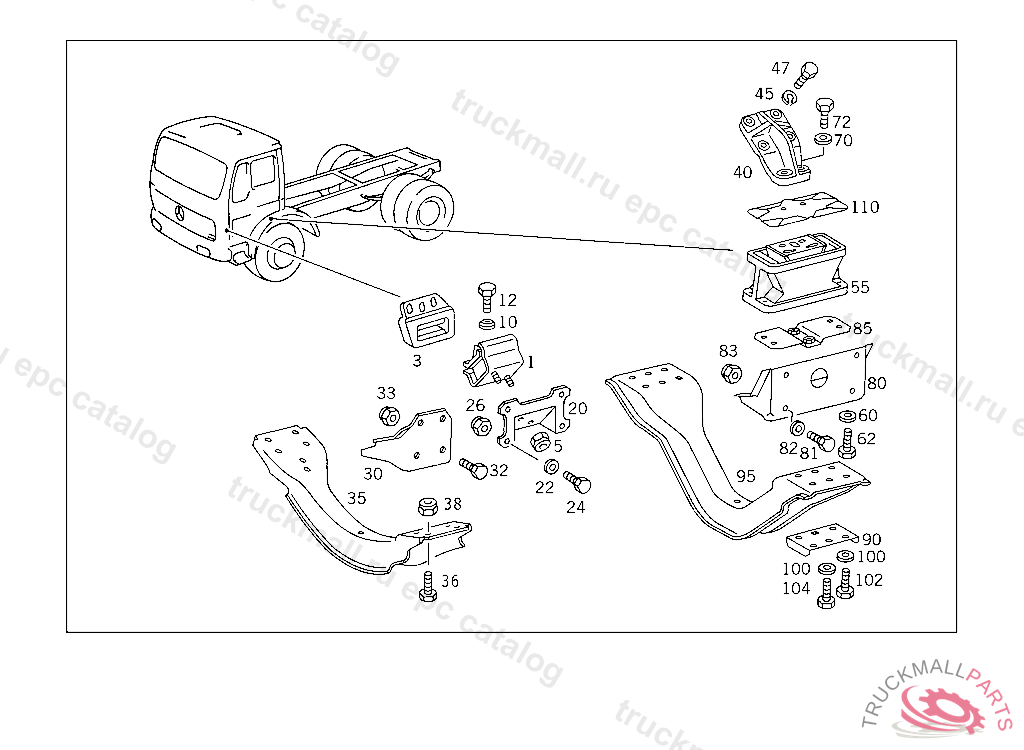

Поз.
Артикул
Описание
1
RUBBER MOUNTING ADJUSTABLE,FRONMT
1
RUBBER MOUNTING ADJUSTABLE,FRONMT
1
RUBBER MOUNTING , Replaced By: A3832401517
1
RUBBER MOUNTING , Replaced By: A3832401017
1
RUBBER MOUNTING ADJUSTABLE,FRONMT
3
STOP ENGINE FRONT MOUNTING TO 653 241 00 13,356 240 00 17
5
NUT SUPPORT TO SIDE MEMBER
10
WASHER CONSOLE TO FRAME
12
SCREW RUBBER MOUNTING TO SUPPORTING ARM M 16X1.5X38
20
BEARING BRACKET LEFT AND RIGHT
20
BEARING BRACKET , Replaced By: A3832410335, +004A3859901040, +002N000961012093, +004N000961012097
22
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
24
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
24
SCREW BRACKET TO LEFT SIDE MEMBER
24
SCREW , Replaced By: N000961012025
24
SCREW , Replaced By: N308676012026
24
SCREW SUPPORT TO SIDE MEMBER
26
NUT SUPPORT TO SIDE MEMBER
30
CONSOLE ENGINE CROSS MEMBER TO SIDE MEMBERS
32
SCREW BRACKET TO SIDE MEMBER
33
NUT BRACKET TO SIDE MEMBER
33
NUT , Replaced By: N910113014001
35
ENGINE CROSS MEMBER FRONT
36
SCREW BRACKET TO FRAME M 12X35
38
NUT SUPPORT TO SIDE MEMBER
40
SUPPORTING ARM BELL HOUSING,4 753305
40
SUPPORTING ARM BELL HOUSING,4 753306
45
LOCK WASHERROCKINGER TYP 59 G140,59 G150
47
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
47
SCREW SUPPORTING ARM TO BELL HOUSING
55
RUBBER MOUNTING REAR
55
RUBBER MOUNTING REAR
55
RUBBER MOUNTING , Replaced By: A3832401018
55
RUBBER MOUNTING , Replaced By: A3012400918
55
RUBBER MOUNTING , Replaced By: A3832401218
55
RUBBER MOUNTING , Replaced By: A3832401118
55
RUBBER MOUNTING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3012400918
55
RUBBER MOUNTING REAR
60
WASHER
62
SCREW , Replaced By: N308676012026
62
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
70
WASHER CONSOLE TO FRAME
72
SCREW CONSOLE TO SIDE MEMBER M 16X1.5X48
80
CONSOLE REAR
81
SCREW MOUNTING TO CONSOLE M 14X35
81
SCREW SUPPORT TO SIDE MEMBER M 14X1.5X42
81
SCREW , Replaced By: N308676014008
82
WASHER , Replaced By: N000125015019
82
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
83
NUT CAB ON CONSOLE AT FRAME
85
INTERMEDIATE PIECE RIGHT
90
REINFORCEMENT CONSOLE TO SIDE MEMBER
95
ENGINE CROSS MEMBER
100
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
102
SCREW SHOCK ABSORBER BRACKET TO SIDE MEMBER
102
SCREW LEFT AND RIGHT CONSOLES TO CAB
104
SCREW BRACKET TO CROSS MEMBER
110
SCREENING PLATE REAR RUBBER MOUNTING
