Поз.
Артикул
Описание

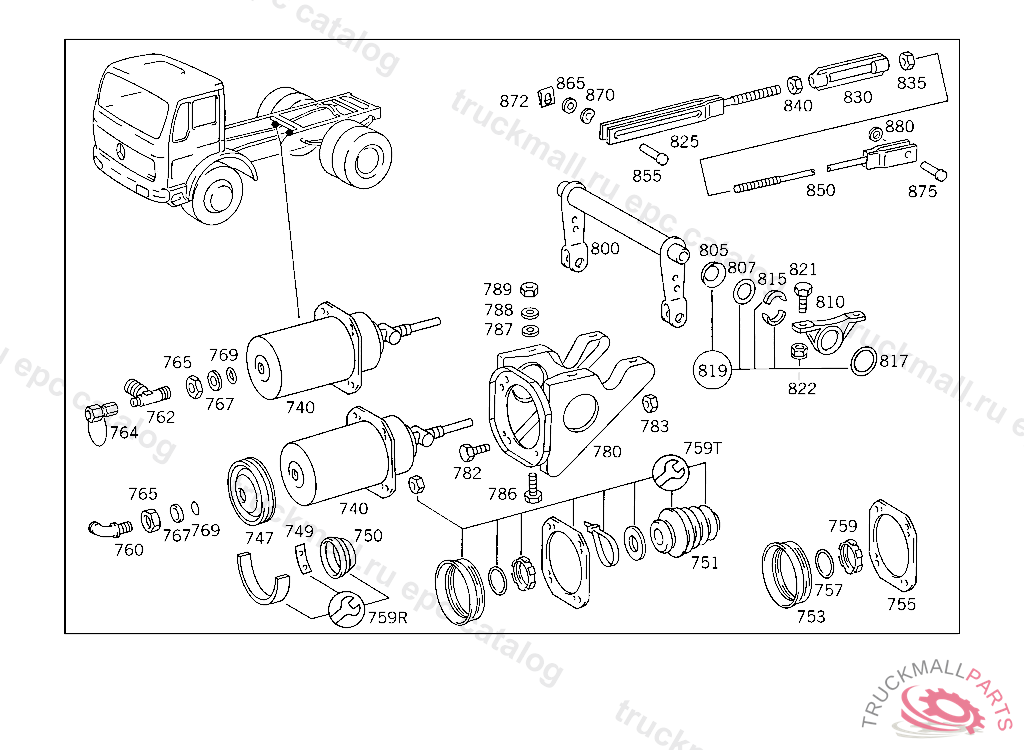

740
BRAKE CYLINDER SPRING LOAD ACCUMULATOR KNORR
740
BRAKE CYLINDER SPRING LOAD ACCUMULATOR BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
740
BRAKE CYLINDER , Replaced By: A0004312414
747
CUPTO 000 431 24 14
747
CUP , Replaced By: A0004319186
749
SLIDETO 000 431 50 14,000 431 24 14
750
CUP , Replaced By: A0015864342
762
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
764
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
764
TEST CONNECTION
764
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
764
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
765
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
767
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
769
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
769
SEAL RING
780
CONSOLE SPRING LOAD ACCUMULATOR BRAKE CYLINDER
782
SCREW END PIECE TO EXHAUST PIPE M 10X25
783
NUT STRAP TO BRACKET
783
NUT , Replaced By: N910113010000
786
SCREW BRACKET TO SIDE MEMBER
786
SCREW , Replaced By: N304017010002
787
WASHER BRACKET TO LEFT SIDE MEMBER
787
WASHER , Replaced By: A3859900540
788
WASHER , Replaced By: N000125010532
788
WASHER RADIATOR TO RUBBER MOUNTING
789
NUT , Replaced By: N910113010000
789
NUT STRAP TO BRACKET
800
BRAKE INTERMEDIATE SHAFT SPRING LOAD ACCUMULATOR BRAKE CYLINDER
805
SEAL HOLDER
807
SEAL RING
810
BEARING BRACKET BRAKE INTERMEDIATE SHAFT
815
SPHERICAL PIECE , Replaced By: A3025860242
817
EXPANSION PLUG
819
BALL CUP BRAKE INTERMEDIATE SHAFT BEARING
819
REPAIR KIT , Replaced By: A3534200067
819
REPAIR KIT , Replaced By: A3534200167
821
SCREW REAR EXHAUST PIPE TO MUFFLER
822
NUT STRAP TO BRACKET
822
NUT , Replaced By: N910113010000
825
ROD FROM BRAKE SHAFT TO BRAKE LEVER
830
NUT FROM BRAKE SHAFT TO BRAKE LEVER
830
TURNBUCKLE , Replaced By: A3859960034
835
NUT PULL ROD
840
NUT STRAP TO SUPPORT,5 149419
850
ROD FROM BRAKE SHAFT TO BRAKE LEVER
855
PIN PULL ROD TO BRAKE INTERMEDIATE LEVER
865
WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
865
WASHER , Replaced By: N000433013010
870
SPRING WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
872
COTTER PIN VIBRATION ABSORBER TO BRACKET,5 117575
875
PIN PULL ROD TO BRAKE LEVER,REAR AXLE
880
WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
880
WASHER , Replaced By: N000433013010
999
FITTING (PARTS KIT),LINE RUPTURE
999
REPAIR KITTO 001 431 12 06, KNORR 3200
999
REPAIR KIT , Replaced By: A0034303881
999
REPAIR KITGRAU,5 148812
999
REPAIR KIT , Replaced By: A0004301109
999
REPAIR KIT , Replaced By: A0025865543
999
REPAIR KIT , Replaced By: A0004201071
999
REPAIR KITTO 000 431 66 14,001 431 05 14
999
REPAIR KIT SLAVE CYLINDER TO 006 420 15 18
999
REPAIR KITKNORR
999
REPAIR KITTO 001 431 47 06,WABCO 2100, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KIT BOOT TO 001 431 38 06,BOSCH, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KIT SLAVE CYLINDER TO 006 420 15 18, UP TO SCHAEFER CHARACTERISTIC NO.489
999
REPAIR KIT , Replaced By: A0004302108
999
REPAIR KIT , Replaced By: A0025862843
999
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) GRAU, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
VALVE , Replaced By: A0024319306
999
REPAIR KIT VALVE KIT WABCO,5 148812
999
VALVE
999
VALVE , Replaced By: A0034295344
999
BRAKE HOSE FRONT 700 MM,4 615089-4 629024
999
BRAKE HOSE FRONT 700 MM,4 615089-4 629024
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
999
SEAL RING , Replaced By: A0019975945
999
LOOM TIE LINE MOUNTING
999
FITTING , Replaced By: N915059006000
999
SEAL RINGWABCO
999
SEAL RINGTO 000 431 46 13,4 478330
999
SEAL RINGTO 000 431 46 13,4 478330
999
FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
999
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
999
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
999
REPAIR KIT , Replaced By: A0034201724
999
REPAIR KITTO 001 429 20 44,BOSCH
999
VALVE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0024312906
999
SPRING
999
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
GASKET , Replaced By: A0004311980
999
SEAL RING , Replaced By: A0009971548
999
SEAL RING 34X2,3 MM TO 001 431 68 06 34X2.3 MM,TO 001 431 68 06,GRAU
999
SEAL RING86X2 MM,GRAU
999
BRAKE PRESSURE REGULATOR REAR AXLE BRAKE CIRCUIT
999
SEAL RING28X2 MM,GRAU
999
BRAKE PRESSURE REGULATOR REAR AXLE BRAKE CIRCUIT
999
CUPTO 000 431 24 14
999
CUPTO 002 431 04 06,BOSCH
999
CUP
999
SEAL RINGTO 000 431 86 14
999
SEAL RINGTO 000 431 86 14
999
SEAL RINGTO 000 431 95 14,4 847617
999
PROTECTIVE CAP
999
REPAIR KIT PRESSURE REGULATOR WABCO
999
REPAIR KITTO 000 431 76 14
999
VALVE (RELAY VALVE) GRAU
999
VALVE , Replaced By: A0034291644
999
PLUG
999
F-FITTING BRAKE PRESSURE REGULATOR CONNECTION, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
SPRINGBOSCH,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
SPRING , Replaced By: A0009935205
999
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
T-FITTING RELAY VALVE,CONNECTION: "12"
999
LOCK WASHER , Replaced By: N000127010202
999
HOLLOW SCREW CONNECTION "2.1",4 314611
999
CAPTO 001 431 71 14
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
REPAIR KIT , Replaced By: A0004305860
999
REPAIR KIT SLAVE CYLINDER TO 000 296 01 07
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
SWITCH SUPPLY PRESSURE,5 966147
999
RESERVOIR , Replaced By: A0004318702
999
CUP , Replaced By: A0004318587
999
CUPTO 001 431 43 05,BOSCH-TEVES, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
CUPBOSCH,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
PROTECTIVE CAPTO 000 431 24 14
999
PISTONTO 000 431 86 14
999
BRAKE PRESSURE REGULATOR , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
PISTONTO 000 439 95 14,4 847617
999
PISTONTO 000 431 95 14,4 847617
999
PISTONTO 001 431 71 14,001 431 73 14
999
TEST CONNECTION FRONT AXLE
999
PROTECTIVE CAPTO 000 431 66 14
999
FILLER CAPTO 000 431 97 02
999
VALVE SEATTO 001 431 68 06,GRAU 37001, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
STRAINERTO 000 431 86 14
999
VALVE SEATGRAU
999
LEVER
999
LEVER TOOTHED
999
GASKET34X2X6 MM,GRAU
999
METAL SPRING BELLOWS ,4 9579425 498312
999
METAL SPRING BELLOWS ,4 957941, Replaced By: A0004311718, +001N000961012047
999
COVERTO 001 431 73 14,001 431 71 14
999
GUIDE BUSHINGTO 000 439 95 14,4 847617
999
GUIDE BUSHING
999
FILTER BOTTOMTO 000 431 24 14
999
VALVE , Replaced By: A0004310265
999
VALVE , Replaced By: A3075530107
999
SPACER RING ,4 428462
999
REPAIR KITTO 000 430 56 81,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KITTO 001 431 84 06,KNORR, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE BOSCH
999
REPAIR KIT COMPRESSED AIR CYLINDER TO 000 431 95 14,001 431 32 14
999
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
999
REPAIR KITTO 001 431 47 06,WABCO 2210, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KITTO 002 431 83 06, KNORR 90309
999
MUFFLER PRESSURE REGULATOR BREATHING
999
DISTRIBUTOR REAR AXLE,4 478330
999
DISTRIBUTOR ,4 342862
999
CONNECTOR OIL DELIVERY LINE
999
VERTEILERSTUCK. DISTRIBUTOR REAR AXLE,4 478330
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
BRACKET. LOCK , Replaced By: A6525040038
999
SCREW PLUG CONNECTION "1","2",4 478330
999
PROTECTIVE CAP ,5 962906
999
PROTECTIVE CAP , Replaced By: A0004210887
999
PROTECTIVE CAP , Replaced By: A0004217187
999
BLEEDER VALVE , Replaced By: A0004310265
999
BLEEDER VALVE , Replaced By: A0004310265
999
VALVEBOSCH
999
VALVE GASKET KIT TO 003 429 16 44,BOSCH,UP TO 03.82
999
VALVE , Replaced By: A3075530107
999
CLAMP , Replaced By: N000000000670
999
FITTING
999
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
999
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
999
HOLLOW SCREW LINE CONNECTION
999
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
HOLLOW SCREW , Replaced By: N915036012101
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004006001
999
NUT PUMP TO BRACKET
999
LOCK WASHER FITTING TO BRACKET
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
NUT SUPPORT TO SIDE MEMBER
999
SCREW BRACKET TO TRANSMISSION
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SCREW PIPE CLAMP
999
SCREW SUPPORT TO FENDER
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
