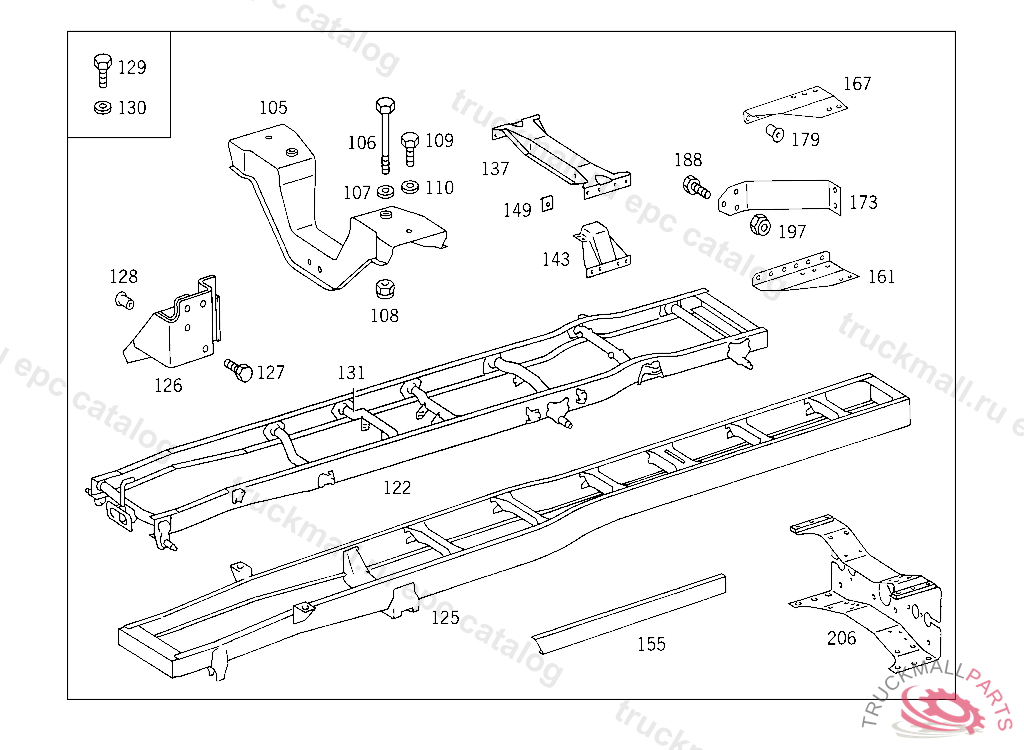

Поз.
Артикул
Описание
105
ENGINE SUPPORT ENGINE FRONT CROSS MEMBER
106
SCREW ENGINE TO ENGINE FRONT SUPPORT
107
WASHER CONSOLE TO FRAME
108
NUT , Replaced By: N910113016001
109
SCREW , Replaced By: N308676016007
110
WASHER CONSOLE TO FRAME
122
FRAME
122
FRAME
122
FRAME
125
FRAME ,D 117428
125
FRAME
125
FRAME ,D 117429
126
CONSOLE LEFT
126
CONSOLE RIGHT
127
SCREW BATTERY CASE TO SIDE MEMBER
128
RIVET12X30 MM
128
RIVET10X24
129
SCREW VIBRATION ABSORBER TO FRAME M 12X1.5X55
130
WASHER HUB CAP TO BRACKET
131
CROSS MEMBER WITH BRACKET N0.3
137
CROSS MEMBERNO.4A
143
STRUT CROSS MEMBER AT REAR SPRING FRONT BRACKET
143
STRUT LEFT AND RIGHT
149
SHIM CROSS MEMBER AND STRUT TO SIDE MEMBER
155
TRUSS LEFT
155
TRUSS RIGHT
161
GUSSET PLATE GUSSET PLATE TO FRAME
167
GUSSET PLATE GUSSET PLATE TO FRAME
173
STRUT REINFORCEMENT
179
RIVET14X58 MM
179
RIVET BRACKET TO FRAME
179
RIVET14X42 MM
179
RIVET14X40 MM
179
RIVET12X34 MM, TO BE ADAPTED DURING ASSEMBLY
179
RIVET16X48 MM, TO BE ADAPTED DURING ASSEMBLY
179
RIVET12X30 MM
188
SCREW BATTERY CASE TO SIDE MEMBER
197
NUT , Replaced By: N910113014000
206
CROSS MEMBER (REAR CROSS MEMBER)
999
SPLASH GUARD
999
COVERING BRACKET TO FENDER TO A6965207519/7120,A6935200019/0020
999
BRACKET BRACKET TO FENDER TO A6965207519/7120,A6935200019/0020
999
BRACKET BRACKET TO FENDER TO A6965207519/7120,A6935200019/0020
999
BRACKET BRACKET TO FENDER TO A6965207519/7120,A6935200019/0020
999
BRACKET BRACKET TO FENDER TO A6965207519/7120,A6935200019/0020
999
BRACKET BRACKET TO FENDER TO A6965207519/7120,A6935200019/0020
999
BRACKET BRACKET TO FENDER TO A6965207519/7120,A6935200019/0020
999
BRACKET BRACKET TO FENDER TO A6965207519/7120,A6935200019/0020
999
BRACKET MUD APRON
999
INTERMEDIATE PIECE SPRING TO CAB
999
SEPARATOR
999
HOSE FROM THERMOSTAT TO RADIATOR
999
FRAME ,D 117428
999
BEARING HOUSING
999
COVER
999
STOP
999
SUPPORT
999
CROSS MEMBER CROSS MEMBER TO TRANSMISSION NO.2
999
FRAME LESS FRONT SPRING REAR BRACKET AND LESS REAR SPRING REAR BRACKET
999
BRACKET ANTINOISE CAPSULE,D 203092
999
BRACKET
999
ANTINOISE CAPSULE FRONT BOTTOM,D 203092
999
ANTINOISE CAPSULE REAR BOTTOM,D 203092
999
FENDER REAR LEFT 24 VOLTS - C/ ANTI-SPRAY,D 366830
999
FENDER REAR RIGHT 24 VOLTS - C/ ANTI-SPRAY,D 366830
999
HEXALOBULAR BOLT SHIFTING CYLINDER TO CASE M8X35
999
SNAP RING , INTERMEDIATE BEARING, BALL BEARING WITH LOCK
