Поз.
Артикул
Описание

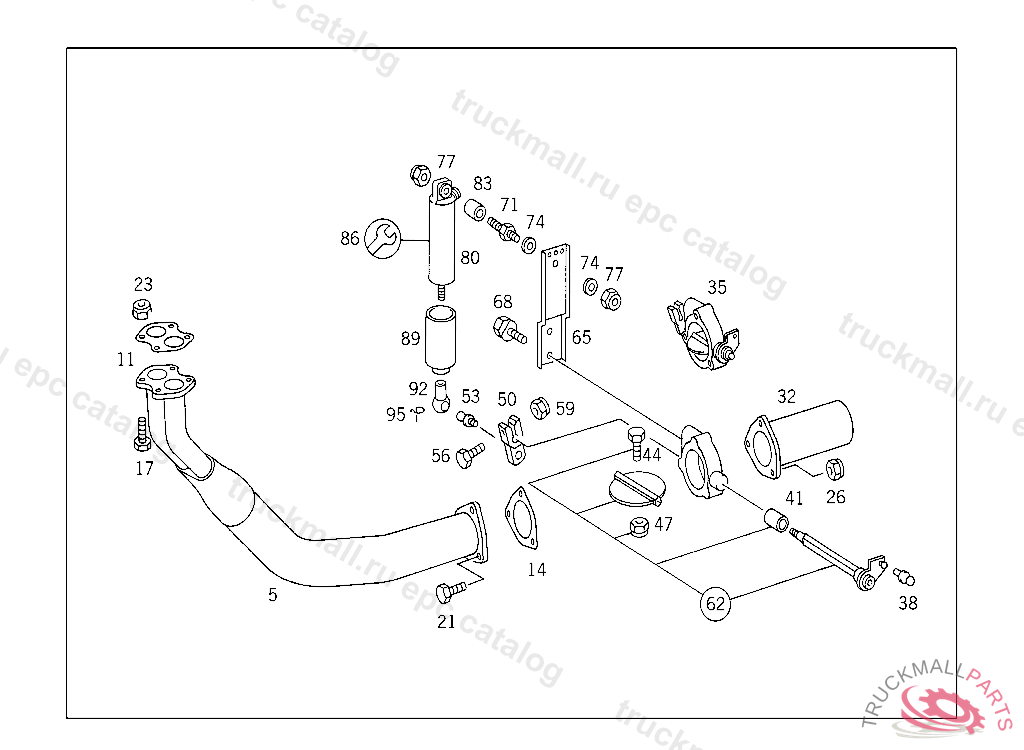

5
EXHAUST PIPE FRONT
11
FLANGE GASKET EXHAUST PIPE TO EXHAUST MANIFOLD
14
FLANGE GASKET , Replaced By: A6004920080
14
FLANGE GASKET EXHAUST PIPE TO EXHAUST MANIFOLD
17
SCREW CLAMPING BOLT TO BRACKET
21
SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M 12X1.5X75
23
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
26
NUT EXHAUST PIPE TO EXHAUST MANIFOLD
32
EXHAUST PIPE FRONT
32
CONNECTOR , Replaced By: A3824907619
35
THROTTLE HOUSING ,1B 909756
35
THROTTLE HOUSING ,1B 909755
38
BALL PIVOT THROTTLE VALVE SHAFT,B 898894
41
BUSHING THROTTLE VALVE SHAFT
41
BUSHING
44
SCREW QUICK-RELEASE VALVE TO BRACKET
47
NUT POWER CYLINDER TO BRACKET
50
LEVER EXHAUST-BRAKE THROTTLE VALVE
50
LEVER , Replaced By: A3661400232, +001N913017006000, +001N914126006025
53
BALL PIVOT
56
SCREW LEVER TO THROTTLE VALVE SHAFT
59
NUT
62
VALVE PARTS KIT,B 884219
62
VALVE PARTS KIT
65
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 077169/N 817421 - 825202, Replaced By: A3661440440
65
BRACKET POWER CYLINDER, TO BE ADAPTED DURING ASSEMBLY
68
SCREW BRACKET TO THROTTLE HOUSING M 8X14,B 898894
71
PIN INTERMEDIATE SPEED STOP
74
WASHER INTERMEDIATE SPEED STOP
77
NUT LEVER TO SHIFTING SHAFT
80
CYLINDER , Replaced By: A0004305926
80
CYLINDER INCREASE IN NUMBER OF REVOLUTIONS KNORR
80
CYLINDER (POWER CYLINDER),EXHAUST BRAKE, Replaced By: A0004307926
80
CYLINDER INTERMEDIATE SPEED STOP
83
BUSHING"WABCO"
86
REPAIR KITTO 000 430 48 26,KNORR
89
CAP POWER CYLINDER TO THROTTLE VALVE LEVER
89
CAP SHIFTING CYLINDER TO 000 430 48 26 , 49 26
92
BALL SOCKET SHIFTING CYLINDER TO SHIFT LEVER
92
BALL SOCKET
95
CIRCLIP ,B 884219
999
CLAMP FRONT EXHAUST PIPE TO MUFFLER,B 884220
999
CLAMP , Replaced By: A3644927040
999
WASHER GROUND CABLE
999
NUT ,B 884219
999
SCREW FRONT EXHAUST PIPE TO MUFFLER M 10X130
999
SCREW REAR EXHAUST PIPE TO MUFFLER M 10X140,B 884220
999
NUT ,B 884219
999
NUT , Replaced By: N910113010004
