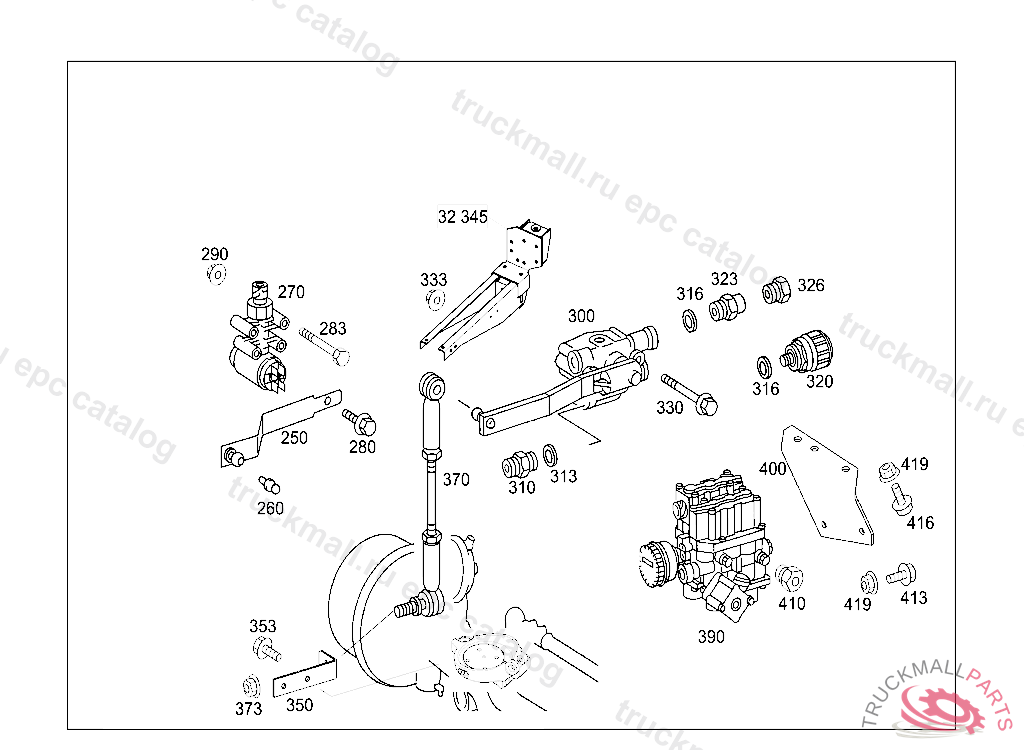

Поз.
Артикул
Описание
250
ROD AT FRONT AXLE
260
BALL PIVOT
270
TRAVEL SENSOR SELF-LEVELLING DEVICE
280
HEXAGON HEAD BOLT
283
SCREW ON STOP M 8X65
290
NUT ENGINE MOUNTING M8
300
VALVE FRONT AXLE AIR SPRING VALVE
310
VALVE LEVEL ADJUSTMENT VALVE,CONNECTION: "10"
313
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
316
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
320
FILTER
323
FITTING LINE CONNECTION
326
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
330
HEXAGON HEAD BOLT. SCREW SUSPENSION EYE AND BRACKET TO CYLINDER HEAD M 8X70,TO 366 223 06 41
333
NUT HORN TO BRACKET M8
350
BRACKET LEVEL ADJUSTMENT VALVE, RIGHT
353
SCREW BRACKET AND CLAMP M6X20
370
ROD OPERATING ROD TO FRONT AXLE 184 MM,D 196083
373
NUT HORN TO BRACKET M8
390
VALVE FRONT AXLE
400
410
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
413
SCREW ,R 034014
416
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
419
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
419
NUT ENGINE MOUNTING M8
