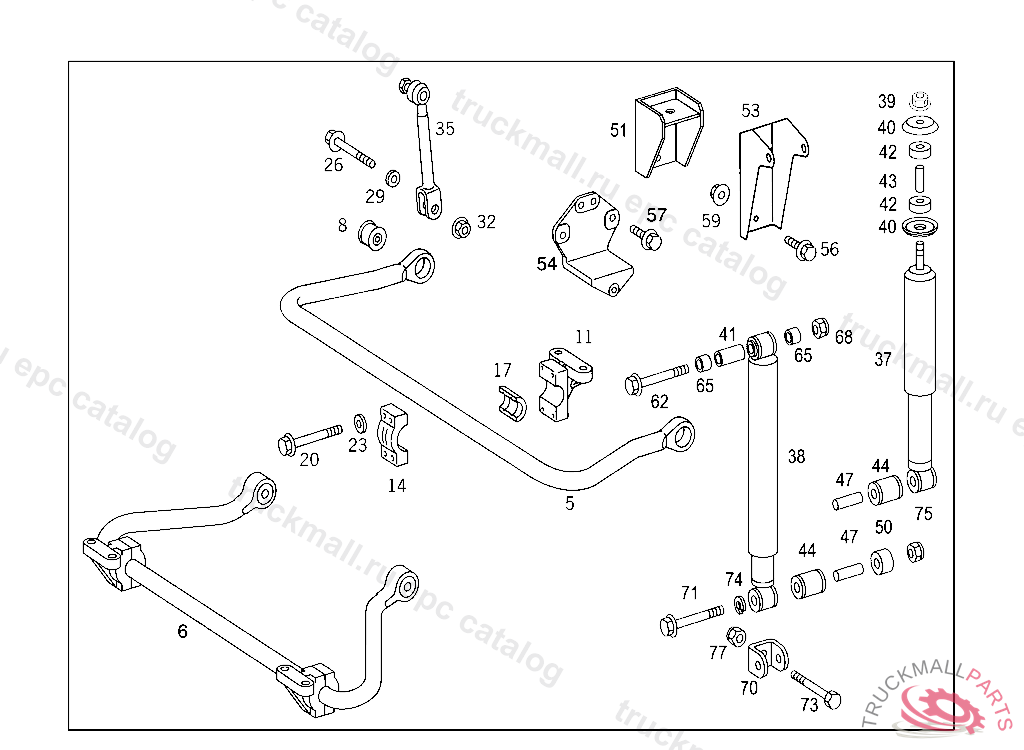

Поз.
Артикул
Описание
5
TORSION BAR STABILIZER,D 012296
8
BUSHING
11
BEARING BRACKET HOLE SPACING: 88 MM
11
BEARING BRACKET HOLE SPACING: 100 MM
14
BEARING SHELL TORSION BAR BEARING
17
GROMMET STABILIZER
17
GROMMET STABILIZER
20
SCREW (ARTICULATED ROD)
23
WASHER STRUT TO CONSOLE
26
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
29
WASHER
32
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
35
ROD (ARTICULATED ROD)
35
ROD (ARTICULATED ROD)
38
SHOCK ABSORBER FRONT
38
38
38
SHOCK ABSORBER FRONT
53
BEARING BRACKET ,D 154336
56
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
59
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
62
SCREW MOUNTING PARTS M16 X 1.5 X 110
62
HEXAGON HEAD BOLT. SCREW SHOCK ABSORBER TO LOWER BEARING BRACKET M 16X1.5X90
65
SPACER TUBE SHOCK ABSORBER TO UPPER BEARING BRACKET,D 204382
68
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
71
SCREW SHOCK ABSORBER TO BRACKET
74
LOCK WASHER TRANSMISSION TO BELL HOUSING
