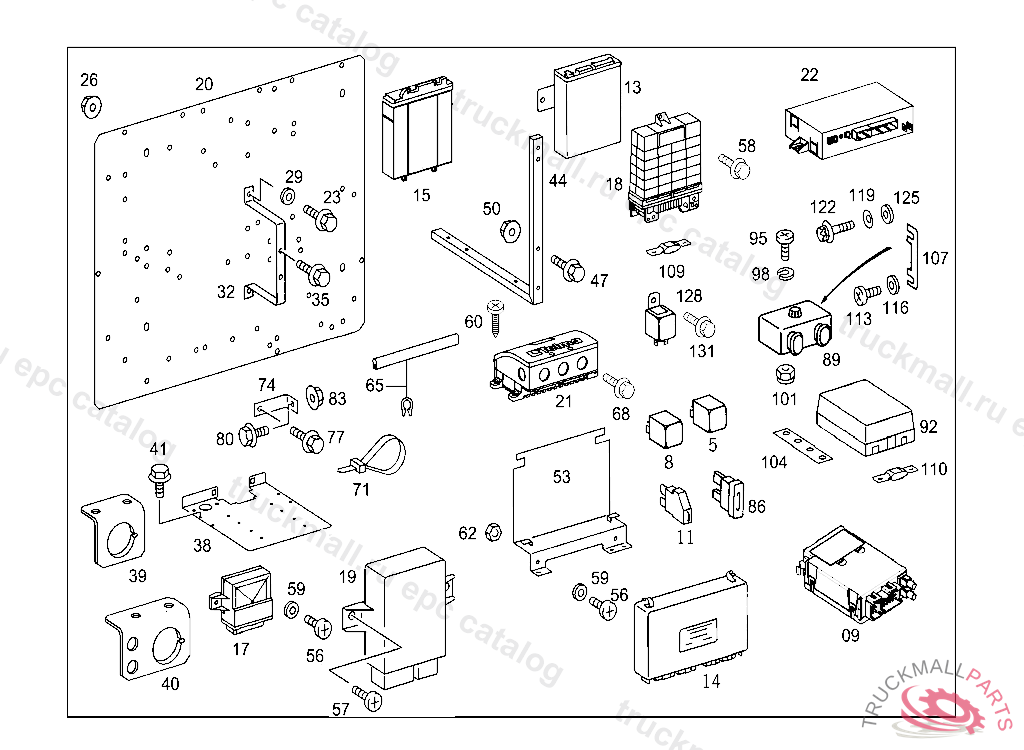

Поз.
Артикул
Описание
5
RELAY24V
5
RELAY ELECTRICAL COMPARTMENT 24 V
8
SENDER UNIT (HAZARD WARNING LIGHT SENDER UNIT), ELECTRONIC
9
ELECTRONICS TELEMATIC CENTRAL LOCKING MECHANISM
11
DIODECINZA
14
ELECTRONICS CPC 1 CONTROL UNIT CPC, ADD PARAMETERS, SEE VEDOC OR OLD CONTROL UNIT SOFTWARE REQUIRED,MUST BE PARAMETERIZED
14
ELECTRONICS ELECTRONIC CONTROL ADM (FR)
14
ELECTRONICS CPC 1 CONTROL UNIT CPC, Replaced By: A0024464102
14
ADAPTATION MODULE. ELECTRONICS , Replaced By: A0004462635
15
ELECTRONICS220 KW
15
ELECTRONICS AUTOMATIC TRANSMISSION 160 KW
15
ELECTRO. TRS. CTRL. UNIT
15
ELECTRO. TRS. CTRL. UNIT
17
CONTROL UNIT TWO-SPEED REAR AXLE
17
RELAY"U14"
18
ELECTRONICS AUTOMATIC TRANSMISSION ZF - 5HP500
19
19
CONTROL UNIT RETARDER "TELMA"
20
PLATE (MOUNTING PLATE)
22
ELECTRONICS ON-BOARD COMPUTER CONTROL UNIT FM 200 PLUS
23
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
26
NUT HORN TO BRACKET M8
26
NUT RELAY TO BRACKET M5
29
WASHER BRACKET TO LEFT SIDE MEMBER
32
BRACKET MOUNTING PLATE
35
SCREW. HEXAGON HEAD BOLT RELAY TO BRACKET M5X16
38
BRACKET
39
BRACKET DIAGNOSIS PLUG SOCKET
40
BRACKET
41
SCREW. HEXAGON HEAD BOLT RELAY TO BRACKET M5X16
41
SHEET METAL SCREW BRACKET TO ELECTRICAL APPARATUS COMPARTMENT 4,8X19
44
CONSOLE
47
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
50
NUT HORN TO BRACKET M8
53
BRACKET , Replaced By: A6885400273
53
BRACKET BRACKET TO BRACKET ON CAB
56
SCREW CLAMP MOUNTING M 6X16
56
SCREW , Replaced By: N000000001146
56
HEXALOBULAR BOLT PLATE TO BRACKET M6X40
57
SCREW CABLE TO ALTERNATOR
57
SCREW BRACKET TO FIRE WALL
57
SCREW. HEXAGON HEAD BOLT RELAY TO BRACKET M5X16
58
SCREW BRACKET AND CLAMP M6X20
59
WASHER PLUG SOCKET TO BRACKET
59
WASHER , Replaced By: A3609902340
59
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
60
TAPPING SCREW MOUNTING PARTS 4.8X16
62
NUT BRACKET TO FIRE WALL
62
NUT BALL PIVOT TO LEVER
62
NUT , Replaced By: N913023006001
65
RUBBER SECTION AT LEFT SIDE MEMBER 85 MM
65
EDGE GUARD SECTION AT LEFT SIDE MEMBER 85 MM
68
SCREW SIDE MARKER LAMP
71
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
71
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
71
LOOM TIE
71
LOOM TIE ELECTRIC CABLE MOUNTING
71
LOOM TIE AIR INTAKE HOSE TO CLAMP
74
BRACKET ELECTRICAL COMPARTMENT,SIDE
77
SCREW. HEXAGON HEAD BOLT RELAY TO BRACKET M5X16
80
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
80
SCREW BATTERY CABLE TO BRACKET M6X45
80
SCREW , Replaced By: N914146006102
83
NUT BRACKET TO FIRE WALL
86
FUSE10 A
86
FUSE7,5 A
86
FUSE7,5 A
86
FUSE5 A
86
FUSE5 A
86
FUSE15 A
86
FUSE15 A
86
FUSE10 A
89
FUSE BOX
92
FUSE BOX MIDI-LOCK
95
SCREW MOUNTING OF INSTRUMENT PANEL
95
SCREW SIDE MARKER LAMP
98
LOCK WASHER T-FITTING TO BRACKET
101
NUT RELAY TO BRACKET M5
101
NUT TWO-WAY VALVE TO BRACKET
104
CONTACT BRIDGE QUADRUPLE TO A 000 540 20 50
107
FUSE50 A
109
FUSE LINK BASE BOX PLUS 100 A
109
FUSE LINK
110
FUSE50 A
113
SCREW MOUNTING OF INSTRUMENT PANEL
113
SCREW. HEXALOBULAR BOLTM5X8
113
SCREW STEP SWITCH AM 5X8
116
WASHER FUSE TO FUSE BOX
119
DISC SPRING
122
SCREW BRACKET TO COVERING
125
WASHER PLUG SOCKET TO BRACKET
