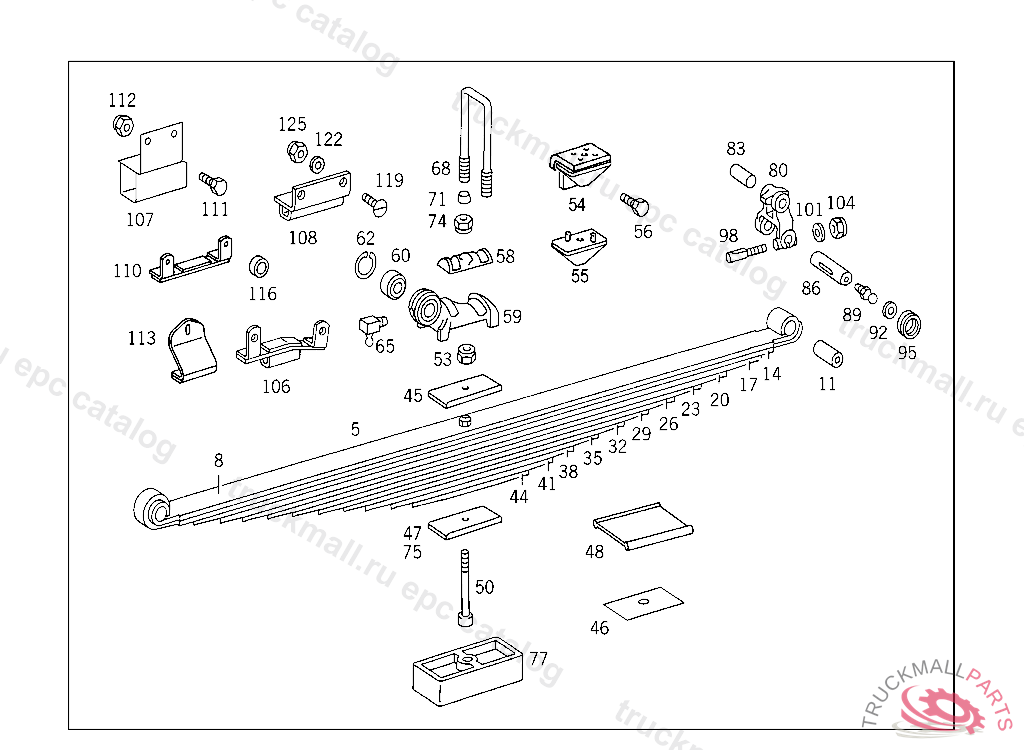

Поз.
Артикул
Описание
5
REAR SPRING 8-LEAF, FROM IDENT-NO.: B 887911 EXCEPT: B 887915, B 887936, B 888020,B 888023, B 888026*B 959728
5
REAR SPRING ,B 959729D 030874
5
REAR SPRING 9-LEAF
5
REAR SPRING ,D 030875
8
SPRING LEAF NO.1,B 959729
8
SPRING LEAF NO.1, FROM IDENT-NO.: B 887911 EXCEPT: B 887915, B 887936, B 888020,B 888023, B 888026*B 959728
11
BUSHING
11
BUSHING
14
SPRING LEAF NO.2, FROM IDENT-NO.: B 887911 EXCEPT: B 887915, B 887936, B 888020,B 888023, B 888026*B 959728
14
SPRING LEAF ,B 959729
17
SPRING LEAFNO.3, FROM IDENT-NO.: B 887911 EXCEPT: B 887915, B 887936, B 888020,B 888023, B 888026*B 959728
20
SPRING LEAFNO.4, FROM IDENT-NO.: B 887911 EXCEPT: B 887915, B 887936, B 888020,B 888023, B 888026*B 959728
20
SPRING LEAF ,B 959729
23
SPRING LEAFNO.5, FROM IDENT-NO.: B 887911 EXCEPT: B 887915, B 887936, B 888020,B 888023, B 888026*B 959728
23
SPRING LEAF ,B 959729
26
SPRING LEAF ,B 959729
26
SPRING LEAFNO.6, FROM IDENT-NO.: B 887911 EXCEPT: B 887915, B 887936, B 888020,B 888023, B 888026*B 959728
47
SPACER
48
PLASTIC SECTION , ORDER BY THE METER
50
SPRING BOLT ,D 030874
50
SPRING BOLTAM 12X225,D 030875
53
NUT BRACKET TO SIDE MEMBER
59
PLATE TORSION BAR TO REAR AXLE, 752309
60
JOINT BEARING TORSION BAR TO LINK,5 903513
60
JOINT BEARING TORSION BAR TO LINK,5 903513
62
LOCK RING TORSION BAR TO LINK,5 903513
65
GREASE NIPPLE
65
GREASE NIPPLE
68
U-BOLT , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE ONLY REPLACEABLE BY PAIRS5 999999K 000001 - K 028584, Replaced By: A6793510625, +001A6793250031
68
U-BOLT , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE ONLY REPLACEABLE BY PAIRS5 999999K 000001 - K 028584, Replaced By: A6793510725, +001A6793250031
68
U-BOLT REAR SPRING TO REAR AXLE 400 MM
68
U-BOLT REAR SPRING TO REAR AXLE 390 MM
68
U-BOLT REAR SPRING TO REAR AXLE
71
WASHER FRONT SPRINGS TO FRONT AXLE
74
NUT TORSION BAR TO BEARING BRACKET,5 904661
75
SPACER AT REAR AXLE
77
PAD REAR SPRING TO REAR AXLE
77
SPACER REAR SPRING TO REAR AXLE,D 030875
80
SHACKLE REAR SPRING SUSPENSION
83
BUSHING
83
BUSHING
86
SHACKLE PIN REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS
86
SHACKLE PIN REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS
86
SHACKLE PIN
89
GREASE NIPPLE PROTECTIVE TUBE
92
WASHER AS REQUIRED 4.0 MM
92
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
92
WASHER AS REQUIRED 4.2 MM
92
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
95
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
98
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
101
WASHER GROUND CABLE
104
NUT BRACKET TO SIDE MEMBER,XB209706
108
STOP REAR SPRING
113
RUBBER MOUNTING ,D 071382D 104689
116
SPACER TUBE STOP BUFFER TO FRAME
116
SPACER TUBE STOP BUFFER TO FRAME
116
SPACER TUBE RUBBER MOUNTING TO FRAME,B 899980
116
SPACER TUBE RUBBER BUFFER TO FRAME,D 071382
119
SCREW STOP BUFFER TO FRAME
119
SCREW STOP BUFFER TO FRAME
119
SCREW STOP BUFFER TO FRAME
119
SCREW GUSSET PLATE TO SIDE MEMBER
122
WASHER
122
WASHER
125
NUT SPRING CLAMP
125
NUT , Replaced By: N910113014000
125
NUT , Replaced By: N910113014000
