Поз.
Артикул
Описание
5

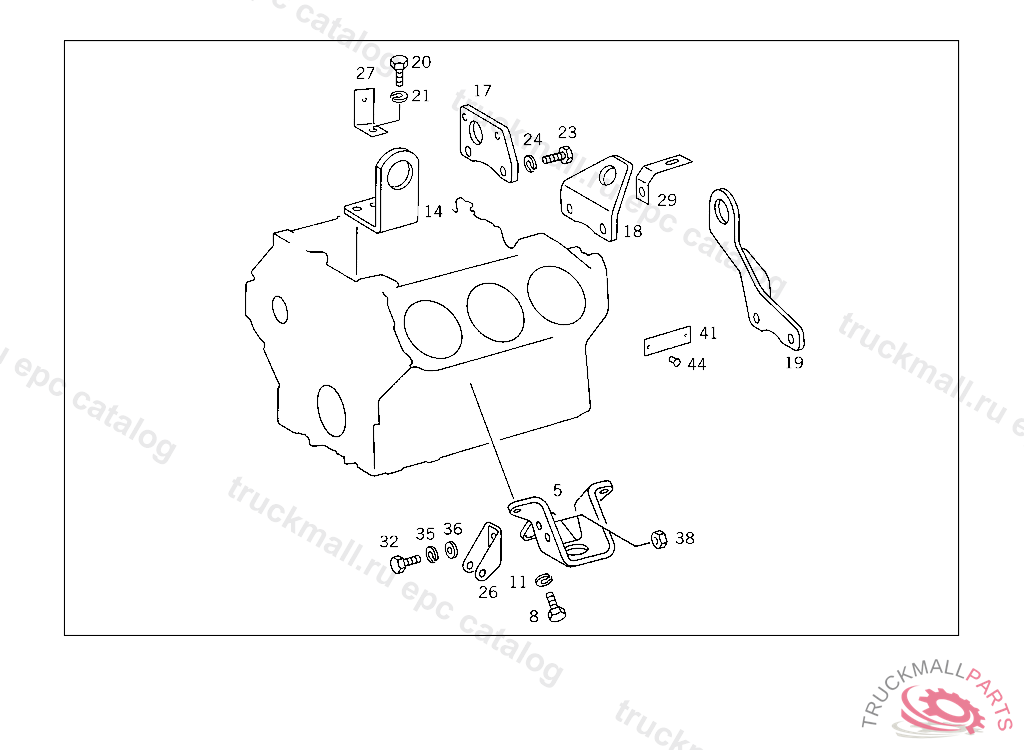

ENGINE SUPPORT FRONT
5
ENGINE SUPPORT , Replaced By: A4412231001
8
SCREW
11
LOCK WASHER FITTING TO BRACKET
14
SUSPENSION EYE FRONT
19
SUSPENSION EYE REAR
20
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
20
SCREW FRONT SUSPENSION EYE TO CYLINDER CRANKCASE M 20X40
21
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
21
LOCK WASHER SPARE WHEEL TO BRACKET
26
BRACKET ENGINE SHOCK ABSORBER
32
SCREW , Replaced By: N304017008034
32
SCREW BRACKET TO CROSS CONNECTION STRUT
32
SCREW END PIECE TO EXHAUST PIPE M 12X30
35
LOCK WASHER FITTING TO BRACKET
36
WASHER BRACKET TO LEFT SIDE MEMBER
36
WASHER , Replaced By: N009021008213
38
NUT. HEXAGON NUT STRAP TO CONSOLE M12X1.5
38
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
38
NUT BRACKET TO SIDE MEMBER
41
TYPE PLATE , STATE ENGINE NO.AND CHASSIS NO.WHEN ORDERING
41
TYPE PLATE , Replaced By: A3665842001
44
RIVET , Replaced By: A0039909597
44
RIVET ENGINE PLATE TO ENGINE
999
BRACKET BREATHER PIPE,702492
