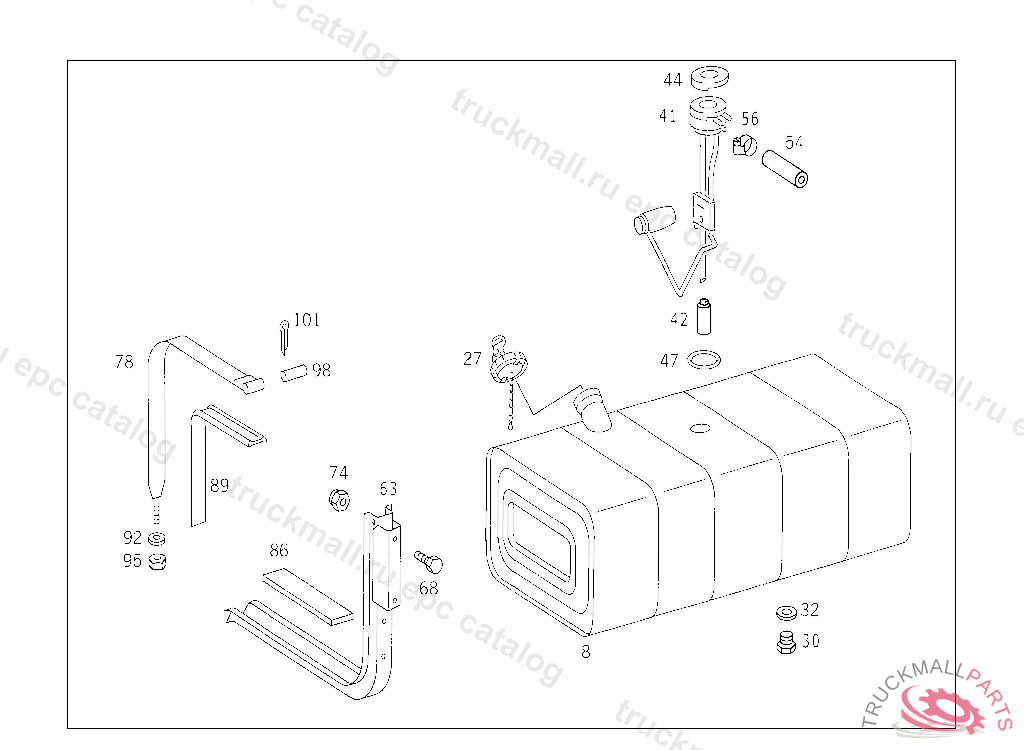

OF 1618 - 384.085 - 47 FUEL SYSTEM
Поз.
Артикул
Описание
8
FUEL TANK
27
FILLER CAP
27
FILLER CAP
30
SCREW PLUG AT TANK
32
SEAL RING AT TANK
41
SENDER UNIT FUEL GAUGE
41
SENDER UNIT FUEL GAUGE
63
CONSOLE FUEL TANK,FRONT AND REAR
68
SCREW , Replaced By: A9429901304
74
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
78
STRAP FUEL TANK TO SUPPORT
86
SHIM BRAKE ANCHOR
89
SHIM FUEL TANK CONSOLE
92
WASHER SUPPORT TO FRAME,D 127794
95
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
98
PIN STRAP TO CONSOLE
98
PIN STRAP TO SUPPORT
101
COTTER PIN STRAP TO SUPPORT
