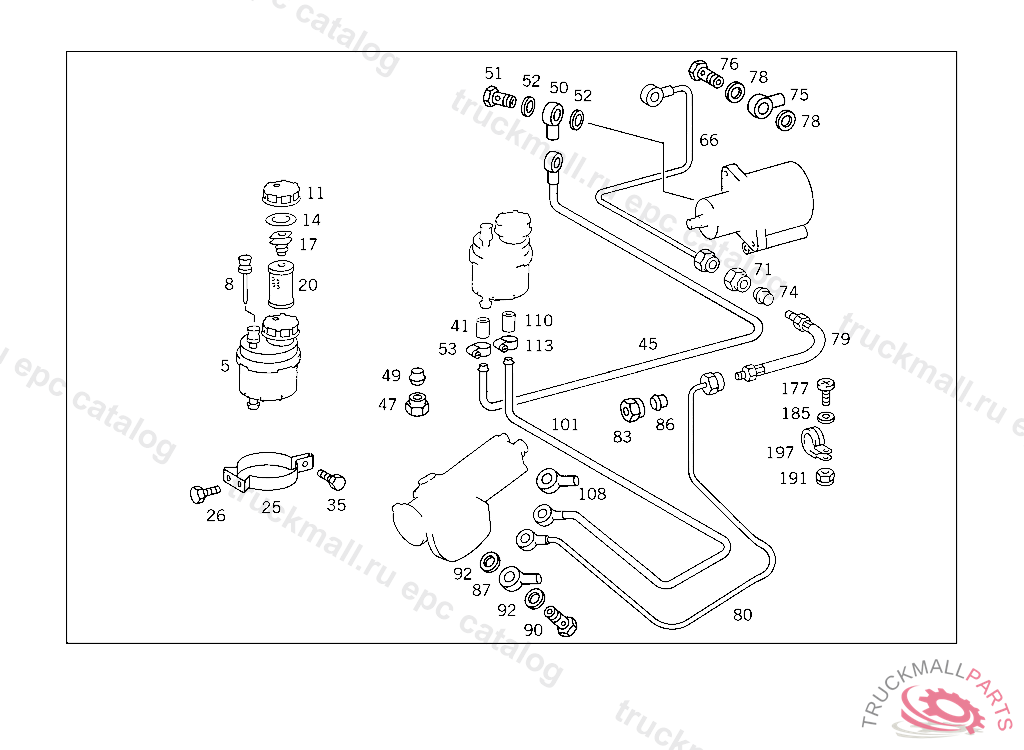

Поз.
Артикул
Описание
5
TANK OIL
8
OIL DIPSTICK
8
OIL DIPSTICK , Replaced By: A0004661167
8
OIL DIPSTICK , Replaced By: A0004660867
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER ELEMENT ,D 441028D 523393
20
FILTER
35
SCREW BRACKET TO SIDE MEMBER
47
UNION NUT LINE CONNECTION, Replaced By: N000000006243
49
GLAND , Replaced By: A0019901267
53
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK
53
CLAMP ,B 862667
53
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
71
UNION NUT LINE CONNECTION, Replaced By: N000000006239
74
GLAND , Replaced By: A0019901967
79
HOSE DELIVERY LINE TO PUMP
79
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
79
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
83
UNION NUT LINE CONNECTION, Replaced By: N000000006239
86
GLAND , Replaced By: A0019901967
92
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
92
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
101
LINE FROM STEERING TO OIL TANK,D 087895
101
LINE FROM STEERING TO OIL TANK
101
LINE FROM STEERING TO OIL TANK
110
HOSE HIGH PRESSURE
110
HOSE , Replaced By: A3859971682
113
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
113
CLAMP , Replaced By: N000000000667
113
CLAMP HOSE TO HEATING PIPE
113
LOOM TIE. CLAMP HOSE TO FLANGE AND TO VALVE
113
LOOM TIE HOSE TO HEATING PIPE
