Поз.
Артикул
Описание

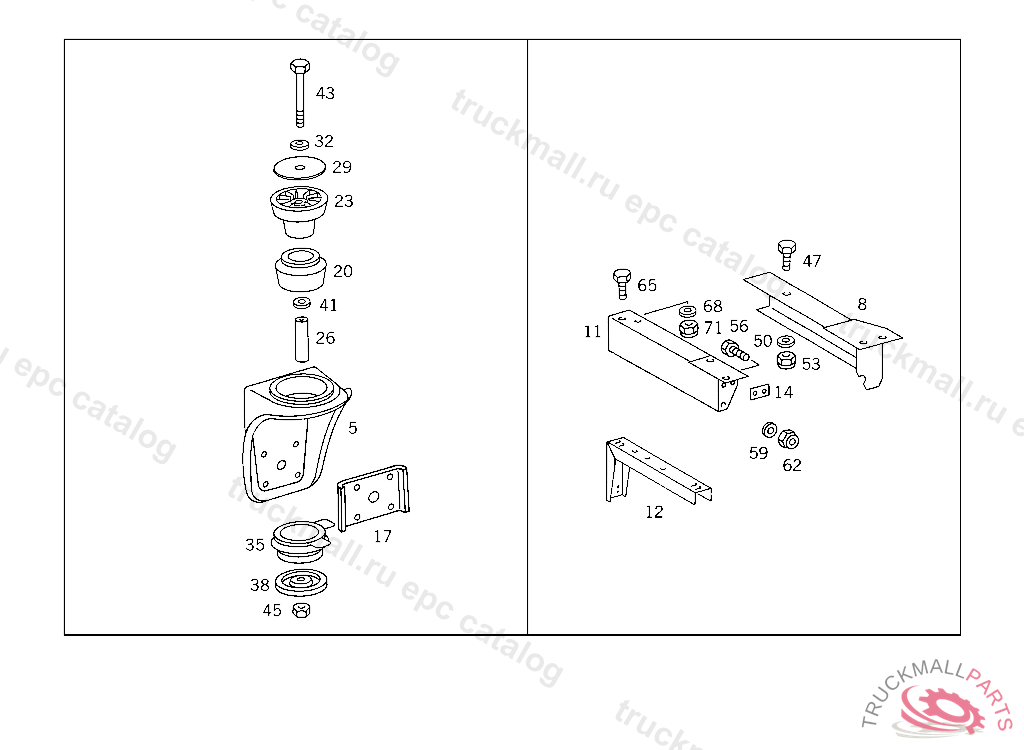

8
BODY SUPPORT FRONT LEFT
11
BODY SUPPORT REAR LEFT
47
SCREW , Replaced By: N304017010040
47
SCREW EXHAUST PIPE TO BRACKET
47
SCREW ANGLE TO CROSS MEMBER M 10X30
50
WASHER GROUND CABLE
53
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
56
SCREW BRACKET TO SIDE MEMBER
56
SCREW RETURN AND SUCTION LINES TO FRAME, FRONT M 12X40
56
SCREW BEARING BRACKET TO SIDE MEMBER
59
WASHER
62
NUT BRACKET TO SIDE MEMBER
65
SCREW ANGLE TO CROSS MEMBER M 10X30
68
WASHER GROUND CABLE
71
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
