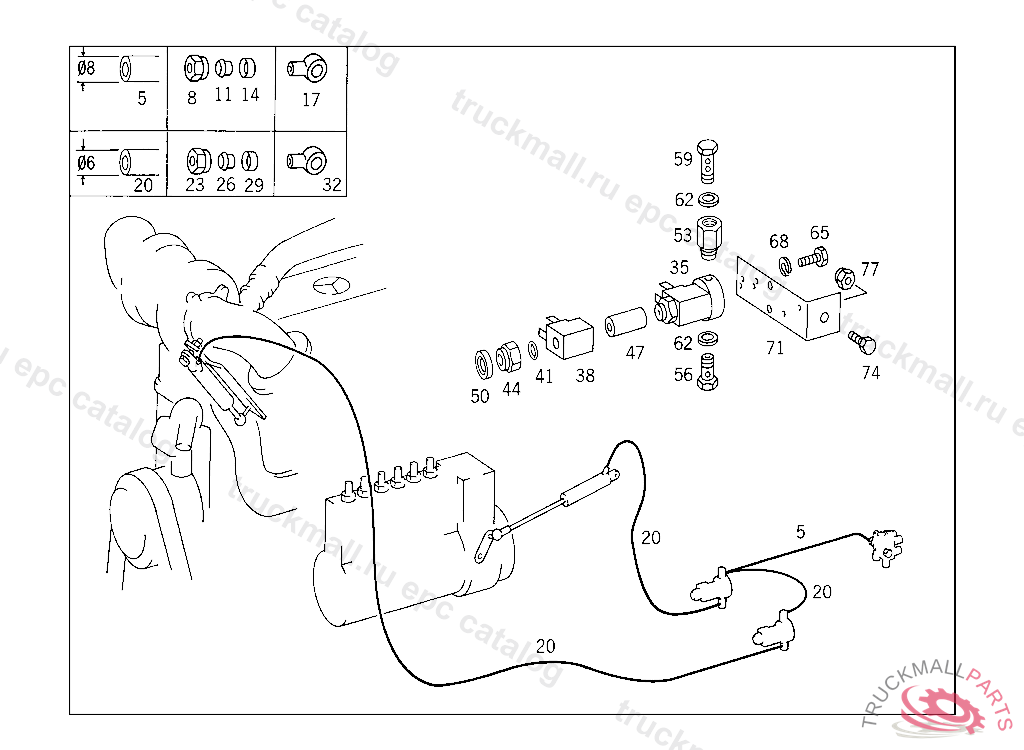

Поз.
Артикул
Описание
5
PLASTIC PIPE8X6 MM, ORDER BY THE METER
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
14
SLEEVE LINE CONNECTION
14
FITTING , Replaced By: N915062006000
17
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
17
BANJO UNION HEATING CONNECTION,K 169122
20
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
23
UNION NUT
26
GLAND , Replaced By: A0019901667
29
SLEEVE LEAK LINE
32
BANJO UNION6/12 MM
35
VALVE 3/2-WAY SOLENOID VALVE
35
VALVE 3/2-WAY
38
MAGNET12 V, TO 345 997 74 36
41
SEAL RING
44
NUT
47
VALVE PART
50
PROTECTIVE CAP
53
FITTING SOLENOID VALVE,CONNECTION: "2"
56
HOLLOW SCREW HEATING CONNECTION
59
HOLLOW SCREW LINE CONNECTION
62
SEAL RING COMPRESSED AIR LINE TO PARKING BRAKE VALVE
65
SCREW 3/2-WAY VALVE TO BRACKET
68
LOCK WASHER PLUG SOCKET
71
71
BRACKET DISTRIBUTOR
74
SCREW BRACKET TO LEFT SIDE MEMBER
74
SCREW , Replaced By: N304017010002
77
NUT BRACKET TO BATTERY CASE
77
NUT BRACKET TO SIDE MEMBER,XB209706
999
NUT PUMP TO BRACKET
999
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
999
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
999
SCREW BRACKET TO FRAME
999
DISTRIBUTOR
999
REPAIR KITTO 388 997 81 36
999
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
