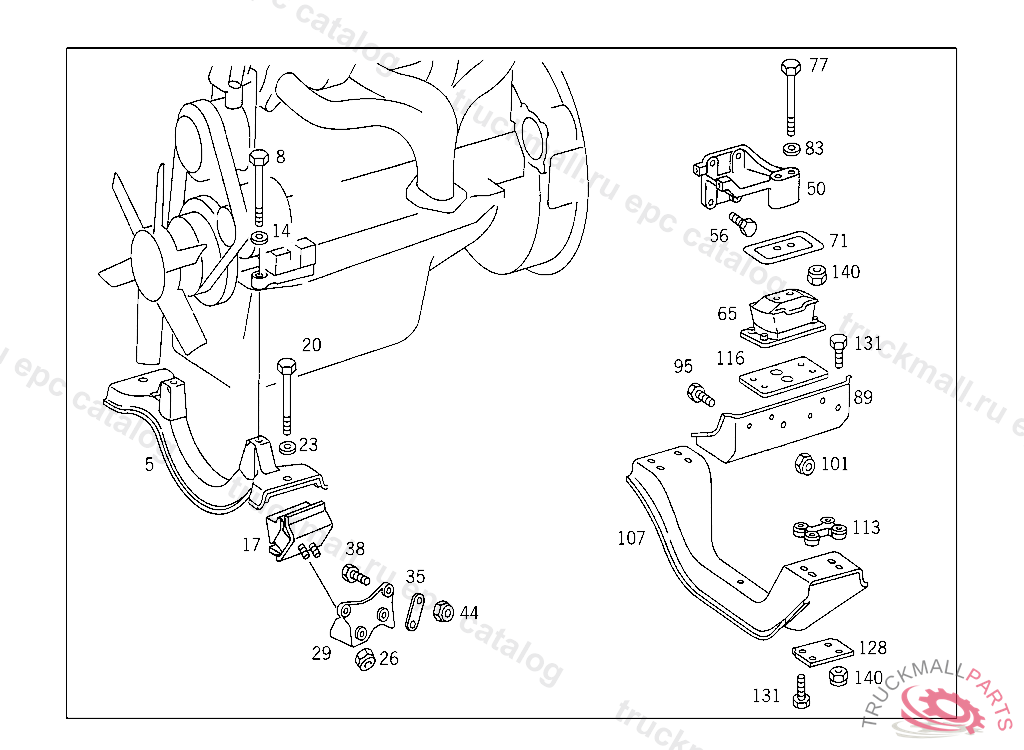

Поз.
Артикул
Описание
5
ENGINE SUPPORT FRONT
14
WASHER CONSOLE TO FRAME
17
RUBBER MOUNTING FRONT,D 034635
17
RUBBER MOUNTING ENGINE SUSPENSION
17
RUBBER MOUNTING FRONT,D 034636
20
SCREW BEARING BRACKET AND PLATE TO FRAME M 16X1.5X40
23
WASHER CONSOLE TO FRAME
26
NUT SUPPORT TO SIDE MEMBER
29
CONSOLE LEFT,D 034635
29
CONSOLE LEFT,D 034636
29
CONSOLE ENGINE FRONT RIGHT MOUNTING
29
CONSOLE RIGHT,D 034636
35
SHIM LEFT AND RIGHT CONSOLES TO SUBSTRUCTURE
38
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
38
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 12X1.5X50
38
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 12X1.5X50
38
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 12X1.5X50
38
SCREW , Replaced By: N000961012184
38
SCREW , Replaced By: N308676012018
44
NUT ALTERNATOR TO SUPPORT
50
ENGINE SUPPORT REAR LEFT
50
ENGINE SUPPORT ENGINE RIGHT SUPPORT
56
SCREW ENGINE REAR SUPPORT TO RUBBER MOUNTING M 16X45
65
RUBBER MOUNTING CLUTCH END
65
RUBBER MOUNTING CLUTCH END
65
RUBBER MOUNTING CLUTCH END
65
RUBBER MOUNTING REAR
65
RUBBER MOUNTING
65
RUBBER MOUNTING REAR
71
SCREENING PLATE REAR RUBBER MOUNTING
77
SCREW ENGINE TO ENGINE REAR MOUNTING M 14X1.5X90
83
WASHER CROSS MEMBER TO SUPPORT
89
CONSOLE REAR RUBBER MOUNTING
95
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
101
NUT ALTERNATOR TO SUPPORT
107
ENGINE CROSS MEMBER REAR
116
WASHER ENGINE REAR SUSPENSION
128
REINFORCEMENT LEFT
128
REINFORCEMENT RIGHT
131
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
131
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X35
131
SCREW SUPPORT TO FRAME M12X1,5X35,D 127794
999
NUT , Replaced By: N910113010002
999
SCREW , Replaced By: N308676012016
999
SCREW BRACKET TO CROSS MEMBER,024208
999
SHIM FRONT LEFT AND RIGHT,D 034636
999
ENGINE STAY , NOT USED
999
ENGINE STAY , NOT USED
999
ENGINE SUPPORT FRONT, NOT USED
999
ENGINE STAY RUBBER MOUNTING TO FRONT CROSS MEMBER
999
RUBBER MOUNTING ENGINE FRONT SUSPENSION
999
RUBBER MOUNTING ENGINE FRONT SUSPENSION
