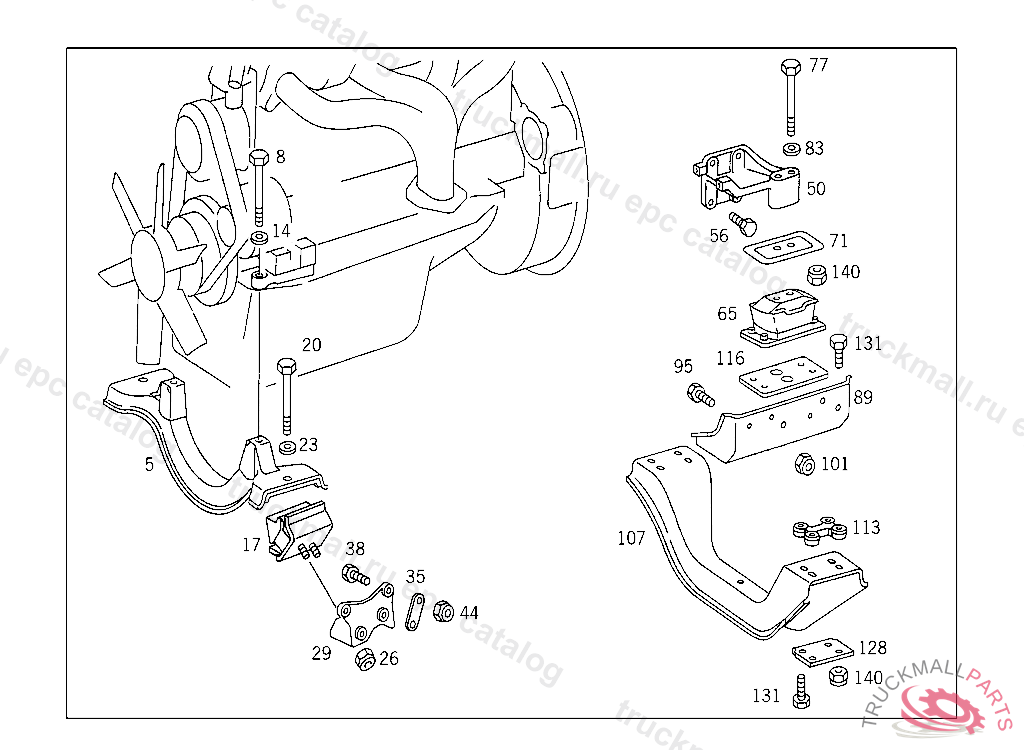

Поз.
Артикул
Описание
5
ENGINE SUPPORT FRONT
8
SCREW , Replaced By: N308676016014
14
WASHER CONSOLE TO FRAME
17
RUBBER MOUNTING FRONT,D 034636
17
RUBBER MOUNTING ENGINE SUSPENSION
17
RUBBER MOUNTING FRONT,D 034635
20
SCREW BEARING BRACKET AND PLATE TO FRAME M 16X1.5X40
23
WASHER CONSOLE TO FRAME
26
NUT SUPPORT TO SIDE MEMBER
29
CONSOLE RIGHT,D 034636
29
CONSOLE ENGINE FRONT RIGHT MOUNTING
29
CONSOLE LEFT,D 034636
29
CONSOLE LEFT,D 034635
35
SHIM LEFT AND RIGHT CONSOLES TO SUBSTRUCTURE
38
SCREW , Replaced By: N308676012018
38
SCREW , Replaced By: N000961012184
38
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 12X1.5X50
38
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 12X1.5X50
38
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 12X1.5X50
38
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
38
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
44
NUT ALTERNATOR TO SUPPORT
50
ENGINE SUPPORT ENGINE RIGHT SUPPORT
50
ENGINE SUPPORT REAR LEFT
56
SCREW ENGINE REAR SUPPORT TO RUBBER MOUNTING M 16X45
65
RUBBER MOUNTING REAR
65
RUBBER MOUNTING
65
RUBBER MOUNTING REAR
65
RUBBER MOUNTING CLUTCH END
65
RUBBER MOUNTING CLUTCH END
65
RUBBER MOUNTING CLUTCH END
71
SCREENING PLATE REAR RUBBER MOUNTING
77
SCREW ENGINE TO ENGINE REAR MOUNTING M 14X1.5X90
83
WASHER CROSS MEMBER TO SUPPORT
89
CONSOLE REAR RUBBER MOUNTING
95
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
101
NUT ALTERNATOR TO SUPPORT
107
ENGINE CROSS MEMBER REAR
116
WASHER ENGINE REAR SUSPENSION
128
REINFORCEMENT RIGHT
128
REINFORCEMENT LEFT
131
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X35
131
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 12X1.5X50
131
SCREW VIBRATION ABSORBER TO FRAME M 12X1.5X55
131
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
140
NUT ALTERNATOR TO SUPPORT
999
ENGINE STAY RUBBER MOUNTING TO FRONT CROSS MEMBER
999
SHIM FRONT LEFT AND RIGHT,D 034636
