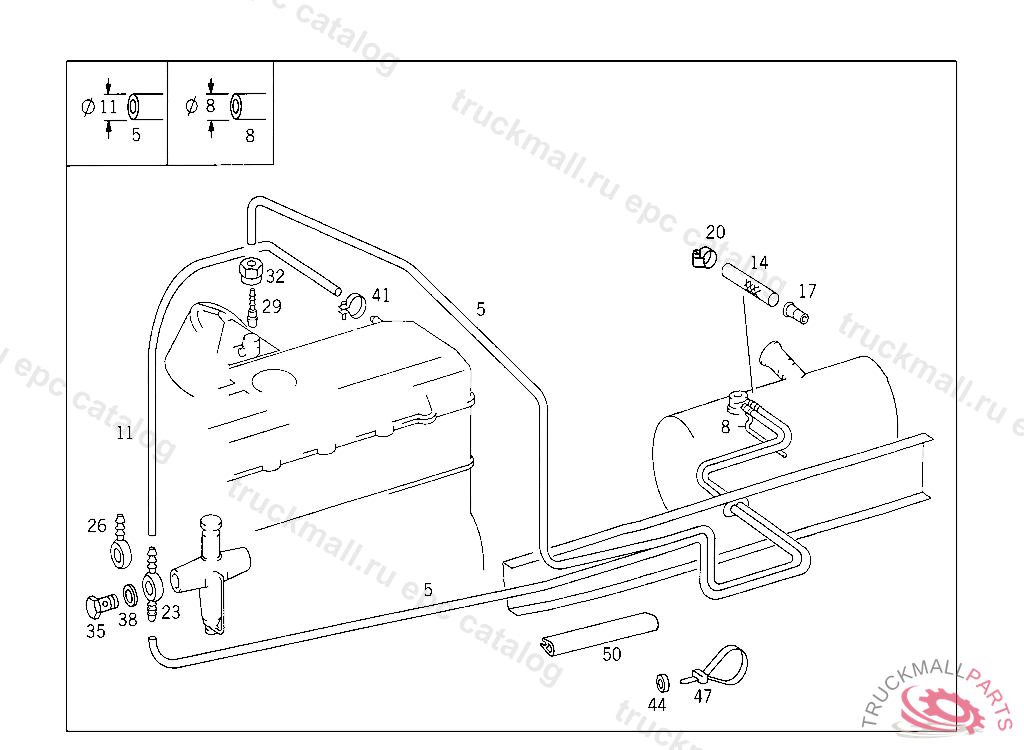

Поз.
Артикул
Описание
5
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
8
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
PLASTIC PIPE8X6 MM, ORDER BY THE METER
14
HOSE FEED LINE AND RETURN LINE
14
RUBBER HOSE,. HOSE AT SENDER UNIT
17
SLEEVE LINE CONNECTION
20
CLAMP , Replaced By: N916017011001
20
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
26
BANJO UNION
29
INTERMEDIATE PIECE CONNECTION OF FUEL LINES
29
FITTING RETURN
32
NUT. UNION NUT RETURN
35
HOLLOW SCREW
38
SEALING RING. SEAL RING ENGINE BREATHING
44
WASHER , Replaced By: A3609902340
47
LOOM TIE , Replaced By: A3459977390
47
LOOM TIE ELECTRIC CABLE MOUNTING
47
LOOM TIE LINE MOUNTING
50
RUBBER SECTION AT LEFT SIDE MEMBER 85 MM
