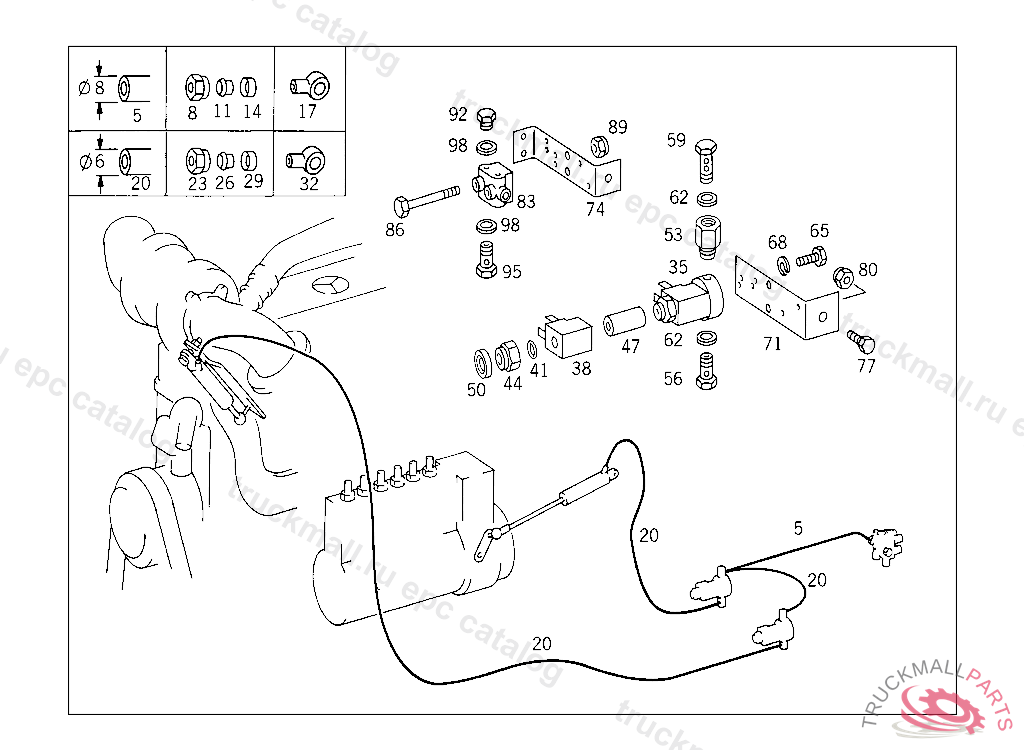

Поз.
Артикул
Описание
5
PLASTIC PIPE8X6 MM, ORDER BY THE METER
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
14
SLEEVE LINE CONNECTION
14
FITTING , Replaced By: N915062006000
17
BANJO UNION HEATING CONNECTION,K 169122
17
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
20
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
23
UNION NUT
26
GLAND , Replaced By: A0019901667
29
SLEEVE LEAK LINE
32
BANJO UNION6/12 MM
35
VALVE , Replaced By: A3869977336, +001A3454297736, +001A3509977472
35
VALVE , Replaced By: A3649977136, +001A3454297736, +001A3509977472
35
VALVE (THREE-WAY SOLENOID VALVE)
38
MAGNET24 V, TO 364 997 71 36
41
SEAL RING
44
NUT
47
VALVE PART
50
PROTECTIVE CAP
53
FITTING SOLENOID VALVE,CONNECTION: "2"
56
HOLLOW SCREW HEATING CONNECTION
59
HOLLOW SCREW LINE CONNECTION
62
SEAL RING COMPRESSED AIR LINE TO PARKING BRAKE VALVE
65
SCREW 3/2-WAY VALVE TO BRACKET
68
LOCK WASHER PLUG SOCKET
71
77
SCREW BRACKET TO LEFT SIDE MEMBER
80
NUT BRACKET TO SIDE MEMBER
83
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
83
DISTRIBUTOR
86
SCREW BRACKET TO FRAME
89
NUT PUMP TO BRACKET
92
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
95
HOLLOW SCREW HEATING CONNECTION
98
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
999
REPAIR KITTO 388 997 81 36
