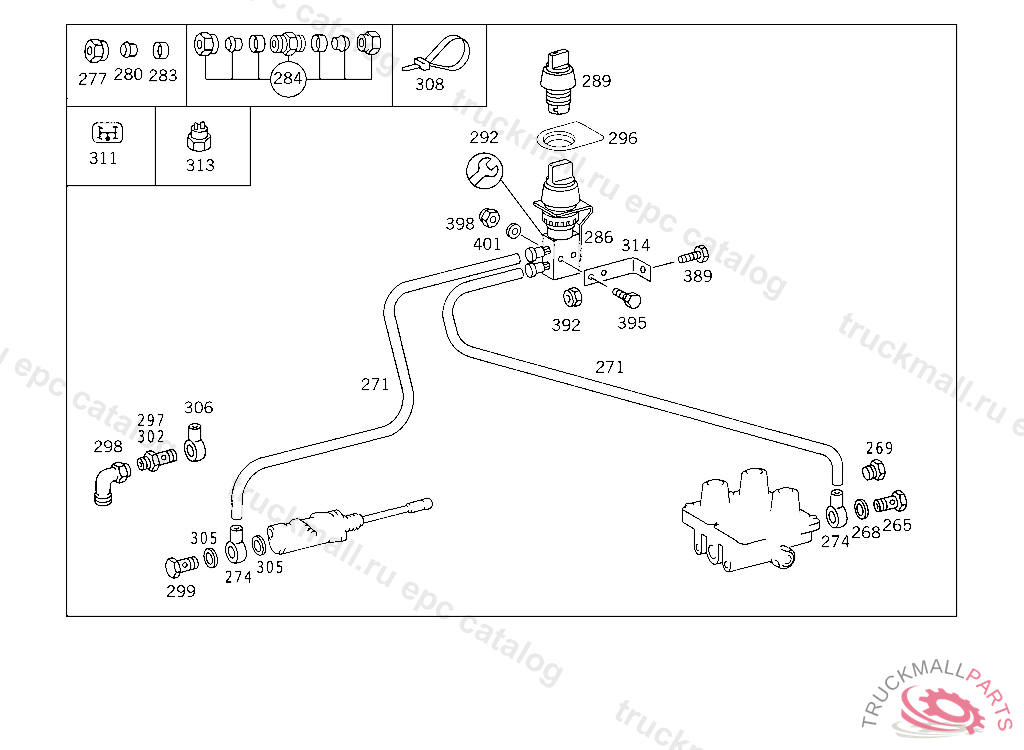

Поз.
Артикул
Описание
265
HOLLOW SCREW LEFT DISTRIBUTOR,CONNECTION: "70"
265
HOLLOW SCREW LINE TO OIL RADIATOR
265
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
268
SEAL RINGTO 006 997 00 72
268
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
269
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
271
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
274
BANJO UNION
274
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
274
BANJO UNION
277
UNION NUT
280
GLAND , Replaced By: A0019901667
283
SLEEVE LEAK LINE
284
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
286
VALVE (THREE-WAY SOLENOID VALVE), NO.8650I.......I I I II .......INO.9985I I I II I
286
VALVE 3/2-WAY VALVE
286
VALVE 3/2-WAY VALVE
286
VALVE (SOLENOID VALVE) WABCO
286
VALVE 3/2-WAY VALVE
286
VALVE (THREE-WAY SOLENOID VALVE),047699 NO.8650I.......I I I II .......INO.9985I I I II I
289
ACTUATING PARTTO 384 997 71 36
292
REPAIR KITTO 384 997 71 36
292
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
296
SHIM THREE-WAY VALVE,047699 NO.8650I.......I I I II .......INO.9985I I I II I
296
SHIM THREE-WAY VALVE,047698 NO.8650I.......I I I II .......INO.9985I I I II I
297
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
298
FITTING , Replaced By: A0019909871
299
HOLLOW SCREW LINE CONNECTION
299
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
299
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
299
HOLLOW SCREW LINE CONNECTION
302
HOLLOW SCREW FITTING COMPRESSED AIR LINE TO OPERATING CYLINDER
305
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
305
SEAL RING , Replaced By: N007603010110
305
SEAL RING LINE CONNECTION
305
SEAL RING PNEUMATIC VALVE
306
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
308
LOOM TIE , Replaced By: A3459977390
308
LOOM TIE ELECTRIC CABLE MOUNTING
311
GUIDE SIGN P.T.O.
313
SWITCH PRESSURE SWITCH
314
BRACKET 3/2-WAY VALVE
389
SCREW BRACKET TO RIGHT SIDE MEMBER
389
SCREW BRACKET TO RIGHT SIDE MEMBER
392
NUT BRACKET TO SIDE MEMBER
395
SCREW 3/2-WAY VALVE TO BRACKET M8X55
395
SCREW VALVE TO BRACKET
398
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
401
WASHER TRAILER PLUG SOCKET TO BRACKET
999
VALVE
999
SPACER TUBE LEVER TO TRANSMISSION CASE
