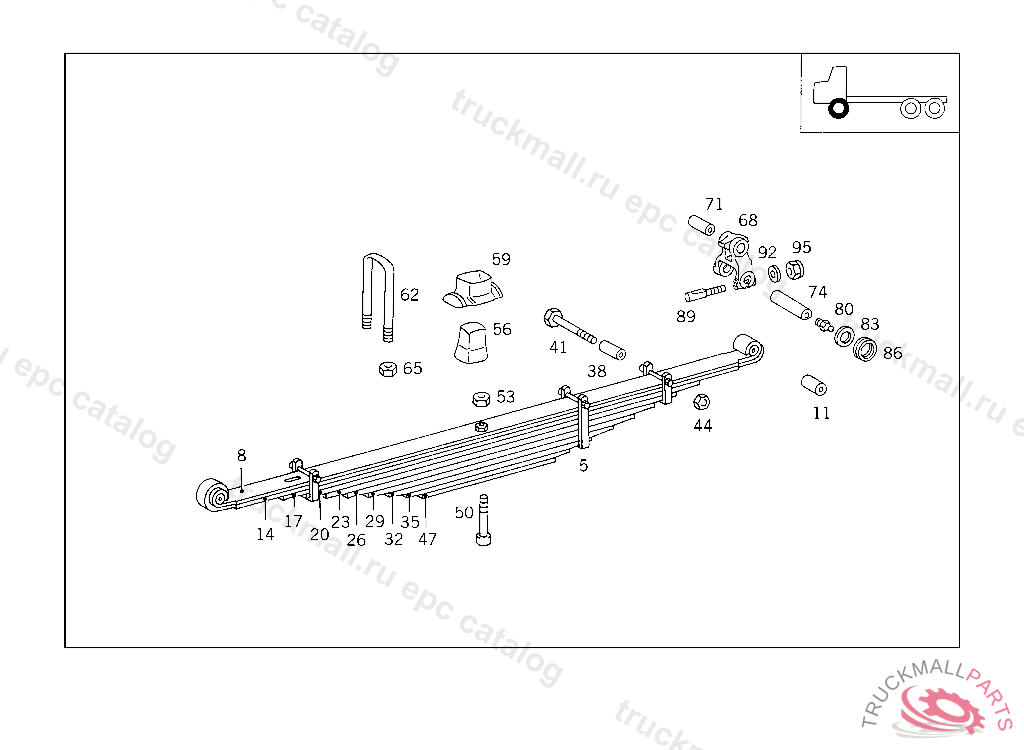

Поз.
Артикул
Описание
5
FRONT SPRING 9-LEAF,16002049
8
SPRING LEAF
11
BUSHING
11
BUSHING
14
SPRING LEAFNO.2,16002049
17
SPRING LEAFNO.3 TO 345 320 02 02,16002049
20
SPRING LEAFNO.4,16002049
23
SPRING LEAFNO.5,16002049
26
SPRING LEAFNO.6 TO 345 320 02 02,16002049
29
SPRING LEAFNO.7,16002049
32
SPRING LEAFNO.8,16002049
35
SPRING LEAFNO.9,16002049
38
SPACER TUBE , Replaced By: A0003213253
41
SCREW AT SHIFT LEVER M 8X100
44
NUT LEVER TO SHIFTING SHAFT
47
SHIM
50
SPRING BOLTM 12X140
53
NUT SPRING BOLT
56
RUBBER BUFFER FRONT SPRINGS TO FRONT AXLE
59
PLATE FRONT SPRINGS TO FRONT AXLE
59
PLATE FRONT SPRINGS TO FRONT AXLE
62
U-BOLT FRONT SPRINGS TO FRONT AXLE M18X1,5X230 MMTO 695 320 02 02
62
U-BOLT FRONT SPRINGS TO FRONT AXLE M18X1,5X210 MM
65
NUT TORSION BAR TO BEARING BRACKET,5 904661
68
SHACKLE FRONT SPRING SUSPENSION,REAR
71
BUSHING
71
BUSHING
74
SHACKLE PIN FRONT SPRING TO SPRING SHACKLE AND TO SPRING REAR BRACKET
80
GREASE NIPPLE PROTECTIVE TUBE
83
WASHER AS REQUIRED 4.00 MM
83
WASHER AS REQUIRED 4.2 MM
83
WASHER AS REQUIRED 4.20 MM
83
WASHER AS REQUIRED
86
SEAL RING SPRING SUSPENSION
89
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
92
WASHER GROUND CABLE
95
NUT , Replaced By: N910113010000
