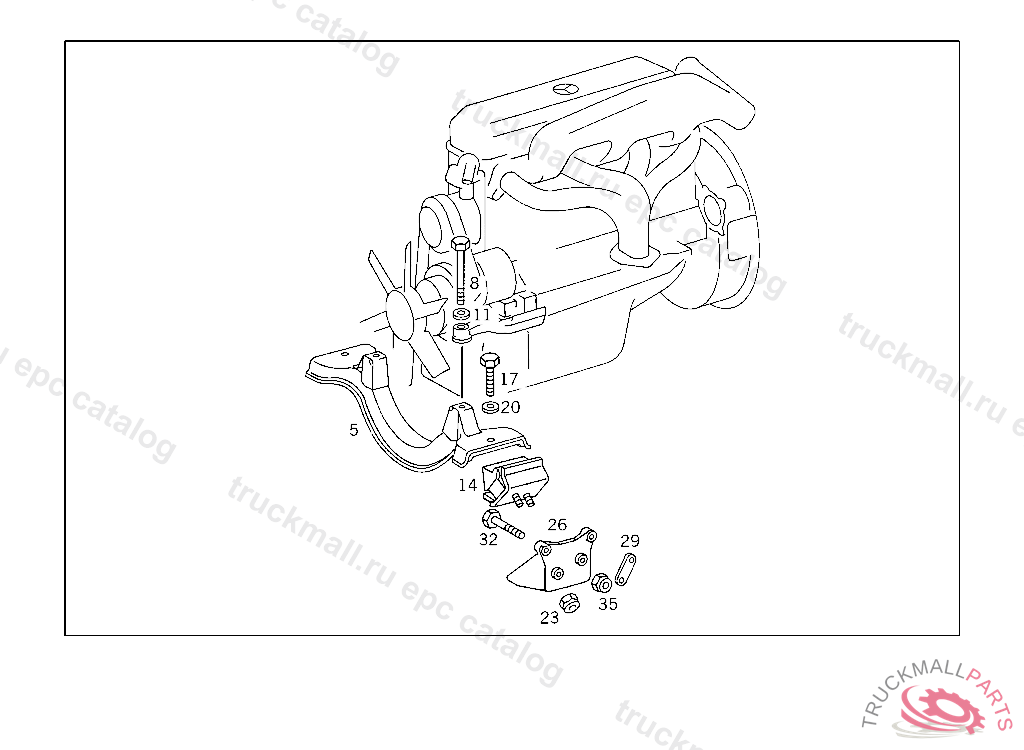

Поз.
Артикул
Описание
5
ENGINE SUPPORT FRONT
8
SCREW , Replaced By: N308676016014
11
WASHER CONSOLE TO FRAME
14
RUBBER MOUNTING FRONT,D 034635
14
RUBBER MOUNTING ENGINE SUSPENSION
17
SCREW ENGINE SUPPORT TO RUBBER MOUNTING M 16X1.5X40
20
WASHER CONSOLE TO FRAME
23
NUT SUPPORT TO SIDE MEMBER
26
CONSOLE LEFT,D 034635
26
CONSOLE ENGINE FRONT RIGHT MOUNTING
26
CONSOLE LEFT,D 034636
26
CONSOLE RIGHT,D 034636
29
SHIM LEFT AND RIGHT CONSOLES TO SUBSTRUCTURE
32
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 12X1.5X50
32
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
32
SCREW , Replaced By: N000961012184
32
SCREW , Replaced By: N308676012018
35
NUT , Replaced By: N910113012003
999
ENGINE STAY RUBBER MOUNTING TO FRONT CROSS MEMBER
999
SHIM FRONT LEFT AND RIGHT,D 034636
