Поз.
Артикул
Описание
5

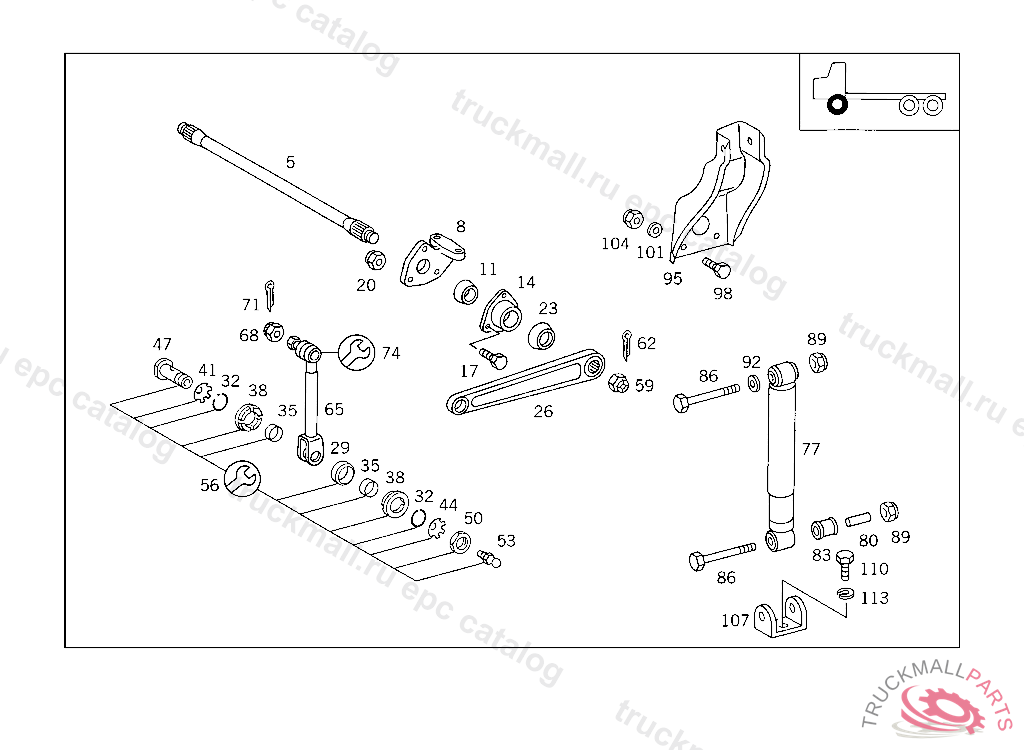

TORSION BAR BODY MOUNTING
8
BEARING BRACKET TORSION BAR,FRONT
11
RUBBER MOUNTING STABILIZER,D 012295
14
HOUSING STABILIZER,D 012295
17
SCREW EXHAUST PIPE TO BRACKET
20
NUT , Replaced By: N910113010000
23
SPACER RING FRONT AXLE STABILIZER
26
LEVER FRONT AXLE STABILIZER
29
JOINT BEARING FRONT AXLE STABILIZER
29
JOINT BEARING , Replaced By: A0009817331
29
JOINT BEARING , Replaced By: A0009817231
32
SNAP RING FRONT AXLE STABILIZER
35
SPACER TUBE
38
SEAL RING ARTICULATED ROD TO LEVER,D 012295
38
SEAL RING ROD TO TORSION BAR
41
TOOTHED WASHER ROD TO TORSION BAR
44
TOOTHED WASHER ROD TO TORSION BAR
47
PIN ARTICULATED ROD TO LEVER,D 012295
50
NUT ARTICULATED ROD TO LEVER,D 012295
53
GREASE NIPPLE PROTECTIVE TUBE
56
REPAIR KIT TORSION BAR,FRONT,D 012295
59
NUT LEVER TO TORSION BAR
62
COTTER PIN6.3X63 MM
65
ROD
65
ROD ,D 058228
68
NUT STEERING BRACKET TO FRAME
71
COTTER PIN
74
REPAIR KIT
77
SHOCK ABSORBER FRONT
77
SHOCK ABSORBER FRONT,B 970391
77
SHOCK ABSORBER FRONT
80
SPACER TUBE , Replaced By: A0003232550
83
RUBBER MOUNTING , UP TO IDENT-NO.: LB887910 ALSO INSTALLED IN: LB887915,LB887936,LB888020,LB888023,LB888026* FROM IDENT-NO.: SEE STANDARD MICROFICHE EXCEPT:LB887915,LB887936,LB888020,LB888023,LB888026*
86
SCREW SHOCK ABSORBER TO TOP BRACKET
89
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
92
WASHER , Replaced By: N000125017016
95
BRACKET RIGHT
95
BRACKET LEFT
98
SCREW ENGINE SUPPORT TO SIDE MEMBERS M 12X40
98
SCREW SUPPORT TO FRAME M12X1,5X35,D 127794
101
WASHER AIR RESERVOIR CONSOLE TO SIDE MEMBER
104
NUT , Replaced By: N910113012003
107
BEARING BRACKET SHOCK ABSORBER,BOTTOM
110
SCREW CONSOLE TO BRACKET M 12X1.5X25,20 L
113
LOCK WASHER FITTING TO BRACKET
