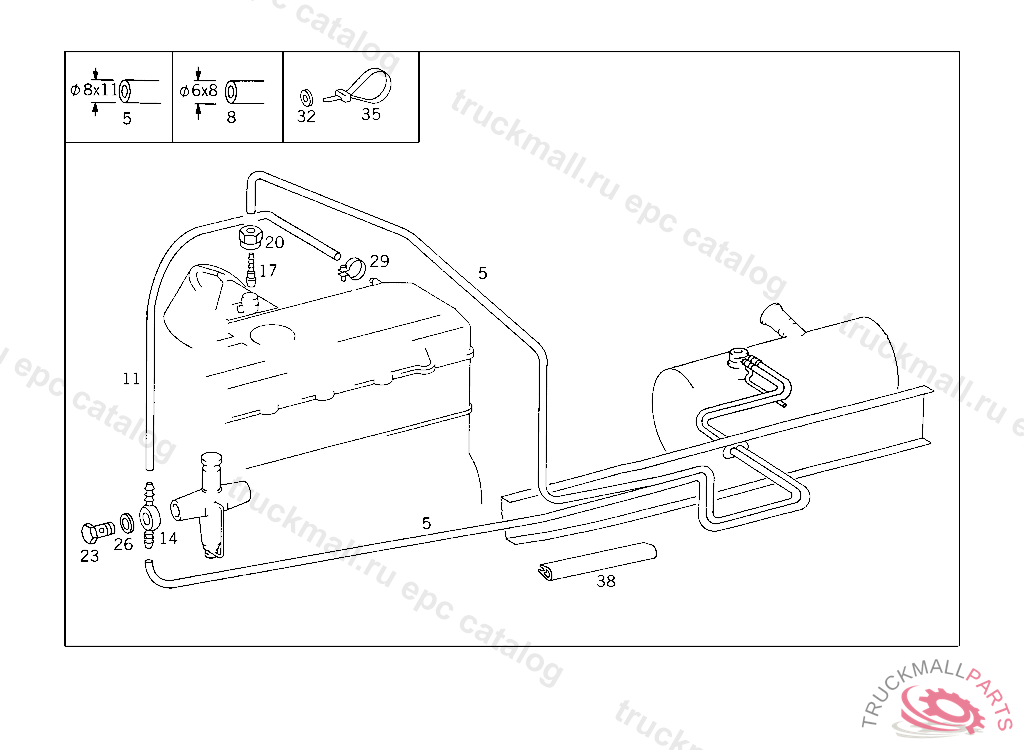

Поз.
Артикул
Описание
5
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
8
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
PLASTIC PIPE8X6 MM, ORDER BY THE METER
11
HOSE , Replaced By: A3849977082, +001A3829907088
14
BANJO UNION FEED
17
CONNECTOR
20
NUT. UNION NUT RETURN
23
HOLLOW SCREW
26
SEALING RING. SEAL RING ENGINE BREATHING
29
CLAMP LINE MOUNTING
32
WASHER , Replaced By: A3609902340
35
LOOM TIE ELECTRIC CABLE MOUNTING
35
LOOM TIE , Replaced By: A3459977390
35
LOOM TIE LINE MOUNTING
38
EDGE GUARD SECTION AT LEFT SIDE MEMBER 85 MM
38
EDGE GUARD SECTION AT LEFT SIDE MEMBER 85 MM
