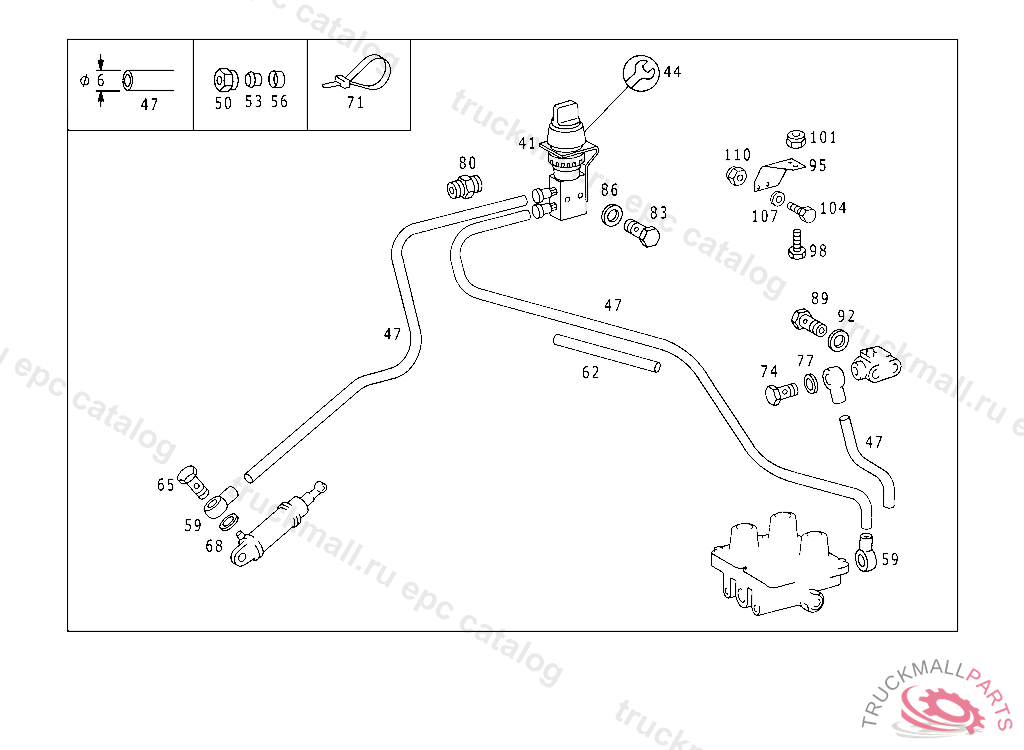

Поз.
Артикул
Описание
41
VALVE 3/2-WAY VALVE
41
VALVE 3/2-WAY VALVE
44
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
47
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
50
UNION NUT
53
GLAND , Replaced By: A0019901667
56
SLEEVE LEAK LINE
59
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
59
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
62
INSULATING HOSE COLOR CODE BLUE 2X0,01 MM
62
INSULATING HOSE COLOR CODE GREEN
65
HOLLOW SCREW LINE CONNECTION
68
SEAL RING , Replaced By: N007603010110
71
LOOM TIE ELECTRIC CABLE MOUNTING
71
LOOM TIE , Replaced By: A3459977390
74
HOLLOW SCREW HEATING CONNECTION
74
HOLLOW SCREW HEATING CONNECTION
77
SEAL RING , NOT USED
77
SEAL RING , NOT USED
80
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
95
BRACKET 3/2-WAY VALVE
98
SCREW BRACKET TO LEFT SIDE MEMBER
101
NUT BRACKET TO SIDE MEMBER
104
SCREW VALVE TO BRACKET M 8X60
107
WASHER TRAILER PLUG SOCKET TO BRACKET
110
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
110
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
KNOB , NOT USED
