Поз.
Артикул
Описание
300

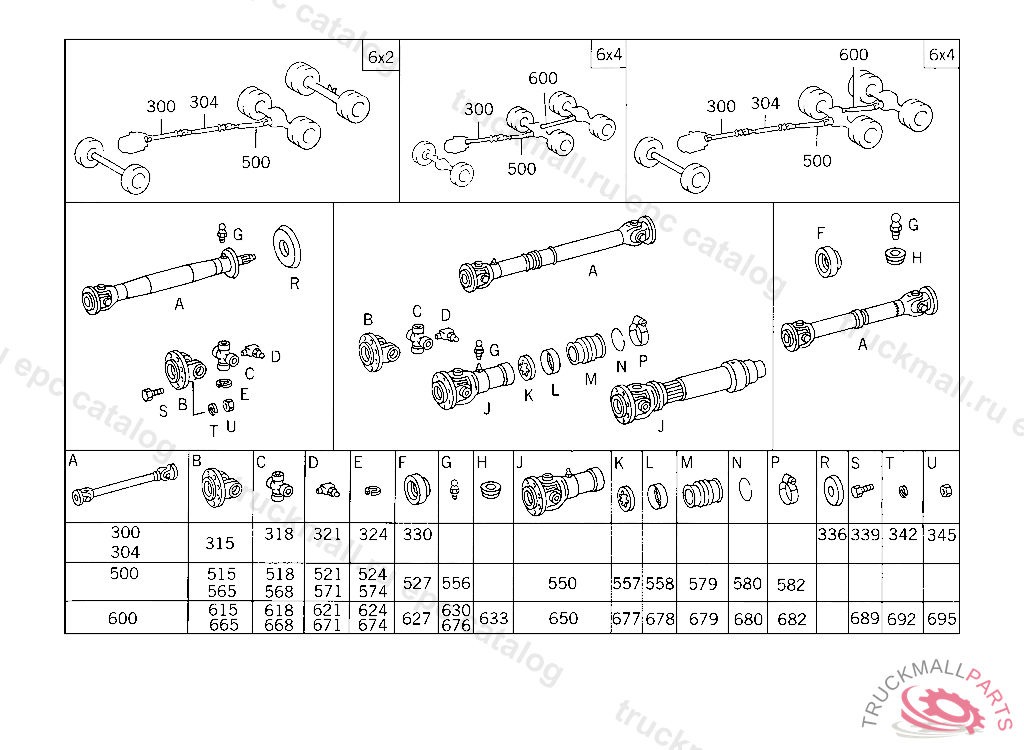

PROPELLER SHAFT FROM TRANSMISSION TO INTERMEDIATE BEARING 1479 MM
300
PROPELLER SHAFT FROM TRANSMISSION TO INTERMEDIATE BEARING I 1516 MM
315
DRIVE FLANGE
318
UNIVERSAL JOINT CROSS WITH BUSHINGS
321
GREASE NIPPLE
321
GREASE NIPPLE
324
SNAP RING AS REQUIRED 3.00 MM
324
SNAP RING AS REQUIRED 2.95 MM
324
SNAP RING AS REQUIRED 2.90 MM
324
SNAP RING AS REQUIRED 2.85 MM
324
SNAP RING AS REQUIRED 2.80 MM
330
GREASE NIPPLE PROTECTIVE TUBE
336
PROTECTIVE CAP
339
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
339
SCREW , Replaced By: A3609903001
339
SCREW , Replaced By: A0079901001
339
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
342
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
342
LOCK WASHER , Replaced By: N912004010102
345
NUT PROPELLER SHAFT TO REAR AXLES I AND II
345
NUT , Replaced By: N308673010001
500
PROPELLER SHAFT FROM INTERMEDIATE BEARING TO REAR AXLE I 1347 MM
515
DRIVE FLANGE
518
UNIVERSAL JOINT CROSS , Replaced By: A9734100031
521
GREASE NIPPLE
521
GREASE NIPPLE
527
SEAL RING
556
GREASE NIPPLE INTERMEDIATE LEVER
565
DRIVE FLANGE
568
UNIVERSAL JOINT CROSS , Replaced By: A9734100031
571
GREASE NIPPLE
571
GREASE NIPPLE
600
PROPELLER SHAFT FROM REAR AXLE I TO REAR AXLE II 728 MM
600
PROPELLER SHAFT FROM REAR AXLE I TO REAR AXLE II
615
DRIVE FLANGE
618
UNIVERSAL JOINT CROSS
618
UNIVERSAL JOINT CROSS , Replaced By: A9734100031
621
GREASE NIPPLE FOR SPRING
621
GREASE NIPPLE
621
GREASE NIPPLE
624
SNAP RING1.82 MM
624
LOCK , Replaced By: A0069941241
624
LOCK RING AS REQUIRED 1.75 MM
624
SNAP RING1.72 MM
624
SNAP RING1.67 MM
624
LOCK , Replaced By: A0069940641
627
SEAL RING
630
GREASE NIPPLE
630
GREASE NIPPLE INTERMEDIATE LEVER
689
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
689
SCREW , Replaced By: A3609903001
692
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
695
NUT PROPELLER SHAFT TO REAR AXLES I AND II
999
CENTERING FLANGE INTERMEDIATE BEARING NO.1
