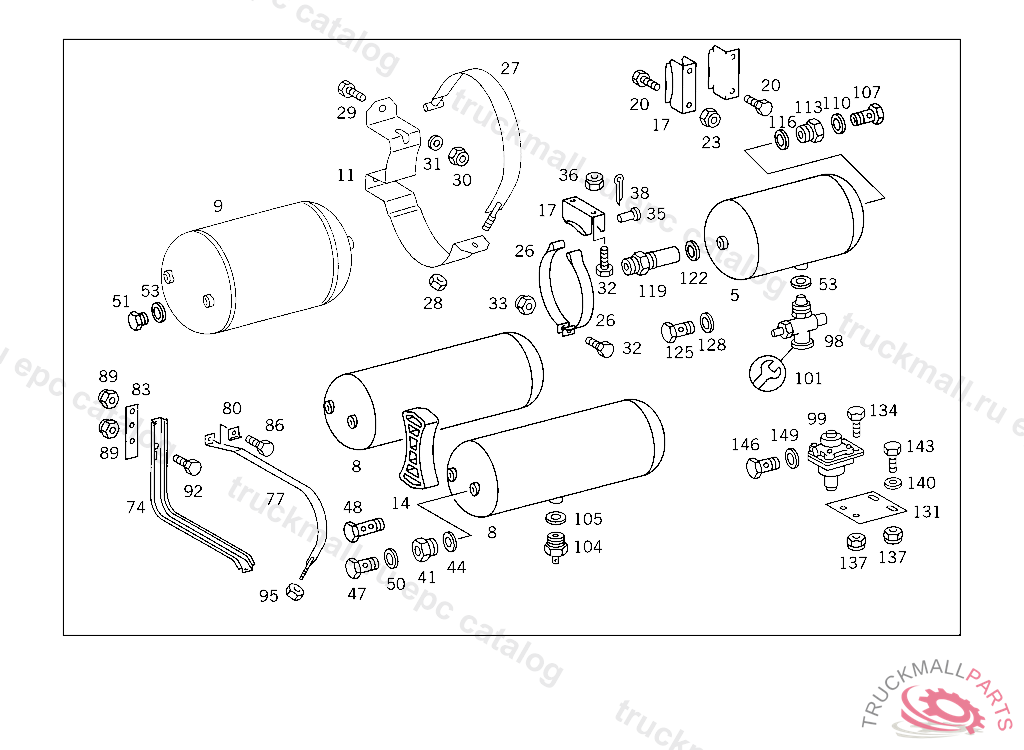

Поз.
Артикул
Описание
5
RESERVOIR AIR RESERVOIR III 20 L
5
RESERVOIR ,1B 883558
8
RESERVOIR AIR RESERVOIRS I AND II 40 L
8
RESERVOIR
9
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
11
BRACKET AIR RESERVOIR
11
BRACKET , Replaced By: A9794300010
14
BASE AIR RESERVOIR TO CONSOLE
17
CONSOLE AIR RESERVOIR TO FRAME 20 L
20
SCREW BEARING BRACKET TO SIDE MEMBER
20
SCREW BRACKET TO SIDE MEMBER
20
SCREW RETURN AND SUCTION LINES TO FRAME, FRONT M 12X40
20
SCREW FUEL LINE TO SIDE MEMBER
23
NUT BRACKET TO LEFT SIDE MEMBER
26
STRAP AIR RESERVOIR TO FRAME SIDE MEMBER
27
STRAP AIR RESERVOIR
28
NUT BRACKET TO RETARDER
29
SCREW AIR DUCT TO CAB
29
SCREW BRACKET TO SIDE MEMBER
30
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
30
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
31
WASHER TRAILER PLUG SOCKET TO BRACKET
32
SCREW CLAMPING BOLT TO BRACKET
33
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
35
PIN STRAP TO CONSOLE 20 L
38
COTTER PIN STRAP TO CONSOLE 20 L
41
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
41
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
44
SEAL RING LINE CONNECTION
44
SEAL RING LINE CONNECTION
47
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
50
SEAL RINGTO 006 997 00 72
51
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
53
SEAL RING LINE CONNECTION
74
CONSOLE AIR RESERVOIR
74
CONSOLE AIR RESERVOIR,B 898487
77
STRAP ,B 898487
77
STRAP AIR RESERVOIR
80
BASE AIR RESERVOIR
80
BASE
83
PLATE
86
SCREW BRACKET TO FRAME
89
NUT , Replaced By: N910113014000
92
SCREW , Replaced By: N308676014012
92
SCREW BRACKET TO FRAME
92
SCREW BATTERY CASE
95
NUT BRACKET TO RETARDER
98
VALVE DRAIN 20 L
101
VALVE REPAIR KIT TO 384 432 72 07
104
VALVE DRAIN, Replaced By: A0004322107
104
VALVE DRAIN, Replaced By: A0004322107
104
VALVE
104
VALVE
104
VALVE. DRAIN VALVE DRAIN
104
VALVE. DRAIN VALVE DRAIN
104
VALVE DRAIN, Replaced By: A0004322407
104
VALVE DRAIN, Replaced By: A0004322407
104
VALVE
104
VALVE
105
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
107
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
110
SEAL RINGTO 006 997 00 72
113
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
116
SEAL RING LINE CONNECTION
119
FITTING VALVE TO VALVE
119
CONNECTOR AIR RESERVOIR,CONNECTION: "10",1B 883558
122
SEAL RING LINE CONNECTION
125
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
128
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
