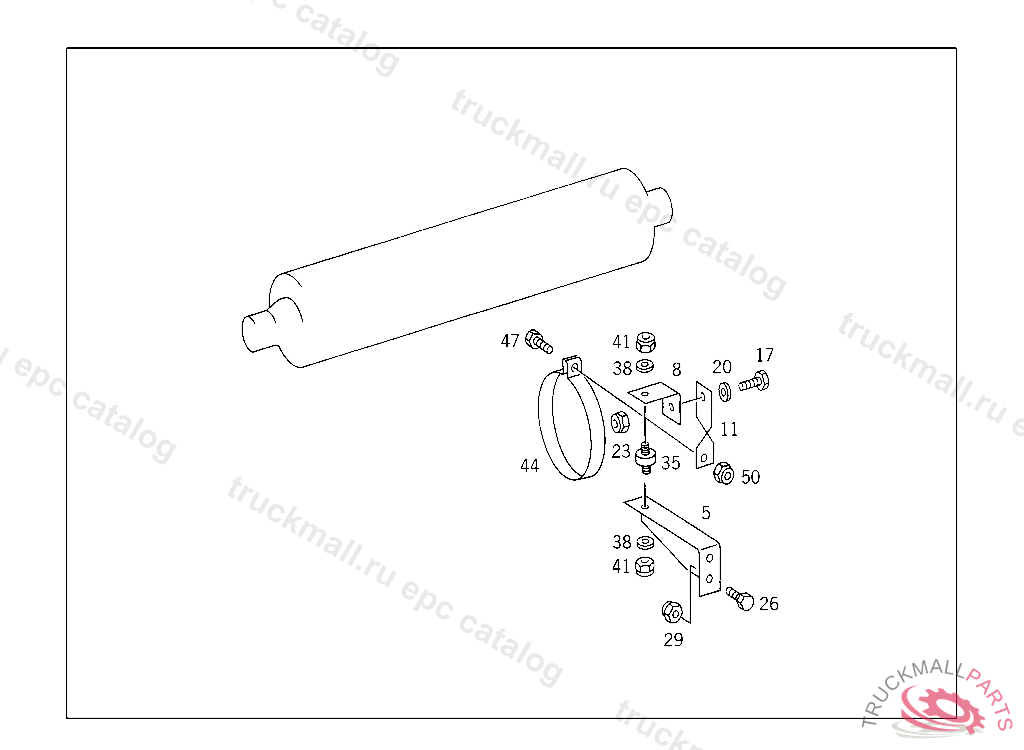

Поз.
Артикул
Описание
5
BRACKET AT SIDE MEMBER
5
BRACKET , Replaced By: A3884927941
8
BRACKET EXHAUST MUFFLER
11
SUPPORT EXHAUST MUFFLER
17
SCREW BRACKET TO CROSS MEMBER,024208
20
WASHER GROUND CABLE
23
NUT , Replaced By: N910113010002
26
SCREW BRACKET TO SIDE MEMBER
29
NUT ALTERNATOR TO SUPPORT
35
RUBBER MOUNTING
38
WASHER GROUND CABLE
41
NUT BRACKET TO SIDE MEMBER,XB209706
44
CLAMP EXHAUST MUFFLER TO BRACKET 260 MM
47
SCREW CROSS MEMBER TO SIDE MEMBERS
50
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
