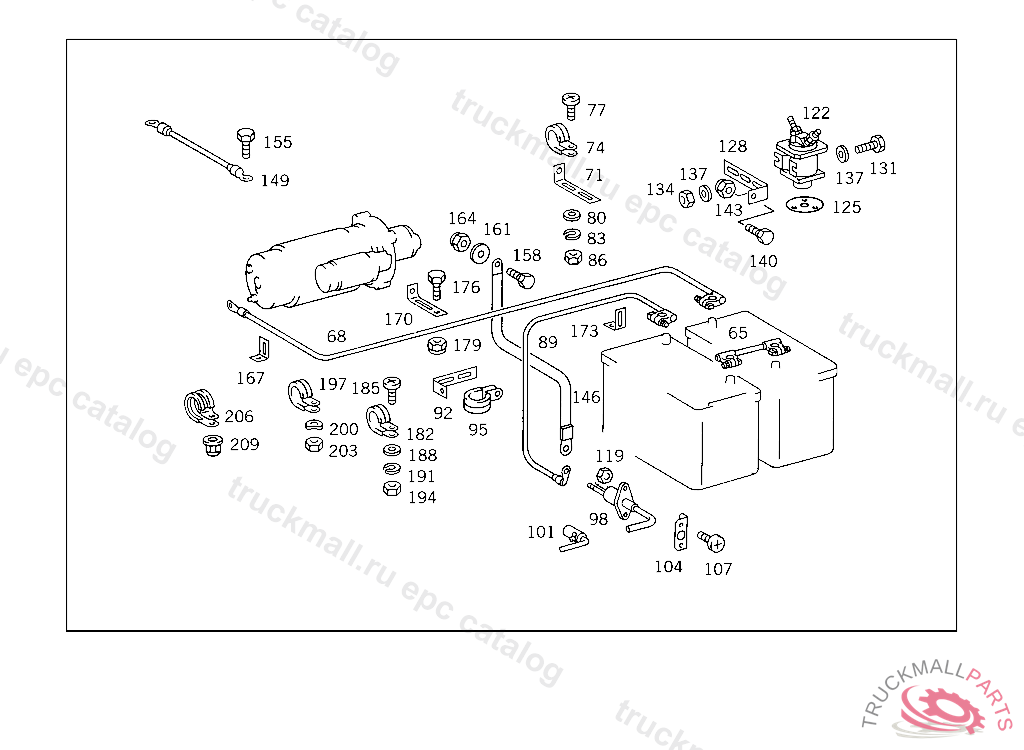

Поз.
Артикул
Описание
65
POSITIVE CABLE FROM BATTERY I TO BATTERY II
68
POSITIVE CABLE FROM BATTERY POS.POLE TO STARTING MOTOR
68
POSITIVE CABLE FROM BATTERY POS.POLE TO STARTING MOTOR
71
BRACKET BRACKET TO CROSS MEMBER
74
CLAMP ELECTRIC CABLE TO BRACKET 20/15
74
CLAMP PIPE ON FAN SHROUD
77
SCREW CABLE TO ALTERNATOR
80
WASHER PLUG SOCKET TO BRACKET
83
LOCK WASHER CABLE TO FUSE BOX
86
NUT
89
NEG. CABLE FROM NEG. POLE TO BATTERY MASTER SWITCH
89
NEG. CABLE FROM BATTERY TO SIDE MEMBER 300MM
98
SWITCH BATTERY CUT-OFF
98
SWITCH BATTERY CUT-OFF
101
KEY
104
BRACKET SWITCH TO BATTERY SUPPORT
107
SCREW BRACKET TO SIDE MEMBER
107
SCREW MODULE TO HOUSING
119
NUT
122
CONTACTOR STARTING MOTOR,D 090060
122
CONTACTOR STARTING MOTOR RELAY
125
GASKET
128
BRACKET BATTERY CABLE
131
SCREW BRACKET MOUNTING
134
NUT
137
WASHER FUSE TO FUSE BOX
140
SCREW ANGLE TO CROSS MEMBER M 10X30
143
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
146
GROUND STRAP FROM STARTING MOTOR TO SIDE MEMBER
146
GROUND STRAP FROM BATTERY MASTER SWITCH TO SIDE MEMBER,B 959934
146
GROUND STRAP FROM ISOLATING SWITCH TO FRAME
149
GROUND STRAP FROM FRAME SIDE MEMBER TO CAB
149
GROUND STRAP FROM FRAME TO CAB
155
SCREW , Replaced By: N304017010040
155
SCREW , Replaced By: N304017010040
158
SCREW GROUND STRAP TO CAB,B 959934
158
SCREW GROUND CABLE
158
SCREW GROUND CABLE
158
SCREW CROSS MEMBER TO SIDE MEMBERS
158
SCREW ANGLE TO CROSS MEMBER M 10X30
161
WASHER GROUND CABLE
161
WASHER GROUND CABLE
161
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
164
NUT OIL COOLER TO BRACKET,TOP
164
NUT BRACKET TO SIDE MEMBER,XB209706
164
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
167
BRACKET BATTERY CABLE MOUNTING
167
BRACKET , Replaced By: A3812950440
170
BRACKET POS. CABLE,XB209706
173
BRACKET FUEL LINE
176
SCREW , Replaced By: N304017010040
176
SCREW , Replaced By: N304017010040
179
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
179
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
197
CLAMP ENGINE AND FRAME
197
CLAMP LINE MOUNTING
197
CLAMP ELECTRIC CABLE TO ALTERNATOR 15/12
197
CLAMP ELECTRIC CABLE TO ALTERNATOR 15/12
197
CLAMP ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
200
SPRING WASHER CABLE TO ALTERNATOR
203
NUT TACHOGRAPH TO BRACKET
206
CLAMP DELIVERY AND SUCTION LINES TO FRAME
209
NUT COVERING TO CAB FIRE WALL
999
CABLE SHOE
999
WASHER , Replaced By: N009021006208
