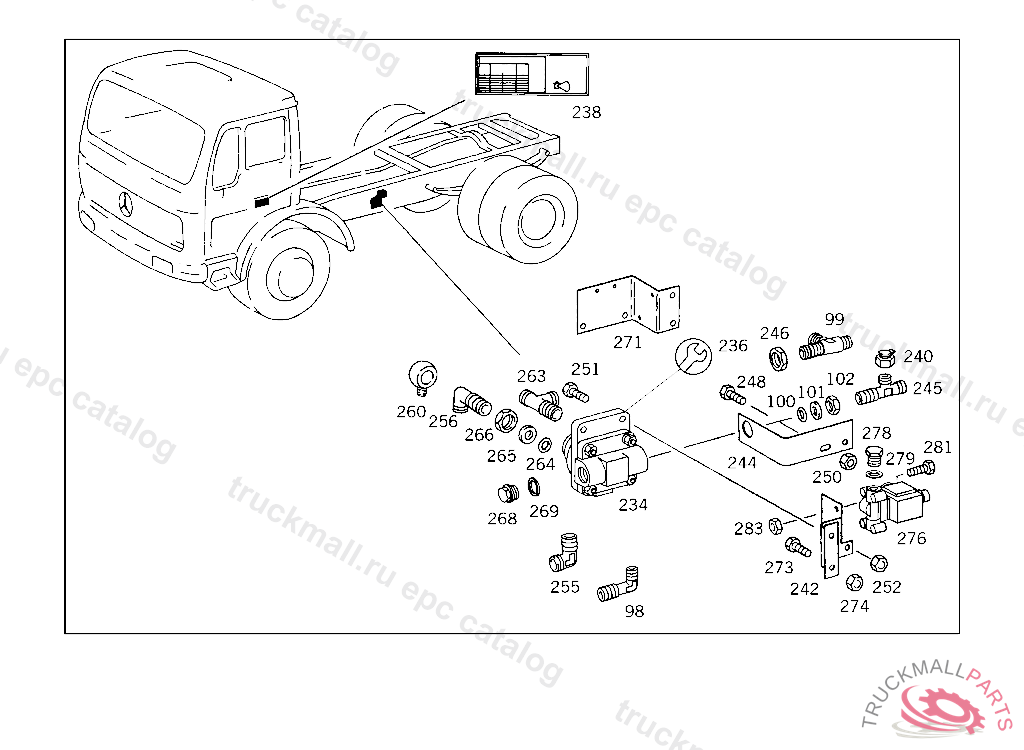

Поз.
Артикул
Описание
98
ELBOW FITTING LOAD/NO-LOAD VALVE, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
99
T-FITTING LOAD/NO-LOAD VALVE, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
100
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
101
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
102
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
234
VALVE LOAD/NO-LOAD, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
236
REPAIR KIT LOAD/NO-LOAD TO 000 431 33 18,000 431 58 13
238
GUIDE SIGN LOAD-DEPENDING BRAKE
238
GUIDE SIGN LOAD-DEPENDING BRAKE 19 T
240
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
240
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
240
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
240
TEST CONNECTION
242
BRACKET LOAD/NO-LOAD VALVE, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
244
BRACKET PRESSURE RELIEF VALVE
245
FITTING DISTRIBUTOR,4 709826
246
NUT BRACKET TO SIDE MEMBER
248
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
248
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
248
SCREW BRACKET TO SIDE MEMBER
248
SCREW , Replaced By: N304017008040
250
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
250
NUT , Replaced By: N913004008001
251
SCREW BRACKET TO CROSS CONNECTION STRUT
252
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
255
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
263
T-FITTING LOAD/NO-LOAD VALVE, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
264
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
265
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
266
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
271
BRACKET ,929798
274
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
276
BLEEDER VALVE , 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
278
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
279
SEAL RING LINE CONNECTION
281
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
283
NUT PUMP TO BRACKET
999
T-FITTING RELAY VALVE,CONNECTION: "12"
999
T-FITTING , Replaced By: A0019901070
999
BANJO UNION , Replaced By: N915052004006
999
HOLLOW SCREW , Replaced By: N915047008100
999
CROSS FITTING AT LEFT TRISTOP CYLINDER
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
REPAIR KIT SLAVE CYLINDER TO 000 296 01 07
999
REPAIR KIT , Replaced By: A0005864829
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
VALVE , Replaced By: A0004342301
999
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 422115, Replaced By: A0004342101
999
BUSHINGTO 000 434 10 01
999
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 422115, Replaced By: A0004342301
999
CUPTO 000 434 10 01
999
CUP , Replaced By: A0004340486
999
RESERVOIR , Replaced By: A0034321201
999
RESERVOIR , Replaced By: A0004324301
999
CUPTO 001 431 43 05,BOSCH-TEVES, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
BRAKE PRESSURE REGULATOR , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO IDENT NO.:4 412494 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0014311412, +002A0019905268, +002N007603016105
999
STRAINERTO 000 434 21 01
999
DIAPHRAGMTO 008 420 95 18,008 420 97 18,BOSCH
999
VALVE SEATTO 001 431 68 06,GRAU 37001, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
SCREWTO 001 431 43 05,BOSCH-TEVES
999
VALVE SEATGRAU
999
DIAPHRAGMBOSCH, Replaced By: A0004314028
999
VALVE DISCTO 001 431 43 05,BOSCH-TEVES
999
VALVE DISC , Replaced By: A0004312781
999
GASKET34X2X6 MM,GRAU
999
LEVER , Replaced By: A3854310239
999
METAL SPRING BELLOWS , Replaced By: A0004311418
999
RUBBER RINGTO 001 431 43 05,002 431 05 05, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
VALVE , Replaced By: A3075530107
999
BREATHER PIPE PRESSURE REGULATOR,CONNECTION "3",4 281211
999
REPAIR KITTO 001 431 06 06,BOSCH 0 481 039 101,5 148812
999
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
999
REPAIR KITTO 002 431 83 06, KNORR 90309
999
BRAKE HOSE , Replaced By: A0004297335
999
ELBOW FITTING
999
DISTRIBUTOR ,4 342862
999
LINE , Replaced By: A0005516156
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
999
FITTING LEFT AND RIGHT BRAKE HOSES
999
LINE , Replaced By: A0005516456
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
LINE , Replaced By: A0005516256
999
PROTECTIVE CAP ,5 962906
999
PROTECTIVE CAP , Replaced By: A0004210887
999
GUIDE , Replaced By: N071752014000
999
PROTECTIVE CAP , Replaced By: A0004217187
999
GUIDETO 006 420 28 18,WABCO
999
BLEEDER VALVE , Replaced By: A0004310265
999
BLEEDER VALVE , Replaced By: A0004310265
999
VALVEBOSCH
999
VALVE GASKET KIT TO 003 429 16 44,BOSCH,UP TO 03.82
999
SLAVE CYLINDER , Replaced By: A0074202118
999
CLAMP , Replaced By: A0059970190
999
SLEEVE LINE CONNECTION
999
SLEEVE LINE CONNECTION
999
SLEEVE LEAK LINE
999
FITTING
999
BANJO UNION HEATING CONNECTION,K 169122
999
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
999
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
UNION NUT BUTT SCREW CONNECTION
999
UNION NUT LINE CONNECTION, Replaced By: N000000006239
999
HOLLOW SCREW , Replaced By: N915036010100
999
NUT , Replaced By: N910113014001
999
NUT , Replaced By: N913004006001
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
NUT BRACKET TO SIDE MEMBER
999
NUT SUPPORT TO SIDE MEMBER
999
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SCREW PIPE CLAMP
999
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
FITTING , Replaced By: A0009905070
999
FITTING , Replaced By: A0009907470
999
FITTING , Replaced By: A0009907771
999
FITTING ,4 667210
999
FITTING
999
FITTING BRAKE LINE COUPLING TO BRACKET
999
FITTING , Replaced By: A0029971172
999
FITTING DIAPHRAGM CYLINDER,CONNECTION:
999
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
999
DOUBLE FITTING , Replaced By: A0019972872
999
HOSE LEAK LINE, ORDER BY THE METER
999
YOKETO 008 420 95 18,008 420 97 18,BOSCH
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: N009021008213
999
SEAL RING LINE CONNECTION
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
FITTING , Replaced By: A0019902771
999
CONNECTION FITTING ,880809
999
CONNECTION FITTING , Replaced By: A0039979172
999
GLAND LINE CONNECTION
999
GLAND , Replaced By: A0019901967
999
CLAMP12 MM
999
SCREW HAND BRAKE VALVE TO CAB
999
SCREW CLAMP TO BATTERY CASE
999
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SCREW , Replaced By: N304017008028
999
SCREW , Replaced By: N304017008021
999
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
999
COTTER PIN WHEEL CYLINDER TO SLACK ADJUSTER,4 637963
999
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
BRACKET , NOT USED
999
LINE , Replaced By: A6254293501
999
BREATHER , Replaced By: A3933280065
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
BRACKET , Replaced By: A3934310840
999
BRAKE HOSE , Replaced By: A0004297135, +001A0009973873, +001N003861015004
999
LINE FROM FITTING I TO CONNECTION FITTING II 15 MM,4 360021
999
ADHESIVE FOIL GUIDE SIGN
999
BRACKET METAL SPRING BELLOWS,4 428485
999
SHIM VALVE TO CAB, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
LINE , Replaced By: A3834290801
999
BRACKET HIGH PRESSURE HOSE TO CAB
999
LINE , Replaced By: A3874299502
999
BRACKET ,4 194709
999
BRACKET BUMPER,RIGHT, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
LINE , Replaced By: A3874299502, +001N003861012006, +001N003870012104
999
BRACKET ,4 416298
999
LINE , Replaced By: A6194290801
999
SEAL RING VALVE TO CAB,4 278267
999
CLAMP , Replaced By: A6739950001
999
CLAMP LINE MOUNTING
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
LEVER , Replaced By: A3854310239
999
BRACKET , Replaced By: A3464296040
999
PLUG EXHAUST BRAKE VALVE, CONNECTION: "20"
999
PROTECTIVE CAP , Replaced By: A0004210887
999
VALVE CLUTCH SLAVE CYLINDER
999
HOSE LEVER TO SUPPORT
999
HOSE , Replaced By: A0009872827
999
SEAL RING , Replaced By: A0049970248
999
SEAL RINGTO 001 431 43 05
999
SEAL RINGTO 001 431 68 06,19.3X2.4 MM,GRAU37001, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
999
SEAL RINGTO 000 434 23 01
999
SEAL RINGTO 000 434 23 01
999
SEAL RINGTO 000 434 21 01
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RING 25.3X2.4 MM,TO 001 431 68 06, 002 431 02 06
999
SEAL RINGTO 000 429 28 95,GRAU
999
SEAL RING22.3X2.4 MM,GRAU
999
HOSE CLAMP LINE MOUNTING
999
WHEEL BRAKE CYLINDER , Replaced By: A0064200218
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
FITTING , Replaced By: A0029906171
999
SEAL RINGBOSCH
999
WHEEL BRAKE CYLINDER , Replaced By: A0054209818, +002N913004016004
999
FITTING 3/2-WAY VALVE
999
FITTING TWO-CIRCUIT BRAKE VALVE,CONNECTION: "21", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
FITTING ,4 261891
999
FITTING DELIVERY LINE TO PUMP
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
