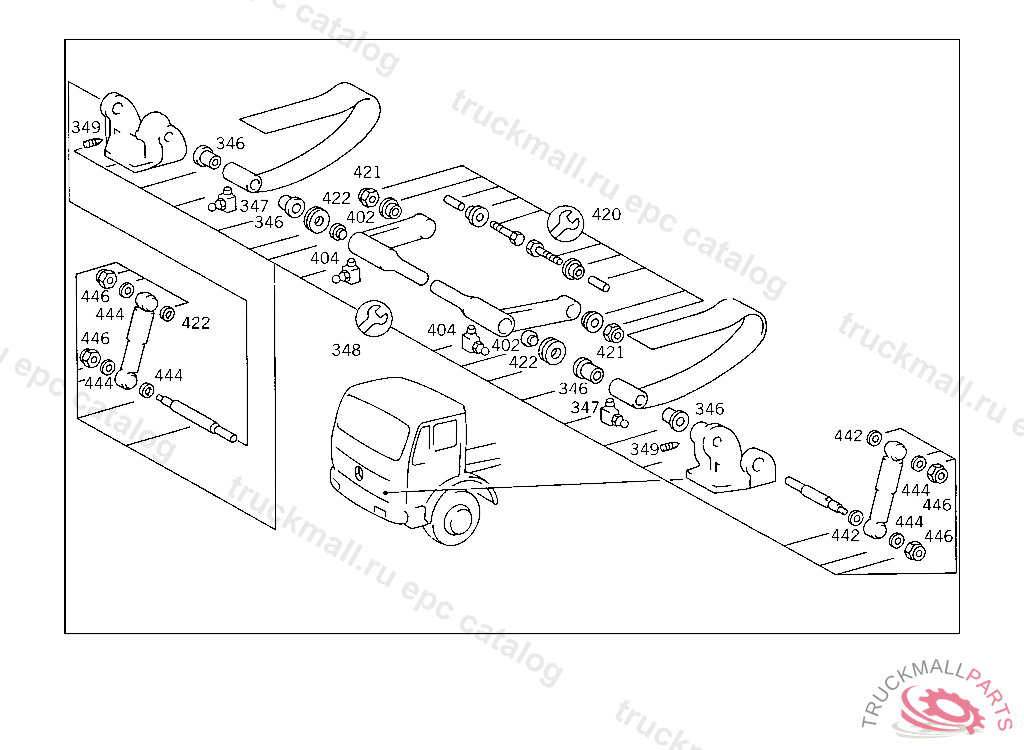

Поз.
Артикул
Описание
346
BUSHING SPRING
347
GREASE NIPPLE FOR SPRING
348
REPAIR KIT CAB SUSPENSION,FRONT
348
REPAIR KIT , Replaced By: A3873100077
349
HEADLESS SETSCREW FOR SPRING
402
JOINT BEARING
402
JOINT BEARING , Replaced By: A0019814631
402
JOINT BEARING , Replaced By: A0009817231
402
JOINT BEARING , Replaced By: A0009817331
402
JOINT BEARING , Replaced By: A0009817231
404
GREASE NIPPLE FOR SPRING
420
REPAIR KIT CAB FRONT SUSPENSION STABILIZER,5 094188
420
PIN , NO LONGER AVAILABLE, ORDER RANGE OF DELIVERY, Replaced By: A3875860531
421
NUT BRACKET TO SIDE MEMBER
421
NUT , Replaced By: N910113014001
422
WASHER STABILIZER TO BEARING
442
WASHER VIBRATION ABSORBER TO BEARING AND TO CAB
442
WASHER , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6203170176
444
WASHER
444
WASHER , Replaced By: N000125013008
446
NUT SUPPORT TO SIDE MEMBER
999
WIRE CABLE CAB SUSPENSION,FRONT
999
SCREWM 16X17X28X48
999
JOINT BEARING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6208910017
999
JOINT BEARING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6208910017
999
JOINT BEARING
999
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
999
SCREW , Replaced By: N308676012013
999
SCREW , Replaced By: A3959900501
999
SCREW , Replaced By: A0029908201
999
SCREWM 14X14X17X35
999
SCREW , Replaced By: A3169900014
999
SCREWM 14X14X22X40
999
SCREWM 14X14X18X32
999
SCREWM 14X14X27X45
999
SCREWM 16X18X18X40
999
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
999
SCREWM 12X13X18X35
999
SCREWM 12X14X13X35
999
SCREWM 14X14X24X42
999
SCREWM 14X15X15X32
999
SCREWM 14X15X21X38
999
SCREW PLATE TO SIDE MEMBER
999
SCREWM 16X17X22X42
999
SCREWM 12X13X21X38
999
SCREWM 14X15X27X44
999
SCREWM 14X15X17X34
999
SCREWM 14X15X29X46
999
SCREWM 14X15X19X36
999
SCREWM 12X13X15X32
999
SCREW , Replaced By: A0009906314
999
SCREWM 14X14X32X50
999
SPACER RING RETAINING ROPE TO BEARING BRACKET,TOP
999
RUBBER BUFFER , Replaced By: A3813171512
999
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
RUBBER BUFFER
999
PIN
999
SCREWM 12X13X35X52
999
SCREWM 14X15X35X52
999
SCREWM 14X15X31X48
999
SCREWM 10X11X26.5X46
999
SCREWM 12X12X10X25
999
SCREW , Replaced By: A3229903101
999
SCREW , Replaced By: N308676016020
999
SCREWM 16X16X22X40
999
SCREW , Replaced By: N000961016118
999
SCREWM 12X12X11X26
999
SCREWM 12X12X13X28
999
SCREWM 16X16X20X38
999
SCREWM 16X16X30X48
999
SCREWM 16X16X32X50
999
SCREWM 14X14X18X34
999
SCREWM 12X12X15X30
999
SCREWM 12X12X17X32
999
SCREWM 18X18X23X45
999
SCREW , Replaced By: N000961018043
999
CROSS MEMBERNO.5A
999
CROSS MEMBERNO.3A
999
STRUT LEFT AND RIGHT
999
PIN , NO LONGER AVAILABLE, ORDER RANGE OF DELIVERY THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3875860131
999
PIN RETAINING ROPE TO BEARING BRACKET,TOP
999
PIN RETAINING ROPE TO BEARING BRACKET, BOTTOM
999
MOUNTING RETAINING ROPE
999
MOUNTING RETAINING ROPE
999
SHIM CAB TO FRAME
999
SPACER TUBE RETAINING ROPE TO BEARING BRACKET, BOTTOM
999
SPRING RETAINING ROPE TO BEARING BRACKET, BOTTOM
999
SPRING RETAINING ROPE TO BEARING BRACKET, BOTTOM
999
SCREWM 16X18X63X85
999
STRUT LEFT AND RIGHT
999
SCREWM 16X16X20X45
999
SCREWM 12X13X13X30
999
SCREWM 12X13X23X40
999
SCREWM 16X18X26X48
999
SCREWM 12X13X12X29
999
SCREWM 16X18X38X60
999
SCREWM 12X13X25X42
999
SCREWM 16X16X38X90
999
SCREWM 14X15X18X35
999
SCREWM 16X17X24X44
999
SCREWM 12X13X63X85
999
SCREWM 12X13X58X80
999
COTTER PIN HYDRAULIC CYLINDER TO SWIVEL ARM
999
FITTED SCREWM 10X11X14X28
999
FITTED SCREWM 10X11X24X40
999
FITTED SCREWM 18X19X57X85
999
FITTED SCREWM 10X11X25X38
999
FITTED SCREWM 18X19X25X45
999
FITTED SCREWM 18X19X38X60
999
FITTED SCREWM 18X19X33X55
999
SCREW , Replaced By: N304017008034
999
SCREW SUPPORT TO SIDE MEMBER M 14X120, TO BE ADAPTED DURING ASSEMBLY
999
SCREW , Replaced By: N308676012026
999
SCREW BRACKET TO LEFT SIDE MEMBER
999
SCREW , Replaced By: N308676014020
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW , Replaced By: N308676014012
999
SCREWM 18X18X33X55
999
CLAMPING SLEEVE MOUNTING
999
SCREW BEARING BRACKET TO FRAME M 14X50,5 136790
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
HEXAGON HEAD BOLT , Replaced By: A0029902704
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
999
SCREW SUPPORT TO SIDE MEMBER M 14X45
999
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
999
SCREW CONSOLE TO FRAME
999
RIVET14X55 MM, TO BE ADAPTED DURING ASSEMBLY
999
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
999
HEXAGON NUT. NUT SPRING BOLT
999
NUT STEERING SUPPORT TO FRAME
999
NUT CONSOLE TO SUPPORT
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
999
NUT , Replaced By: N910113012005
999
NUT , Replaced By: N910113012003
999
NUT , Replaced By: N910113014000
999
NUT , Replaced By: N910113016001
999
NUT TORSION BAR TO BEARING BRACKET,5 904661
