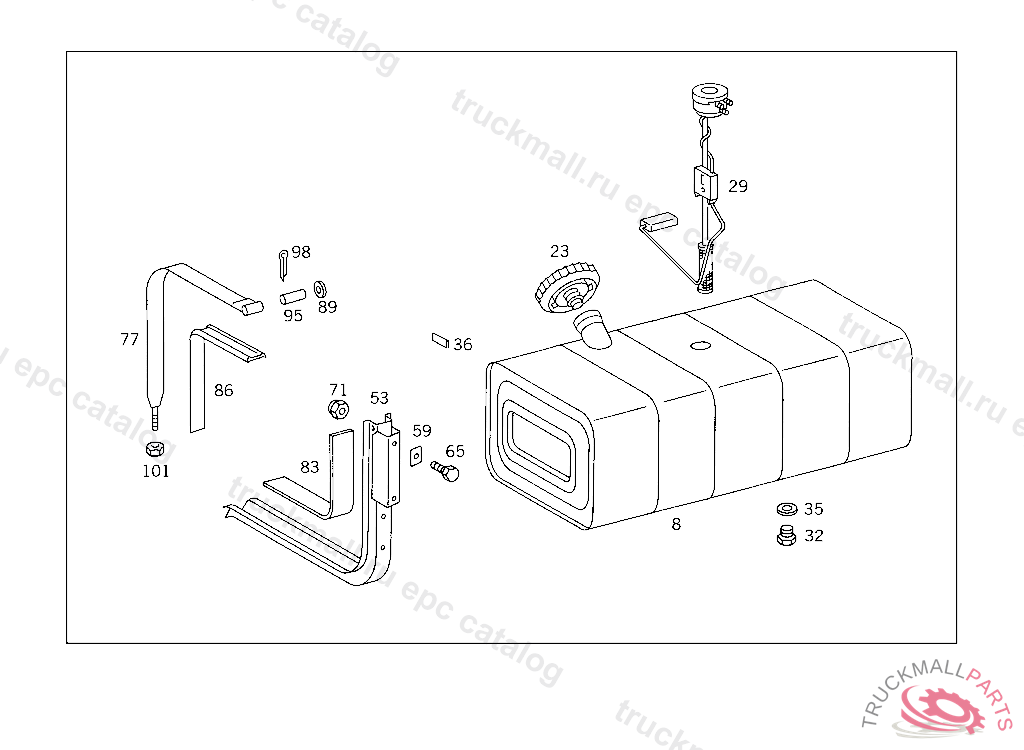

Поз.
Артикул
Описание
8
FUEL TANK LESS SENDER UNIT 210 L
23
FILLER CAP
23
FILLER CAP
29
SENDER UNIT FUEL GAUGE
29
SENDER UNIT FUEL GAUGE
32
SCREW PLUG AT TANK
35
SEAL RING AT TANK
53
CONSOLE FUEL TANK,FRONT AND REAR
59
BASE CONSOLE TO FRAME
65
SCREW BATTERY CASE TO SIDE MEMBER
71
NUT , Replaced By: N910113014000
77
STRAP FUEL TANK TO SUPPORT
83
SHIM FUEL TANK TO CONSOLE
86
PAD FUEL TANK TO CONSOLE
89
WASHER SUPPORT TO FRAME,D 127794
95
PIN STRAP TO SUPPORT
95
PIN STRAP TO CONSOLE
98
COTTER PIN STRAP TO SUPPORT
101
NUT FUEL TANK TO SUPPORT
999
SUPPORT FUEL TANK
