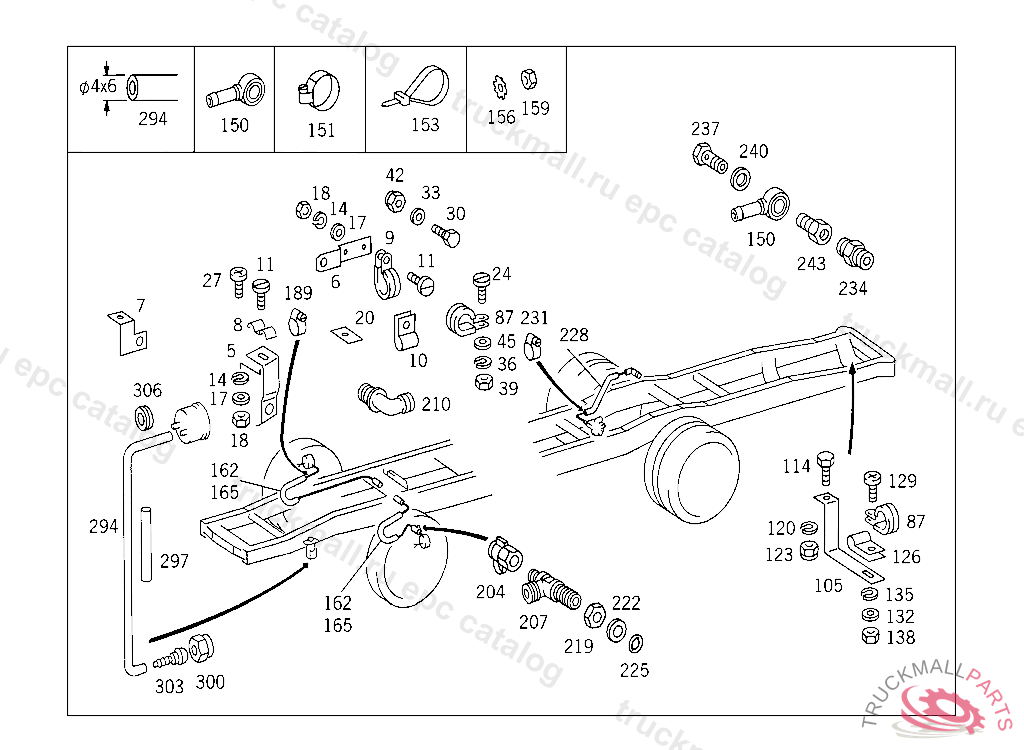

Поз.
Артикул
Описание
17
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
27
SCREW CLAMP TO BRACKET
30
SCREW CLAMP TO BRACKET
33
WASHER PLUG SOCKET TO BRACKET
36
LOCK WASHER CABLE TO FUSE BOX
42
NUT , Replaced By: N913004006001
87
CLAMP , Replaced By: A3829950101
87
CLAMP HOSE TO BRACKET 25/20,5 206397
87
CLAMP BRAKE HOSE BRACKET
87
CLAMP ,K 147121, Replaced By: N000000000319
87
CLAMP LINE MOUNTING
87
CLAMP OIL FILLER PIPE TO BRACKET
87
CLAMP DELIVERY AND SUCTION LINES TO FRAME
87
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
87
CLAMP LINE MOUNTING
87
CLAMP SENSOR CABLE TO FRONT AXLE
87
CLAMP DE-AERATION LINE
87
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
87
CLAMP
87
CLAMP , Replaced By: A3829950701
105
BRACKET COMPRESSED AIR LINES
114
SCREW BRACKET TO BUMPER,LEFT M 10X25
129
SCREW LINE MOUNTING M 6X25
132
WASHER PLUG SOCKET TO BRACKET
135
LOCK WASHER CABLE TO FUSE BOX
138
NUT CLAMP TO BRACKET
138
NUT
150
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM,026097
153
LOOM TIE LINE MOUNTING
153
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
153
LOOM TIE LINE MOUNTING
153
LOOM TIE ELECTRIC CABLE MOUNTING
153
LOOM TIE , Replaced By: A0019978390
156
TOOTHED WASHER SENDER UNIT TO BRACKET
159
NUT BRACKET TO SIDE MEMBER
189
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
189
CLAMP HOSE TO FITTING AND TO OIL TANK
204
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
204
TEST CONNECTION
204
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
207
T-FITTING DIAPHRAGM CYLINDER,CONNECTION "1"
207
T-FITTING DIAPHRAGM CYLINDER
219
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
222
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
222
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
222
THRUST RING LOCKING VALVE
225
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
294
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
297
INSULATING HOSE BLACK 12 X 0,8 MM
300
UNION NUT
303
FITTING
306
GROMMET AIR SPRING VALVE
999
BRACKET COMPRESSED AIR LINES,11.97
999
ADAPTER FITTING DIAPHRAGM CYLINDER,CONNECTION: "12"
