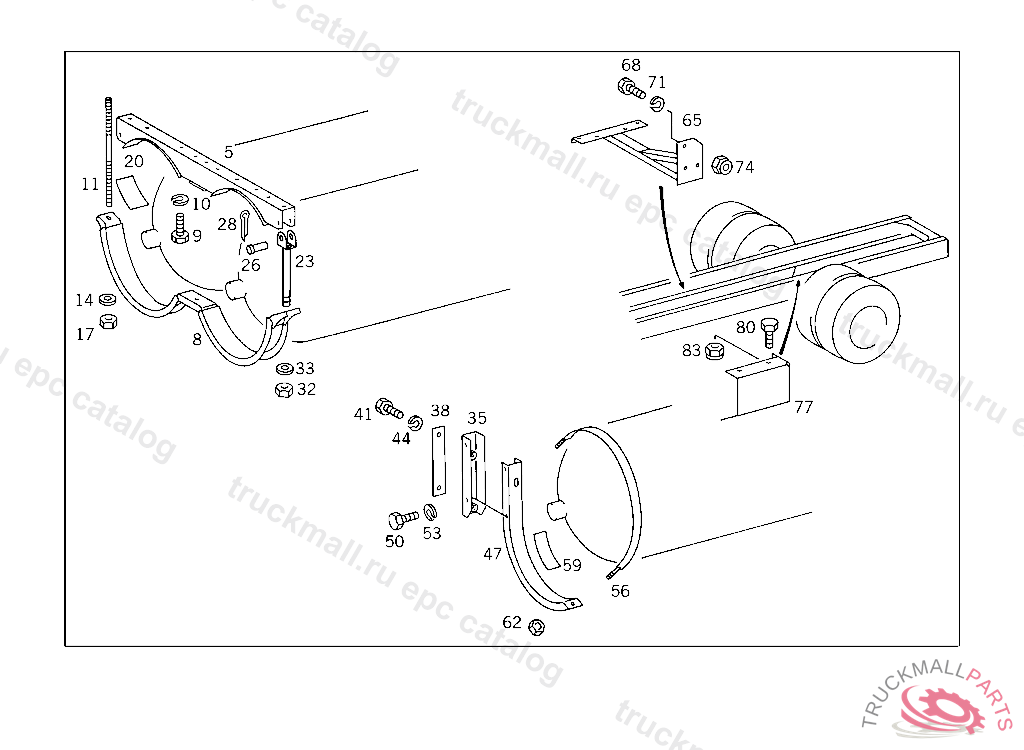

Поз.
Артикул
Описание
5
BEARING BRACKET
8
SUPPORT BOTTOM
9
SCREW CONSOLE TO CAB M 10X60
10
LOCK WASHER , Replaced By: N912004010102
11
PIN SUPPORT TO CONSOLE
14
WASHER
17
NUT BRACKET TO LEFT SIDE MEMBER
20
RUBBER STRIP
20
RUBBER STRIP
23
STRAP GAS BOTTLE TO BOTTLE BRACKET
26
PIN CLAMPING SCREW TO CONSOLE
28
COTTER PIN PLATFORM SIDE AND REAR PANELS TO SUBSTRUCTURE
32
NUT BRACKET TO LEFT SIDE MEMBER
33
WASHER
35
SUPPORT OUTSIDE
38
BASE
41
SCREW BEARING BRACKET TO SIDE MEMBER
44
LOCK WASHER FITTING TO BRACKET
47
SUPPORT OUTSIDE
50
SCREW CONSOLE TO CAB M 10X60
53
LOCK WASHER FUSE
56
STRAP OUTSIDE
59
RUBBER STRIP OUTSIDE
59
RUBBER STRIP OUTSIDE
62
NUT BRACKET TO FRAME
65
BRACKET , Replaced By: A3904707881
65
BRACKET FILLING VALVE
68
SCREW BRACKET TO SIDE MEMBER
71
LOCK WASHER FUSE
74
NUT , Replaced By: N910113010000
77
SCREENING PLATE
80
SCREW COVER TO SPRING SADDLE
83
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
LINE SOLENOID VALVE TO FUEL GAS REGULATOR
999
LINE FROM FITTING TO FITTING
