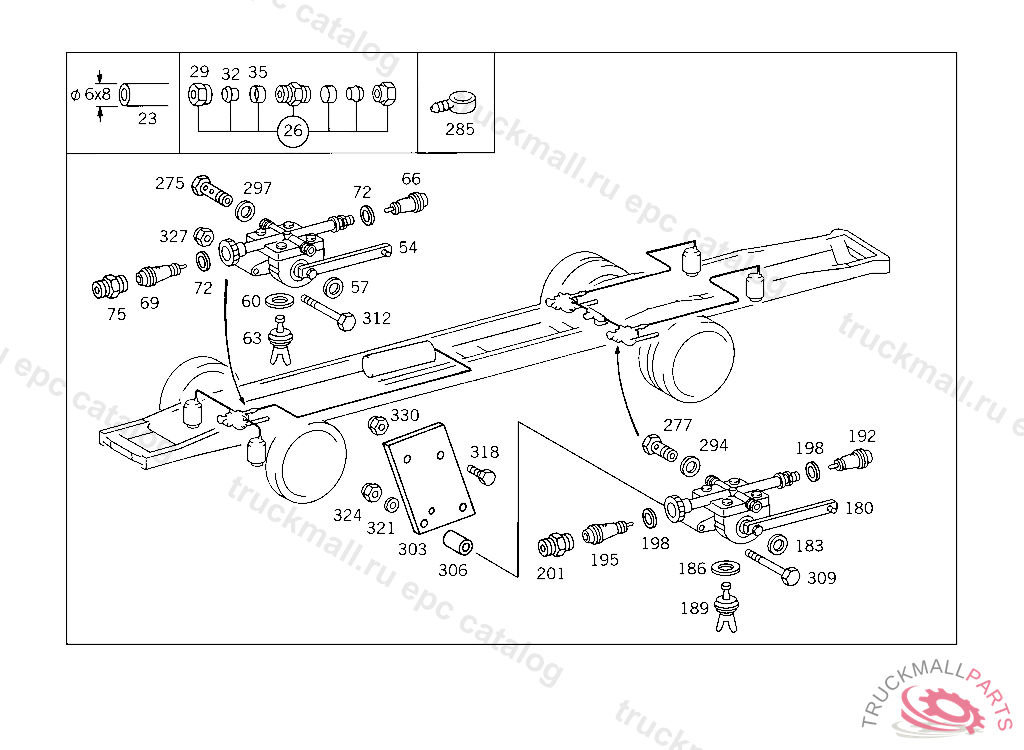

Поз.
Артикул
Описание
23
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
26
FITTING (PARTS KIT),LINE RUPTURE
29
UNION NUT LINE CONNECTION
32
GLAND LINE CONNECTION
35
SLEEVE LINE CONNECTION
54
VALVE FRONT AXLE LEVEL ADJUSTMENT VALVE
57
RINGTO 390 320 72 58, 73 58
60
SEAL RINGTO 390 320 72 58, 73 58
63
SCREWTO 390 320 72 58, 73 58
66
VALVETO 390 320 72 58, 73 58
69
VALVETO 390 320 72 58, 73 58
72
SEAL RINGTO 390 320 72 58, 73 58
75
FITTINGTO 390 320 72 58, 73 58
180
VALVE REAR AXLE LEVEL ADJUSTMENT VALVE,LEFT
180
VALVE REAR AXLE LEVEL ADJUSTMENT VALVE,RIGHT
183
RINGTO 390 320 72 58, 73 58
186
SEAL RINGTO 390 320 72 58, 73 58
189
SCREWTO 390 320 72 58, 73 58
192
VALVETO 390 320 72 58, 73 58
195
VALVETO 390 320 72 58, 73 58
198
SEAL RINGTO 390 320 72 58, 73 58
201
FITTINGTO 390 320 72 58, 73 58
275
HOLLOW SCREW LINE TO OIL RADIATOR
277
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
285
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
285
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
294
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
297
SEAL RINGTO 006 997 00 72
303
BRACKET AIR SPRING VALVE
306
SPACER TUBE AIR SPRING VALVE TO BRACKET
309
SCREW PRESSURE REGULATOR TO BRACKET M 8X75
312
SCREW VALVE TO BRACKET
318
SCREW BRACKET TO BUMPER,LEFT M 10X25
321
WASHER TRAILER PLUG SOCKET TO BRACKET
324
NUT BRACKET TO SIDE MEMBER
327
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
330
NUT , Replaced By: N910113010000
999
ROD FRONT AXLE LEVEL ADJUSTMENT VALVE, NOT USED
999
ROD REAR AXLE LEVEL ADJUSTMENT VALVE, NOT USED
