Поз.
Артикул
Описание

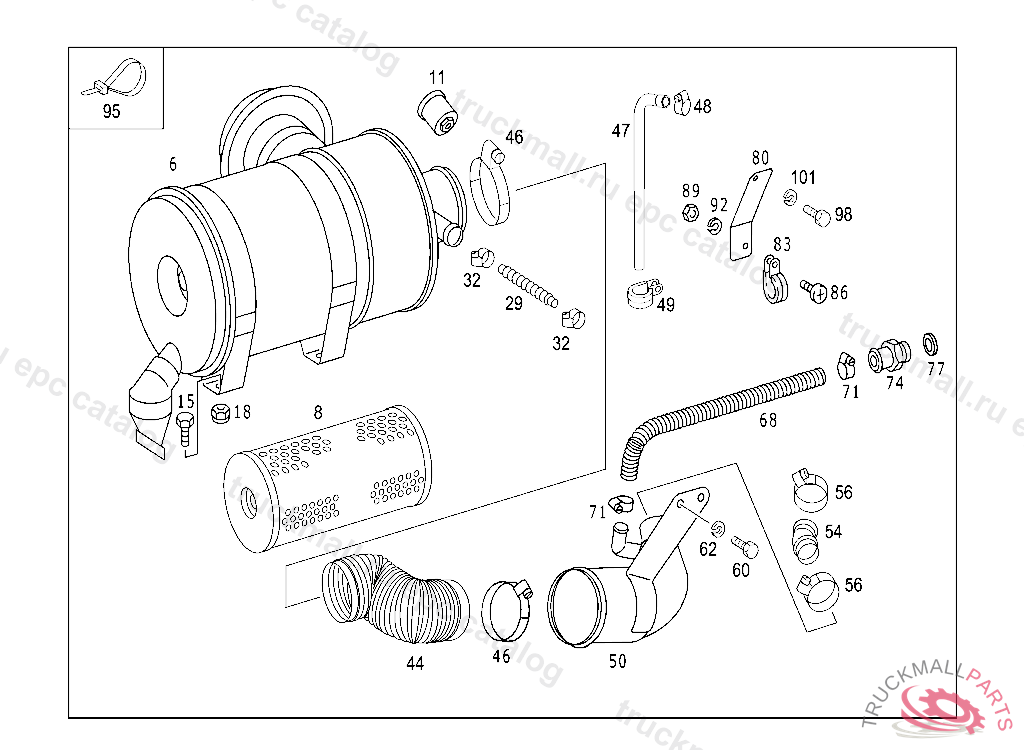

6
AIR CLEANER
6
AIR FILTER , A 13091520050331
8
FILTER ELEMENTTO 394 094 70 01
8
FILTER ELEMENT NOT INCLUDED IN RANGE OF DELIVERY OF: A 376 090 71 07
11
VACUUM BOX
15
SCREW GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
18
NUT STRAP TO BRACKET
29
HOSE AIR INTAKE HOSE
32
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
44
HOSE FROM MUFFLER TO ENGINE
46
CLAMP , Replaced By: A0059970690
47
HOSE BREATHING
48
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
49
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
50
AIR INTAKE PIPE TURBOCHARGER
54
HOSE (MOLDED HOSE),AIR INTAKE
54
HOSE TURBOCHARGER TO AIR INTAKE PIPE, A 13135320060130
56
CLAMP LINE MOUNTING 60-80X12MM
60
SCREW GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
62
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
68
HOSE HOSE TO AIR INTAKE PIPE & TO AIR COMPRESSOR & ENGINE BREATHER,RESP., ORDER BY THE METER
71
CLAMP25-40X13 MM
74
FITTING AT AIR COMPRESSOR
77
SEAL RING LINE TO OIL PUMP
80
BRACKET
83
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
86
HEXALOBULAR BOLT GROUND LINE TO GRID HEATER M6X25
86
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
89
NUT SPRING-LOADED PUSH ROD
92
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
95
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
98
SCREW PIPE CLAMP
101
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
