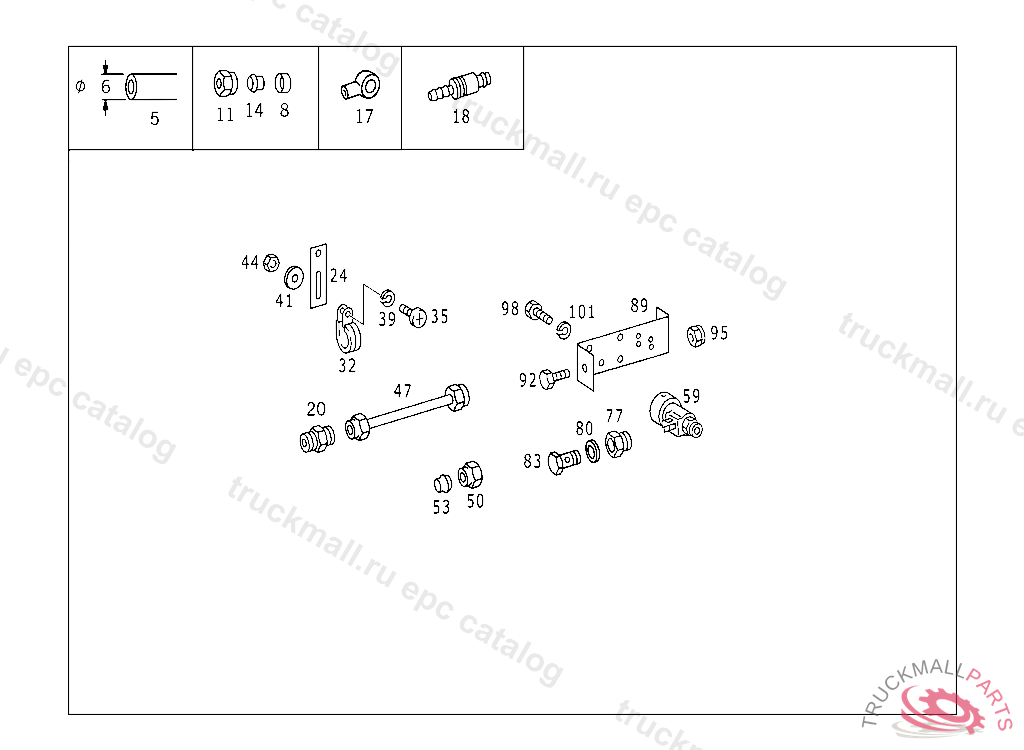

Поз.
Артикул
Описание
5
PLASTIC PIPE RISING PIPE 4X6 MM
8
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
11
UNION NUT
14
SEAL CONE
17
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
18
PLUG COMPRESSED-AIR-LINE PLUG-CONNECTION
20
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
24
BRACKET AT CROSS MEMBER
24
BRACKET , Replaced By: A3464296040
32
CLAMP LINE MOUNTING
35
SCREW LICENSE PLATE TO BRACKET
39
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
41
WASHER COMPRESSED AIR LINE TO BRACKET
44
NUT SPRING-LOADED PUSH ROD
47
LINE FROM FITTING TO FITTING, A 13188920061003
47
LINE FROM FITTING TO FITTING, A 13189020061003
47
LINE FROM FITTING TO FITTING
50
UNION NUT
53
SEAL CONE
59
VALVE , Replaced By: A3869977336, +001A3454297736, +001A3509977472
59
VALVE (3/2-WAY SOLENOID VALVE) "WABCO", A 13104920050715 A 13227320070806
77
FITTING SOLENOID VALVE,CONNECTION: "2"
80
SEAL RING LINE CONNECTION
83
HOLLOW SCREW LINE CONNECTION
83
SCREW DE-AERATION LINE TO TRANSMISSION COOLING WATER LINE
89
BRACKET DISTRIBUTOR
92
SCREW GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
95
NUT CROSS MEMBER TO SIDE MEMBERS
98
SCREW 3/2-WAY VALVE TO BRACKET
101
WASHER
999
VALVE CONSTANT THROTTLE
999
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
999
NUT HORN TO BRACKET M8
