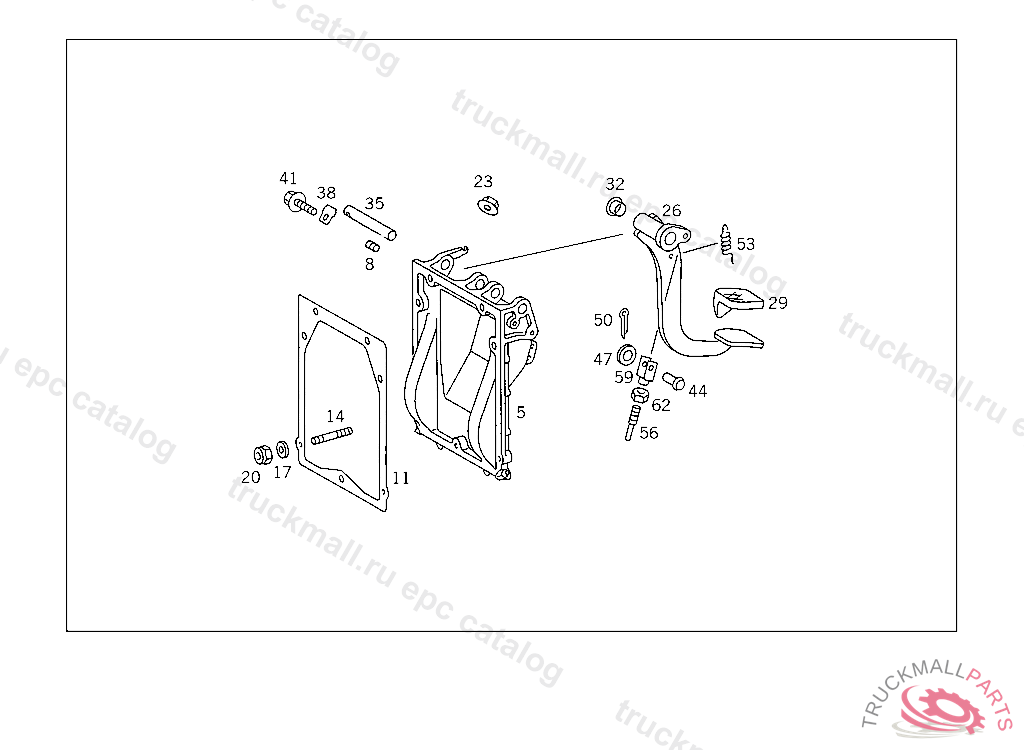

Поз.
Артикул
Описание
5
BEARING BRACKET (PEDAL BEARING BRACKET)
8
THREADED INSERT
11
GASKET BEARING BRACKET TO CAB
14
STUD
17
WASHER REAR FOGLAMP TO BRACKET
20
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
23
NUT BRACKET TO BRACKET
26
PEDAL BRAKE
29
PAD , Replaced By: A1072910182
32
BUSHING , Replaced By: A1242920050
35
PIN BRAKE PEDAL TO BEARING BRACKET
38
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
41
SCREW , Replaced By: N910105006023
44
PIN ROD TO BRAKE PEDAL
47
WASHER PULL ROD TO SHIFT LEVER
50
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
53
SPRING BRAKE PEDAL RELEASE SPRING
56
ROD TWO-CIRCUIT-BRAKE-VALVE CONTROL
59
YOKE OPERATING ROD
62
NUT CLUTCH PEDAL PISTON ROD
