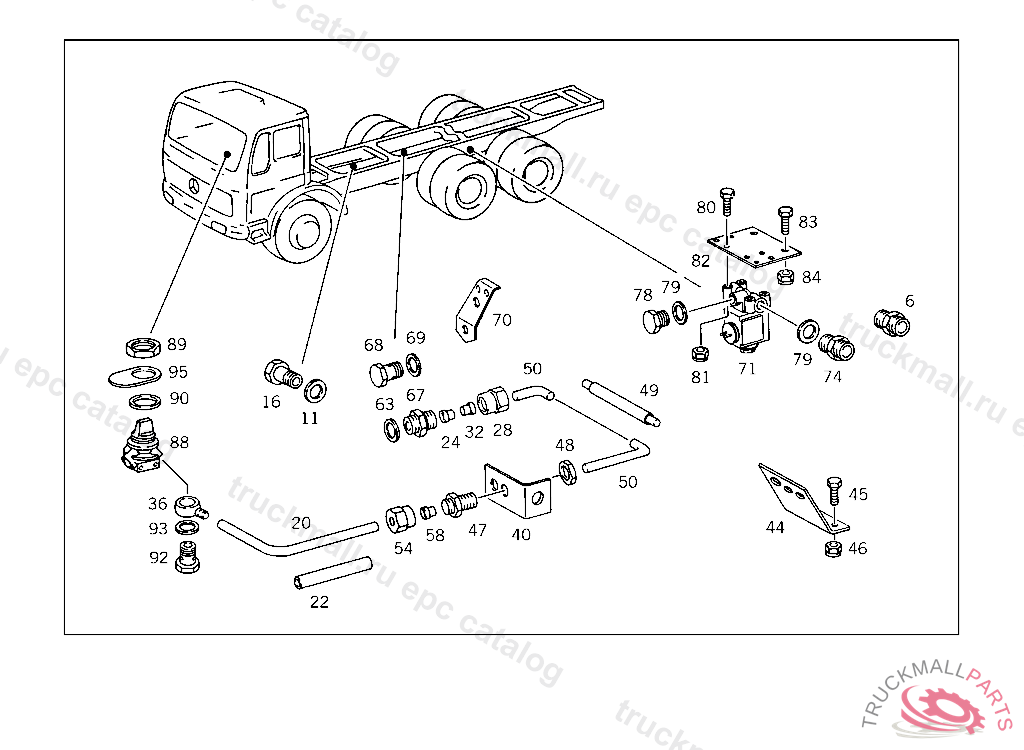

Поз.
Артикул
Описание
6
TS DOUBLE FITTING SOLENOID VALVE
11
SEAL RING LINE CONNECTION
16
HOLLOW SCREW LINE CONNECTION
20
PLASTIC PIPE RISING PIPE 4X6 MM
20
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
22
INSULATING HOSE RED, ORDER BY THE METER
24
SLEEVE LEAK LINE
28
UNION NUT
32
SEAL CONE
32
GLAND , Replaced By: A0019901667
36
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
36
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
40
BRACKET
44
BRACKET ,197582
45
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
45
SCREW , Replaced By: N304017008027
46
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
46
NUT , Replaced By: N913004008001
47
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
48
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
49
HOSE ,4 195522
50
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
54
UNION NUT
58
SEAL CONE
58
GLAND , Replaced By: A0019901667
63
SEAL RING LINE CONNECTION
67
TS DOUBLE FITTING SOLENOID VALVE
68
HOLLOW SCREW LINE CONNECTION
69
SEAL RING LINE CONNECTION
70
BRACKET LINE MOUNTING
71
VALVE P.T.O.
74
TS DOUBLE FITTING SOLENOID VALVE
78
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
78
SCREW PLUG , Replaced By: N000908012009
79
SEAL RING LINE CONNECTION
80
SCREW CONNECTOR
81
NUT PUMP TO BRACKET
81
NUT , Replaced By: N913004006001
82
BRACKET BRACKET TO CROSS MEMBER,197582
83
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
83
SCREW , Replaced By: N308676016006
83
SCREW PIPE CLAMP
83
SCREW , Replaced By: N304017008021
84
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
84
NUT , Replaced By: N913004008001
88
VALVE 3/2-WAY VOSS
88
VALVE 3/2-WAY KNORR
88
VALVE 3/2-WAY WABCO
88
VALVE 3/2-WAY BOSCH
89
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
90
WASHER AT TWO-WAY VALVE
92
HOLLOW SCREW LINE CONNECTION
93
SEAL RING PNEUMATIC VALVE
93
SEAL RING , Replaced By: N007603010110
95
UNIT IDENTIFICATION PLATE LONGITUDINAL DIFFERENTIAL LOCK
999
REPAIR KITHERION,94171034/0711/24V,94172034/0711
999
SEAL RING TOP WABCO
999
SPRING INSIDE WABCO
999
SEAL RING INSIDE WABCO
999
WASHER , Replaced By: N000125017016
999
WASHER BRACKET TO FRAME
